Product overview

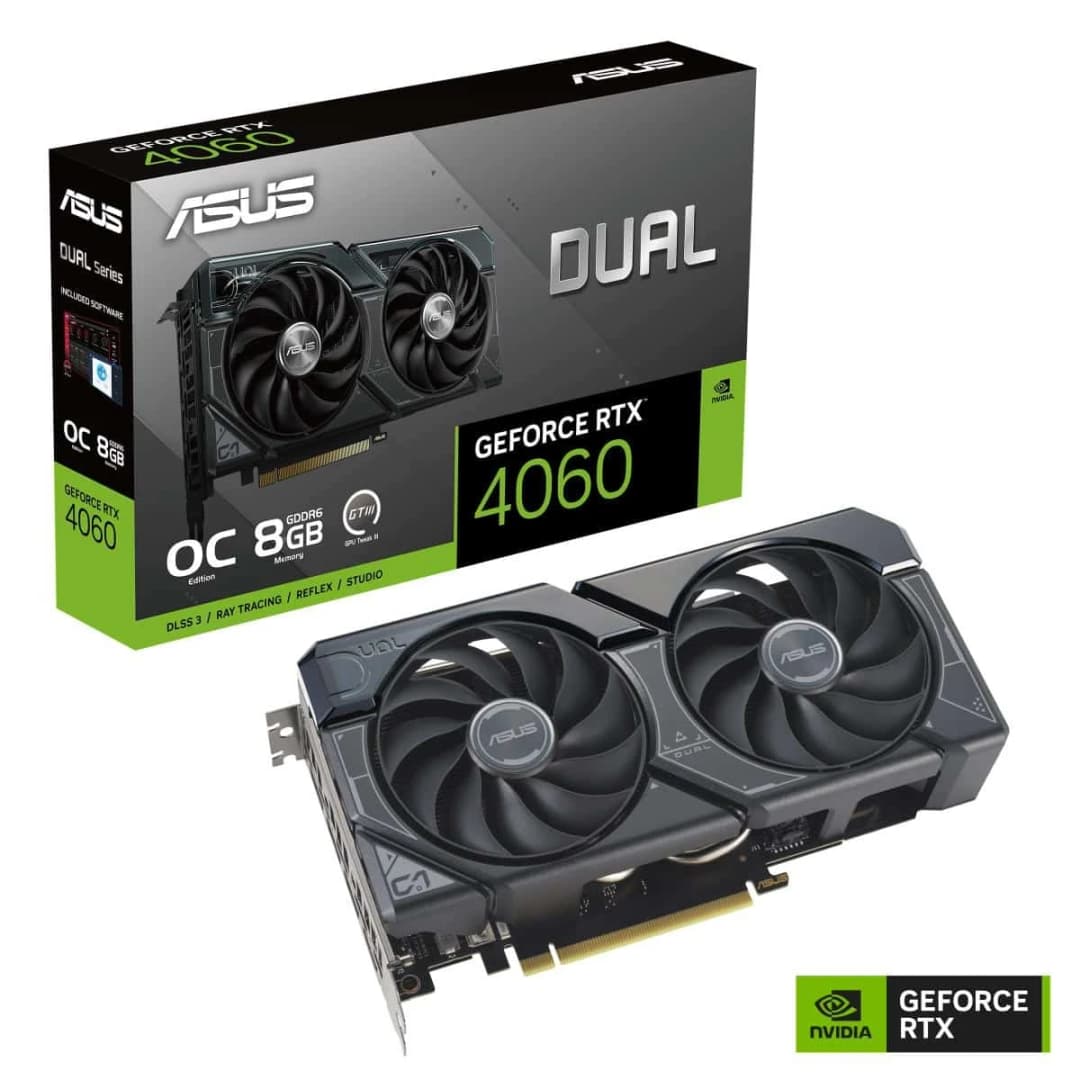

The ASUS Dual GeForce RTX 4060 OC Edition 8GB GDDR6 is a GeForce RTX 4060 graphics card with 8GB of GDDR6 memory on a 128-bit bus with a boost clock of 2535 MHz (OC mode) / 2505 MHz (default).
Key features
Display outputs are 3 × DisplayPort 1.4a, 1 × HDMI 2.1a.
Power is supplied through 1 × 8-pin, and the manufacturer recommends a 550W power supply. The card is 227.2 mm long. Memory runs at 17 Gbps in a 2.5-slot dual-fan design.
Technical specifications
- Model: DUAL-RTX4060-O8G
- GPU Model: GeForce RTX 4060
- VRAM: 8 GB
- Memory Type: GDDR6
- Memory Bus: 128-bit
- Outputs: 3 × DisplayPort 1.4a, 1 × HDMI 2.1a
- Power Connector: 1 × 8-pin
- Recommended PSU: 550 W
- Card Length: 227.2 mm
- Clock Speed: 2535 MHz (OC mode) / 2505 MHz (default)
- GPU Architecture: Ada Lovelace
- CUDA Cores / Stream Processors: 3072
- Slot Width: 2.5 slot
