Description

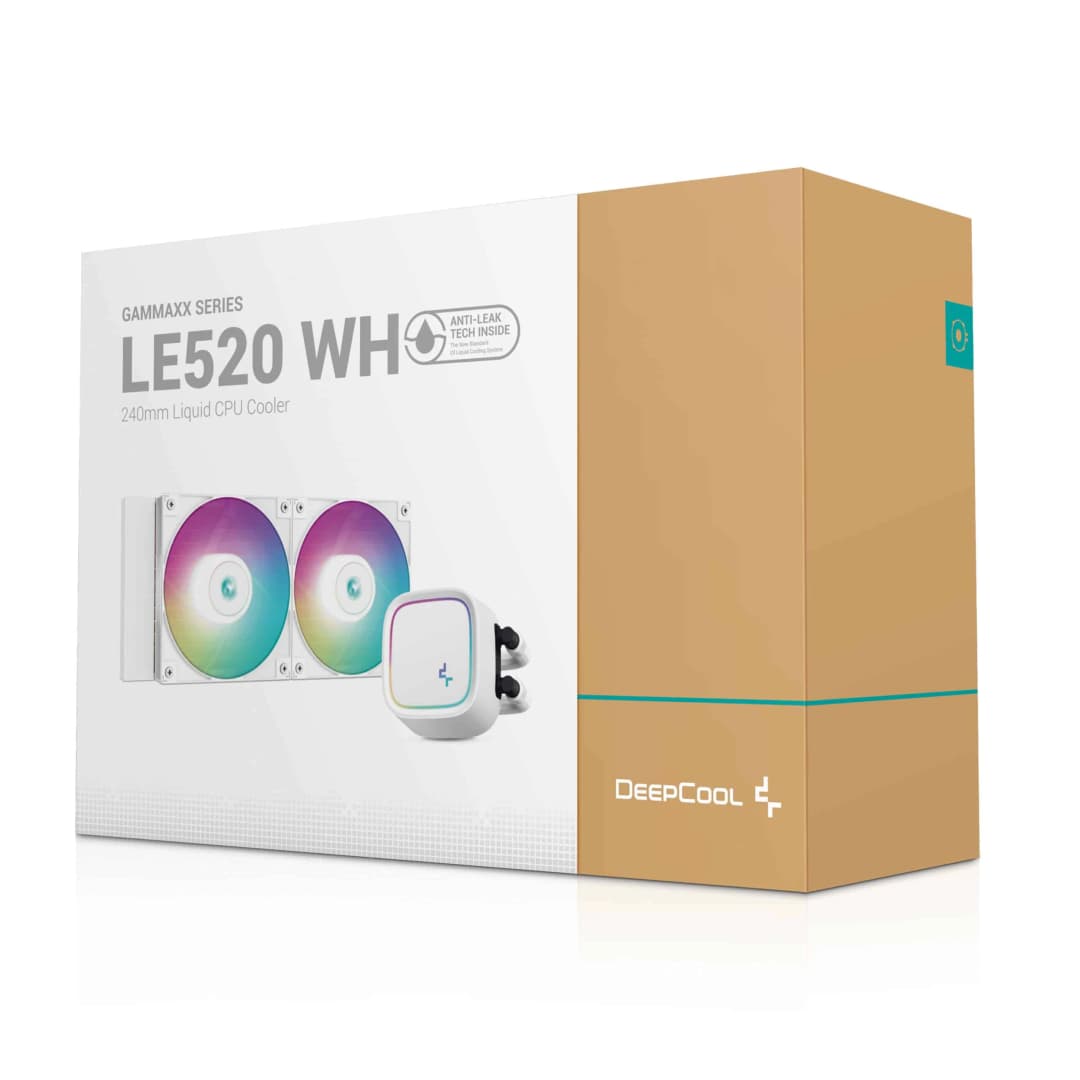

PRODUCT FEATURES DEEPCOOL LE520 WH PROCESSOR ALL-IN-ONE LIQUID COOLER 12 CM WHITE 1 PC(S)
- LE520 WH, LGA1700/1200/1151/1150/1155, AM5/AM4, 4-pin PWM, RGB LED, 1238 g
PRODUCTS DESCRIPTION DEEPCOOL R-LE520-WHAMMN-G-1
LE520 WH
The DeepCool LE520 WH is a white all-in-one liquid cooler that is equipped with new high-performance ARGB fans, thermal paste, and DeepCool’s new liquid cooler series design elements.
LE520 WH
White 240mm ARGB Liquid Cooler
POWERFUL HEAT DISSIPATION
Thanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 WH achieves excellent heat dissipation of 220W TDP.
NEW SERIES DESIGN
The LE520 WH features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases. Did we mention that it now comes in a frosty white color scheme
HIGH-PERFORMANCE ARGB FANS
The included high-performance ARGB fans are vibrant, bright, and support various motherboard synchronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.
ANTI-LEAK TECHNOLOGY
The LE520 WH liquid cooler features DeepCool’s patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure, this leads to a longer useful life while reducing the possibility of leaks.
SIMPLE AND SECURE
The installation is simple and compatible with the latest mainstream Intel and AMD processors.
| Performance | |
| Suitable location: | Processor |
| Type: | All-in-one liquid cooler |
| Fan diameter: | 12 cm |
| Supported processor sockets: | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow: | 85.85 cfm |
| Maximum air pressure: | 3.27 mmH2O |
| Pulse-width modulation (PWM) support: |  |
| Fan noise level (max): | 32.9 dB |
| Pump noise level: | 17.8 dB |
| Fan bearing technology: | Hydro bearing |
| Pump connector: | 3-pin |
| Quantity per pack: | 1 pc(s) |
| Pump motor speed: | 2400 RPM |
| Fan speed (min): | 500 RPM |
| Fan speed (max): | 2250 RPM |
| Design | |
| Product colour: | White |
| Radiator material: | Aluminum |
| Base plate material: | Copper |
| Number of fans: | 2 fan(s) |
| Number of fan blades: | 9 |
| Illumination LED: | |
| Illumination colour: | Multi |
| LED connector type: | 3-pin |
| Fan connector: | 4-pin |
| Power | |
| Fan power consumption: | 3 W |
| Pump power consumption: | 2.4 W |
| Thermal Design Power (TDP): | 220 W |
| LED voltage: | 5 V |
| Pump voltage: | 12 V |
| Pump current: | 0.2 mA |
| Fan voltage: | 12 V |
| Fan current: | 0.25 A |
| LED power consumption (fan): | 2.1 W |
| LED power consumption (pump): | 2.25 W |
| Weight & dimensions | |
| Radiator width: | 12 cm |
| Radiator depth: | 28.2 cm |
| Radiator height: | 2.7 cm |
| Tube length: | 41 cm |
| Pump width: | 9.1 cm |
| Pump depth: | 8 cm |
| Pump height: | 5.2 cm |
| Weight: | 1.24 kg |
| Fan dimensions (W x D x H): | 120 x 120 x 25 mm |
| Packaging content | |
| Package type: | Box |
| Mounting kit: | |
| Screws included: | |
| CPU bracket(s): | |
