GAMING PC Intel Core i5-14400F RTX 5060 Ti – GIGABYTE Gaming OC 16GB, 16GB DDR5 RAM, 500GB NVMe SSD

Powerful Gaming PC with Intel Core i5 and GIGABYTE RTX 5060 Ti 16GB Performance

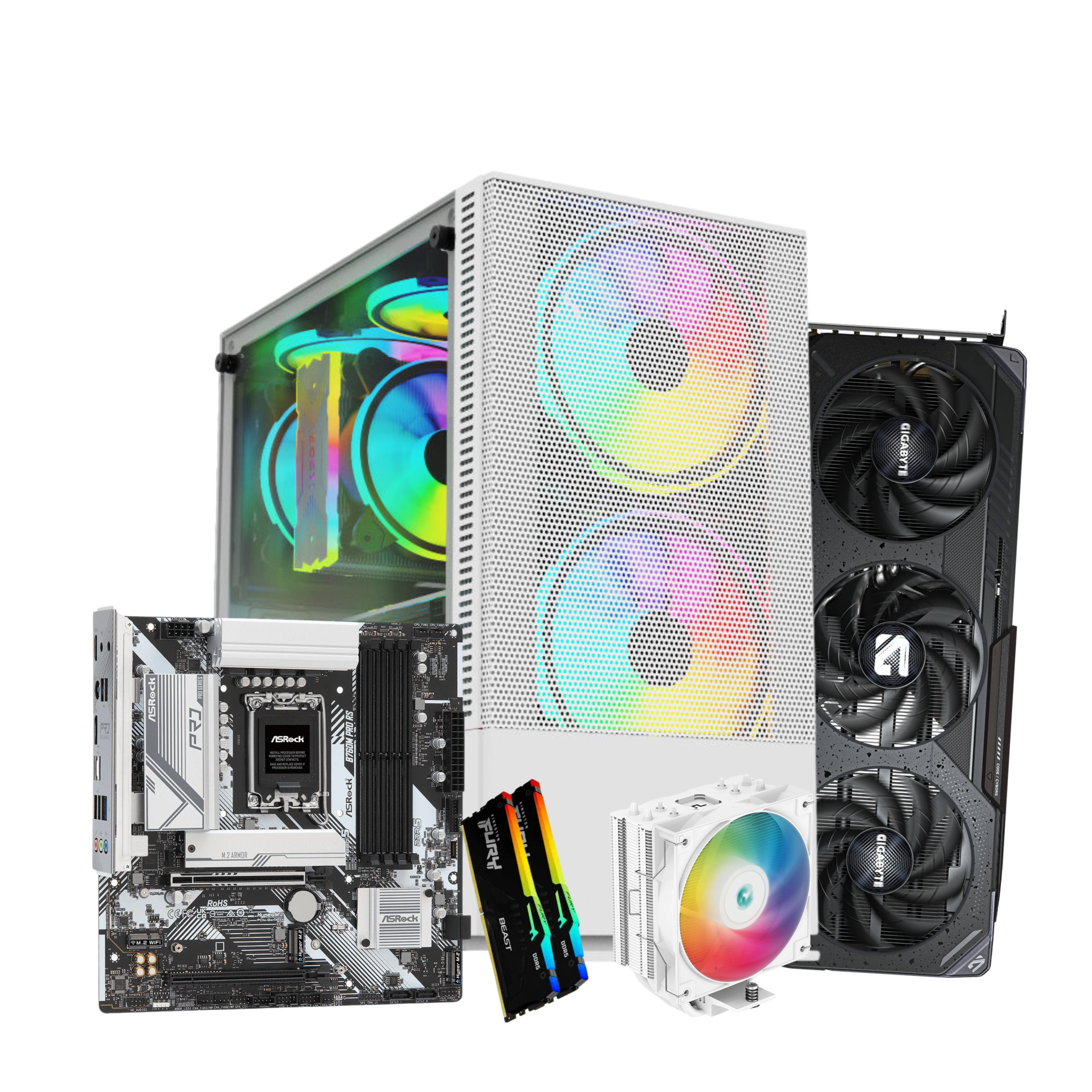

The GAMING PC Intel Core i5-14400F RTX 5060 Ti is a powerful and balanced gaming desktop built for users who want modern graphics performance, fast DDR5 memory, responsive NVMe storage, stable cooling, and a clean ARGB gaming design. This system combines a 14th Generation Intel Core processor, a GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G graphics card, 16GB Kingston FURY Beast DDR5 memory, a Kingston NV3 500GB NVMe SSD, a Thermalright KG-750 80 Plus Gold power supply, and a DeepCool AG400 CPU cooler.

This gaming PC is designed for smooth 1080p gaming, esports titles, online multiplayer games, daily work, school use, browsing, streaming, and multitasking. With a 16GB RTX 5060 Ti graphics card and DDR5 memory, this build gives users a strong modern platform for gaming and everyday performance while keeping the system reliable and upgrade-friendly.

Processor Performance

Intel Core i5-14400F – 10 Cores and 16 Threads

At the heart of this build is the Intel Core i5-14400F, a 14th Generation Intel Core desktop processor designed for strong gaming and everyday performance. It features 10 cores, including 6 Performance-cores and 4 Efficient-cores, with a total of 16 threads. This hybrid design helps the system handle games, launchers, Discord, web browsing, background apps, and productivity software smoothly.

The processor reaches up to 4.70GHz Max Turbo Frequency and includes 20MB Intel Smart Cache. It has a 65W processor base power and up to 148W maximum turbo power. Since this is an F-series processor, it does not include integrated graphics, making it ideal for a dedicated GPU gaming system like this RTX 5060 Ti build.

Graphics Card

GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G

Graphics performance is powered by the GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G. This graphics card is built on NVIDIA Blackwell architecture and supports DLSS 4, making it a strong choice for modern gaming, ray tracing, AI-enhanced graphics, and high-efficiency performance. It comes with 16GB GDDR7 memory, a 128-bit memory interface, 4608 CUDA cores, and a 28Gbps memory clock.

The GIGABYTE RTX 5060 Ti GAMING OC 16G features a factory core clock of 2647MHz, compared to the reference card clock of 2572MHz. It supports PCI Express 5.0, digital maximum resolution up to 7680 x 4320, and up to 4 displays. Display outputs include 3x DisplayPort 2.1b and 1x HDMI 2.1b.

WINDFORCE Cooling and Gaming OC Design

The GIGABYTE GAMING OC model uses the WINDFORCE cooling system with Hawk fan design, server-grade thermal conductive gel, RGB lighting, Dual BIOS with Performance and Silent modes, and a reinforced structure. This gives the card a strong cooling-focused design for gaming sessions while keeping the build reliable and visually clean.

Motherboard

ASRock B760M Pro RS

The system is built on the ASRock B760M Pro RS, a micro-ATX motherboard using the Intel B760 chipset and LGA1700 socket. It supports Intel 14th, 13th, and 12th Gen Core processors, making it a suitable match for the Intel Core i5-14400F.

This motherboard supports DDR5 dual-channel memory through 4 DDR5 DIMM slots, with memory support up to 7200+ MHz OC. It also includes a PCIe 5.0 x16 slot for the graphics card, 3 Hyper M.2 PCIe Gen4x4 sockets, 4 SATA3 ports, HDMI, DisplayPort, Realtek ALC897 7.1-channel audio, Nahimic Audio, and Dragon 2.5G LAN.

DDR5 Platform with Fast Expansion

The ASRock B760M Pro RS gives this gaming PC a modern DDR5 platform with strong expansion options. The PCIe 5.0 x16 slot supports modern graphics cards, while the three PCIe Gen4 M.2 sockets give the user room for future NVMe SSD upgrades. The 2.5G LAN connection is also useful for gaming, downloads, streaming, and daily online use.

Memory and Storage

16GB Kingston FURY Beast DDR5 5600MHz RAM – 2x8GB

This gaming PC includes 16GB Kingston FURY Beast DDR5 RAM, installed as 2x8GB. The memory is based on DDR5 technology and is rated at 5600MT/s. Kingston FURY Beast DDR5 supports Intel XMP 3.0, offering easier memory profile tuning on compatible systems.

DDR5 memory brings higher bandwidth and improved efficiency compared to older DDR4 platforms. This makes the system more responsive during gaming, multitasking, browsing, and daily use. Actual memory speed may depend on BIOS settings, XMP profile configuration, CPU memory controller support, and motherboard compatibility.

Kingston NV3 500GB NVMe SSD

Storage is handled by the Kingston NV3 500GB NVMe SSD, a PCIe 4.0 x4 NVMe drive in the M.2 2280 form factor. The 500GB model is listed with sequential speeds up to 5,000MB/s read and 3,000MB/s write, giving the system fast Windows boot times, quick software launches, and shorter game loading screens.

The NV3 500GB SSD also offers 160TBW endurance and a compact single-sided M.2 design. It is a practical storage choice for Windows, drivers, essential programs, and selected games.

Cooling and Power

DeepCool AG400 CPU Cooler

The processor is cooled by the DeepCool AG400, a single-tower CPU air cooler with a 120mm PWM fan and four 6mm heat pipes. The AG400 is listed with fan speed from 500 to 2000 RPM, airflow up to 75.89 CFM, air pressure of 2.53 mmAq, and noise level up to 31.6 dB(A).

This cooler is a strong and reliable option for the Intel Core i5-14400F, helping the system maintain stable temperatures during gaming, multitasking, and long daily sessions.

Thermalright KG-750 750W 80 Plus Gold PSU

Power is supplied by the Thermalright KG-750 750W 80 Plus Gold power supply. It is listed with 750W wattage, 80 Plus Gold efficiency, full-modular cabling, 100–240Vac input voltage, a 120mm fan, and protection features including OPP, OVP, OTP, OCP, SCP, and UVP.

A 750W Gold-rated power supply is a strong match for this configuration, especially because the GIGABYTE RTX 5060 Ti GAMING OC 16G officially recommends a 650W PSU. The extra wattage headroom helps support the processor, graphics card, motherboard, NVMe SSD, CPU cooler, and case fans.

Case and ARGB Design

Thermaltake ARGB Case with 5 Fans

The build is completed inside a Thermaltake ARGB gaming case with 5 fans. The case gives the PC a modern gaming appearance with RGB lighting and strong airflow for daily use. The 5-fan setup helps move air through the system to support the CPU cooler, graphics card, motherboard, SSD, and power supply during gaming sessions.

Since the exact Thermaltake case model was not provided, the safest product-page wording is Thermaltake ARGB Case with 5 Fans without adding model-specific claims such as exact dimensions, radiator support, glass panel type, or front I/O layout.

Full Specifications

Processor – CPU

• Model: Intel Core i5-14400F
• Generation: 14th Generation Intel Core
• Cores: 10 Cores
• Performance-Cores: 6
• Efficient-Cores: 4
• Threads: 16 Threads
• Max Turbo Frequency: Up to 4.70GHz
• Cache: 20MB Intel Smart Cache
• Processor Base Power: 65W
• Maximum Turbo Power: 148W
• Integrated Graphics: No integrated graphics

Graphics Card – GPU

• Model: GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G
• GPU: NVIDIA GeForce RTX 5060 Ti
• Architecture: NVIDIA Blackwell
• CUDA Cores: 4608
• Memory: 16GB GDDR7
• Memory Clock: 28Gbps
• Memory Bus: 128-bit
• Core Clock: 2647MHz
• Interface: PCI Express 5.0
• Digital Max Resolution: 7680 x 4320
• Multi-View: 4 Displays
• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Power Connector: 1x 8-pin
• Recommended PSU: 650W
• Card Size: 281 x 119 x 40 mm
• Cooling: WINDFORCE cooling system

Motherboard

• Model: ASRock B760M Pro RS
• Chipset: Intel B760
• Socket: LGA1700
• CPU Support: Intel 14th, 13th, and 12th Gen Core processors
• Power Design: 7+1+1 Power Phase, Dr.MOS
• Memory Support: 4x DDR5 DIMM slots
• Memory Speed: Up to DDR5 7200+ OC
• GPU Slot: 1x PCIe 5.0 x16
• Storage: 3x Hyper M.2 PCIe Gen4x4, 4x SATA3
• Network: Dragon 2.5G LAN
• Audio: Realtek ALC897 7.1-channel HD Audio, Nahimic Audio
• Display Outputs: HDMI, DisplayPort
• Form Factor: Micro-ATX

Memory – RAM

• Brand: Kingston
• Series: Kingston FURY Beast DDR5
• Capacity: 16GB
• Configuration: 2x8GB
• Speed: DDR5-5600
• Latency: CL40
• Voltage: 1.25V XMP Profile
• Feature: Intel XMP 3.0 support

Storage

• Model: Kingston NV3
• Capacity: 500GB
• Type: NVMe SSD
• Interface: PCIe 4.0 x4 NVMe
• Form Factor: M.2 2280
• Sequential Read: Up to 5,000MB/s
• Sequential Write: Up to 3,000MB/s
• Endurance: 160TBW

Power Supply

• Model: Thermalright KG-750
• Wattage: 750W
• Efficiency: 80 Plus Gold
• Modular Design: Full-Modular
• Input Voltage: 100–240Vac
• Fan Size: 120mm
• MTBF: More than 100,000 hours
• Warranty: 5 Years
• Protections: OPP / OVP / OTP / OCP / SCP / UVP

CPU Cooler

• Model: DeepCool AG400
• Type: Single-tower air cooler
• Fan Size: 120mm
• Heat Pipes: 4 x 6mm heat pipes
• Fan Speed: 500–2000 RPM
• Airflow: Up to 75.89 CFM
• Air Pressure: 2.53 mmAq
• Noise Level: Up to 31.6 dB(A)

Case

• Brand: Thermaltake
• Style: ARGB Gaming Case
• Fans: 5 Fans

Why Choose This Gaming PC?

The GAMING PC Intel Core i5-14400F RTX 5060 Ti is a strong choice for gamers who want a modern gaming desktop with 16GB graphics memory, DDR5 RAM, fast NVMe storage, reliable cooling, and a clean ARGB design. The combination of Intel Core i5 processing power and GIGABYTE RTX 5060 Ti GAMING OC 16G graphics gives this build the performance needed for smooth gaming, multitasking, and everyday productivity.

With a GIGABYTE GAMING OC graphics card, ASRock B760 DDR5 motherboard, Kingston FURY Beast DDR5 memory, Kingston NV3 SSD, Thermalright Gold-rated power supply, and DeepCool AG400 cooling, this PC delivers a strong balance of speed, reliability, and gaming style for users who want a ready gaming desktop built with trusted components.
