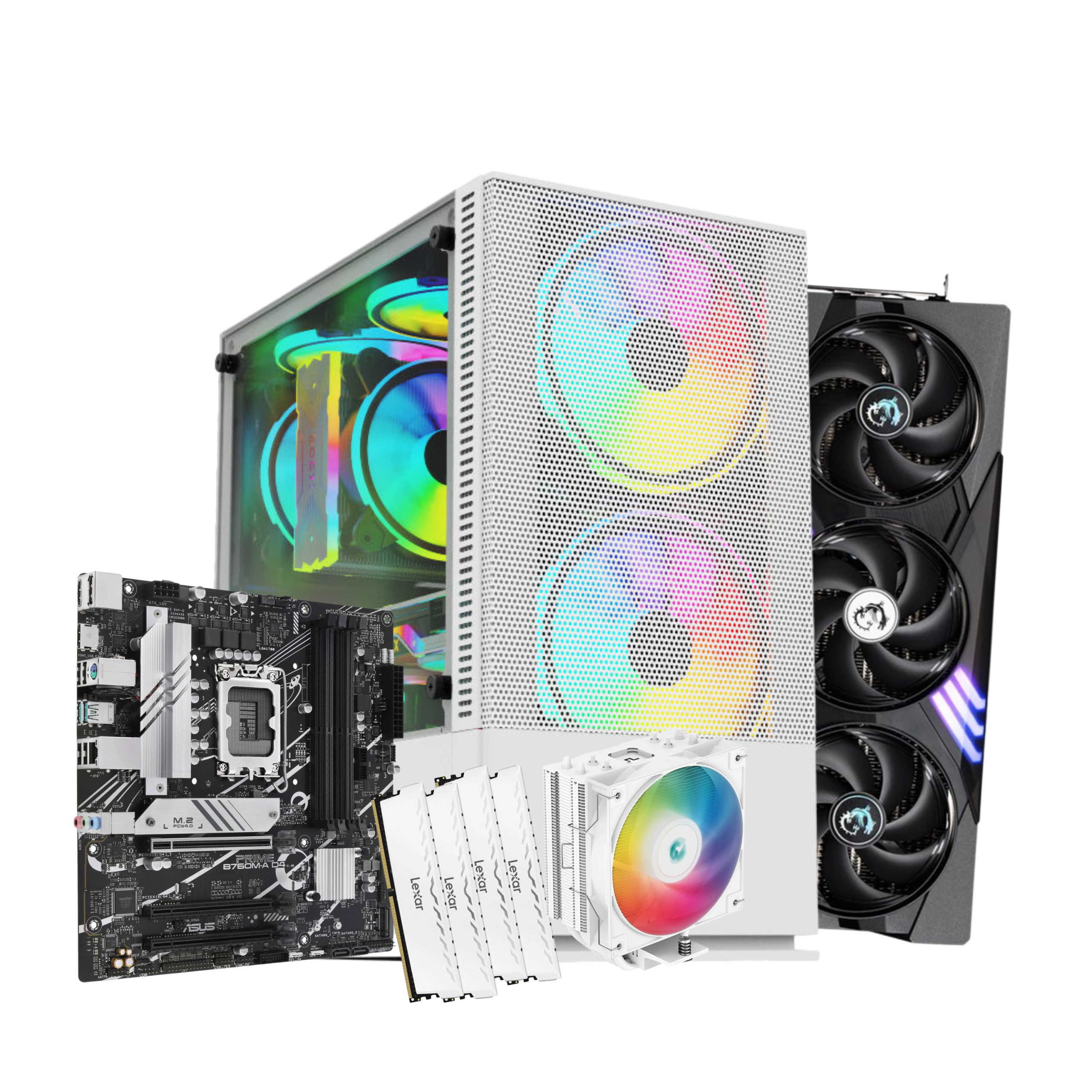

GAMING PC Intel Core i5-14400F RTX 5060 Ti – MSI Gaming Trio 8GB, 32GB DDR4 RAM, 1TB NVMe SSD
Powerful Gaming PC with Intel Core i5 and MSI RTX 5060 Ti Performance
The GAMING PC Intel Core i5-14400F RTX 5060 Ti is a powerful and well-balanced desktop built for gamers who want strong performance, fast storage, reliable cooling, and a clean ARGB gaming design. This system combines a 14th Generation Intel Core processor, an MSI GeForce RTX 5060 Ti 8G GAMING TRIO graphics card, 32GB dual-channel DDR4 memory, a Kingston NV3 1TB NVMe SSD, a Thermalright 650W 80 Plus Gold power supply, and a DeepCool AG400 air cooler.
This gaming PC is designed for smooth 1080p gaming, esports titles, online multiplayer games, content creation, streaming, school work, office use, browsing, and multitasking. With 32GB of RAM and a fast 1TB NVMe SSD, this build gives users more memory and storage headroom compared to entry-level gaming systems, making it a strong choice for gamers who want speed, reliability, and upgrade-friendly performance.
Processor Performance
Intel Core i5-14400F – 10 Cores and 16 Threads
At the heart of this gaming PC is the Intel Core i5-14400F, a 14th Generation Intel Core desktop processor designed for strong gaming and everyday performance. It features 10 cores, including 6 Performance-cores and 4 Efficient-cores, with a total of 16 threads. This hybrid design helps the system handle modern games, web browsing, game launchers, Discord, background apps, and productivity software smoothly.
The processor reaches up to 4.70GHz Max Turbo Frequency and includes 20MB Intel Smart Cache. It has a 65W processor base power and up to 148W maximum turbo power. Since this is an F-series processor, it does not include integrated graphics, making it ideal for a dedicated GPU gaming system like this MSI RTX 5060 Ti build.
Graphics Card
MSI GeForce RTX 5060 Ti 8G GAMING TRIO
Graphics performance is powered by the MSI GeForce RTX 5060 Ti 8G GAMING TRIO. This graphics card is built around the NVIDIA GeForce RTX 5060 Ti GPU and uses 8GB GDDR7 memory, a 128-bit memory bus, and 4608 CUDA cores. It is designed for modern gaming, AI-enhanced graphics, ray tracing, and high-efficiency performance.
The MSI RTX 5060 Ti GAMING TRIO supports PCI Express Gen 5 x16 while using x8 lanes, memory speed of 28Gbps, and a boost clock up to 2572MHz. It also supports a digital maximum resolution up to 7680 x 4320 and up to 4 displays, making it suitable for modern gaming monitors and multi-monitor setups.
TRI FROZR 4 Cooling Design
The MSI GAMING TRIO model uses the upgraded TRI FROZR 4 thermal design, built to improve cooling and quieter operation. It includes MSI STORMFORCE Fan design, a metal backplate, airflow-focused cooling structure, and thermal design improvements that help keep the graphics card stable during gaming sessions.
Motherboard
ASUS PRIME B760M-A D4
The system is built on the ASUS PRIME B760M-A D4, a micro-ATX motherboard using the Intel B760 chipset and LGA1700 socket. It supports Intel 14th, 13th, and 12th Gen Core processors, making it a suitable match for the Intel Core i5-14400F.
This motherboard supports 4 DDR4 DIMM slots with up to 128GB memory capacity, dual-channel memory architecture, and Intel XMP support. It also includes two PCIe 4.0 M.2 slots, four SATA 6Gb/s ports, Realtek 2.5Gb Ethernet, DisplayPort, dual HDMI outputs, USB 3.2 Gen 2 rear ports, front USB Type-C support, Aura Sync, and ASUS protection features.
Stable ASUS Platform for Gaming
The ASUS PRIME B760M-A D4 gives this gaming PC a reliable and practical platform. It offers better storage expansion than entry-level boards, faster wired networking through 2.5Gb Ethernet, and DDR4 support for strong performance with good value. Its micro-ATX form factor also makes it suitable for many gaming cases while still offering multiple expansion and storage options.
Memory and Storage
32GB Lexar THOR DDR4 RAM – 4x8GB
This gaming PC includes 32GB Lexar THOR DDR4 RAM, installed as 4x8GB. This gives the system more memory capacity for modern games, multitasking, browser tabs, content creation tools, streaming software, and daily workloads. Compared to 16GB systems, 32GB gives more headroom for users who keep multiple applications open while gaming.
Lexar THOR DDR4 memory supports Intel XMP 2.0 and uses a premium aluminum heat spreader designed to improve airflow and heat dissipation. The RAM is listed as 3600MHz, and the ASUS PRIME B760M-A D4 supports DDR4 3600MHz as an overclocked memory speed. Actual memory speed may depend on BIOS settings, CPU memory controller support, and compatibility when using four memory sticks.
Kingston NV3 1TB NVMe SSD
Storage is handled by the Kingston NV3 1TB NVMe SSD, a PCIe 4.0 x4 NVMe drive in the M.2 2280 form factor. The 1TB model is listed with sequential speeds up to 6,000MB/s read and 4,000MB/s write, giving the system fast Windows boot times, quick game loading, smooth software launches, and strong everyday responsiveness.
The 1TB capacity gives practical space for Windows, drivers, game launchers, applications, documents, and multiple modern games. It is a strong storage choice for gamers who want both speed and capacity in one drive.
Cooling and Power
DeepCool AG400 CPU Cooler
The processor is cooled by the DeepCool AG400, a single-tower air cooler with a 120mm PWM fan and four 6mm heat pipes. The AG400 is listed with fan speed from 500 to 2000 RPM, airflow up to 75.89 CFM, air pressure of 2.53 mmAq, and noise level up to 31.6 dB(A).
This cooler is a strong and reliable option for the Intel Core i5-14400F. It helps maintain stable temperatures during gaming, multitasking, and long daily use while keeping the build clean and practical.
Thermalright TG-650 650W 80 Plus Gold White PSU
Power is supplied by the Thermalright TG-650 650W 80 Plus Gold White power supply. It is listed with 650W wattage, 80 Plus Gold efficiency, full-modular cabling, 100–240Vac input voltage, a 120mm fan, and protection features including OPP, OVP, OTP, OCP, SCP, and UVP.
A 650W Gold-rated power supply is a suitable choice for this configuration, giving stable power for the Intel Core i5 processor, MSI RTX 5060 Ti graphics card, ASUS B760 motherboard, NVMe SSD, CPU cooler, and case fans.
Case and ARGB Design
Thermaltake ARGB Case with 5 Fans
The build is completed inside a Thermaltake ARGB gaming case with 5 fans. The case gives the PC a modern gaming appearance with RGB lighting and strong airflow for daily use. The 5-fan setup helps move air through the system to support the CPU cooler, graphics card, motherboard, SSD, and power supply during gaming sessions.
Since the exact Thermaltake case model was not provided, the safest product-page wording is Thermaltake ARGB Case with 5 Fans without adding model-specific claims such as exact dimensions, radiator support, glass panel type, or front I/O layout.
Full Specifications
Processor – CPU
Model: Intel Core i5-14400F
Generation: 14th Generation Intel Core
Cores: 10 Cores
Threads: 16 Threads
Max Turbo Frequency: Up to 4.70GHz
Cache: 20MB Intel Smart Cache
Processor Base Power: 65W
Maximum Turbo Power: 148W
Integrated Graphics: No integrated graphics
Graphics Card – GPU
Model: MSI GeForce RTX 5060 Ti 8G GAMING TRIO
GPU: NVIDIA GeForce RTX 5060 Ti
CUDA Cores: 4608
Memory: 8GB GDDR7
Memory Speed: 28Gbps
Memory Bus: 128-bit
Interface: PCI Express Gen 5 x16, uses x8
Core Clock: Boost up to 2572MHz
Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
Power Consumption: 180W
Power Connector: 1x 16-pin
Recommended PSU: 600W
Card Dimensions: 300 x 125 x 44 mm
Motherboard
Model: ASUS PRIME B760M-A D4
Chipset: Intel B760
Socket: LGA1700
CPU Support: Intel 14th, 13th, and 12th Gen Core processors
Memory Support: 4x DDR4 DIMM slots, up to 128GB
Memory Features: Dual-channel architecture, Intel XMP support
Storage: 2x PCIe 4.0 M.2 slots, 4x SATA 6Gb/s ports
Network: Realtek 2.5Gb Ethernet
Display Outputs: 1x DisplayPort, 2x HDMI
Rear USB: 2x USB 3.2 Gen 2 Type-A, 4x USB 2.0 Type-A
Form Factor: Micro-ATX
Memory – RAM
Brand: Lexar
Series: THOR DDR4
Capacity: 32GB
Configuration: 4x8GB
Listed Speed: 3600MHz
Feature: Intel XMP 2.0 support
Design: Aluminum heat spreader
Storage
Model: Kingston NV3
Capacity: 1TB
Type: NVMe SSD
Interface: PCIe 4.0 x4 NVMe
Form Factor: M.2 2280
Sequential Read: Up to 6,000MB/s
Sequential Write: Up to 4,000MB/s
Endurance: 320TBW
Power Supply
Model: Thermalright TG-650 White
Wattage: 650W
Efficiency: 80 Plus Gold
Modular Design: Full-Modular
Fan Size: 120mm
Input Voltage: 100–240Vac
Protections: OPP / OVP / OTP / OCP / SCP / UVP
CPU Cooler
Model: DeepCool AG400
Type: Single-tower air cooler
Fan Size: 120mm
Heat Pipes: 4 x 6mm heat pipes
Fan Speed: 500–2000 RPM
Airflow: Up to 75.89 CFM
Air Pressure: 2.53 mmAq
Noise Level: Up to 31.6 dB(A)
Case
Brand: Thermaltake
Style: ARGB Gaming Case
Fans: 5 Fans
Why Choose This Gaming PC?
The GAMING PC Intel Core i5-14400F RTX 5060 Ti is a strong choice for gamers who want a balanced desktop with modern graphics, fast storage, 32GB memory, reliable cooling, and a clean ARGB look. The combination of Intel Core i5 processing power and MSI RTX 5060 Ti graphics gives this build the performance needed for smooth gaming, multitasking, and everyday productivity.
With an MSI GAMING TRIO graphics card, ASUS B760 DDR4 motherboard, 32GB Lexar THOR memory, Kingston NV3 1TB NVMe SSD, Thermalright Gold-rated power supply, and DeepCool AG400 cooling, this PC delivers a strong balance of speed, reliability, and gaming style for users who want a ready gaming desktop built with trusted components.
