Product overview

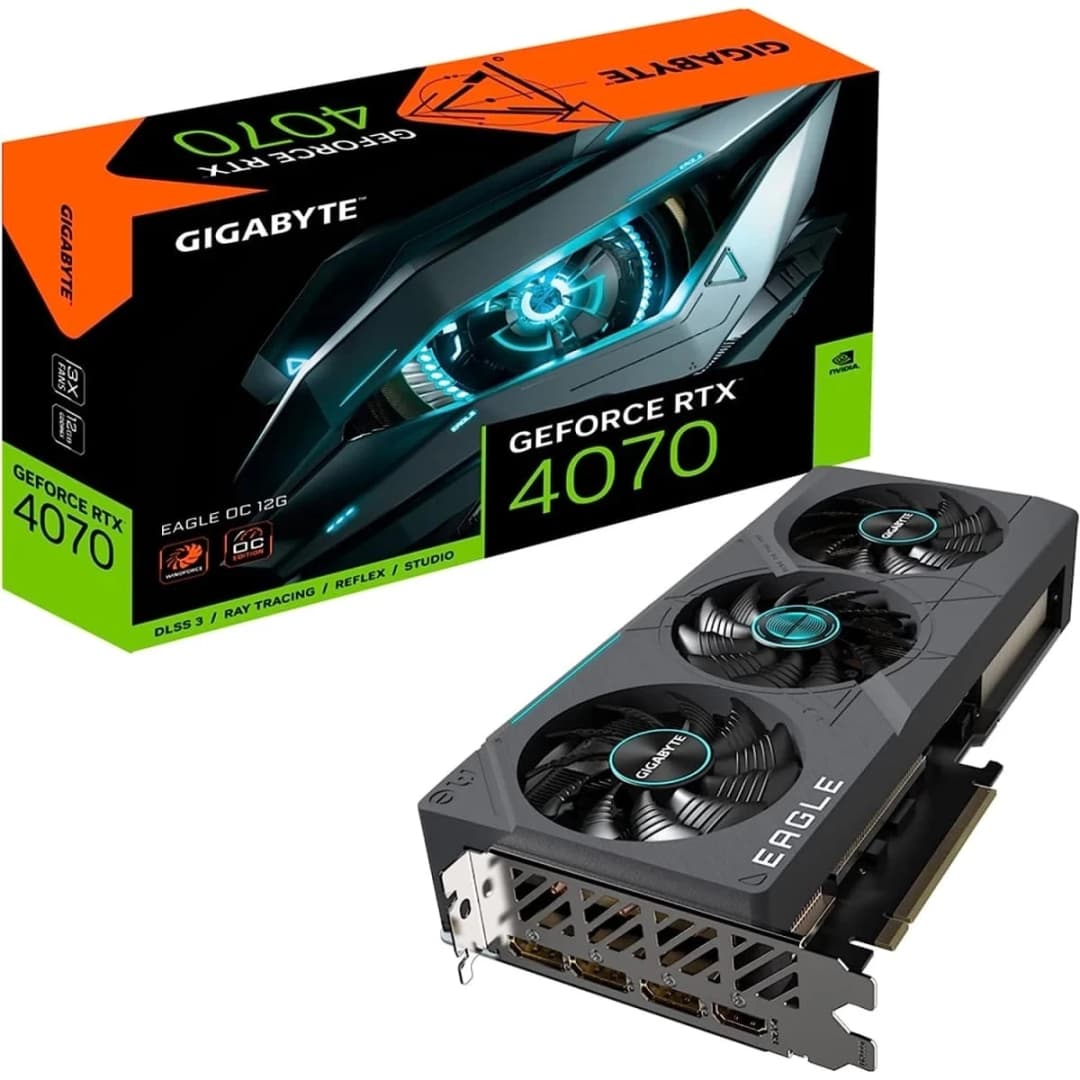

The GIGABYTE GeForce RTX 4070 EAGLE OC 12G GDDR6X is a GeForce RTX 4070 graphics card with 12GB of GDDR6X memory on a 192-bit bus with a boost clock of 2505 MHz.
Key features
It connects over PCIe 4.0. Display outputs are 3 × DisplayPort 1.4a, 1 × HDMI 2.1a.
Power is supplied through 1 × 8-pin, and the manufacturer recommends a 650W power supply. The card is 261 mm long. It uses a WINDFORCE triple-fan cooler.
Technical specifications
- Model: GV-N4070EAGLE OC-12GD
- GPU Model: GeForce RTX 4070
- VRAM: 12 GB
- Memory Type: GDDR6X
- Memory Bus: 192-bit
- Outputs: 3 × DisplayPort 1.4a, 1 × HDMI 2.1a
- Power Connector: 1 × 8-pin
- Recommended PSU: 650 W
- Card Length: 261 mm
- Clock Speed: 2505 MHz
- Bus Interface: PCIe 4.0
- GPU Architecture: Ada Lovelace
- CUDA Cores / Stream Processors: 5888
