No longer available

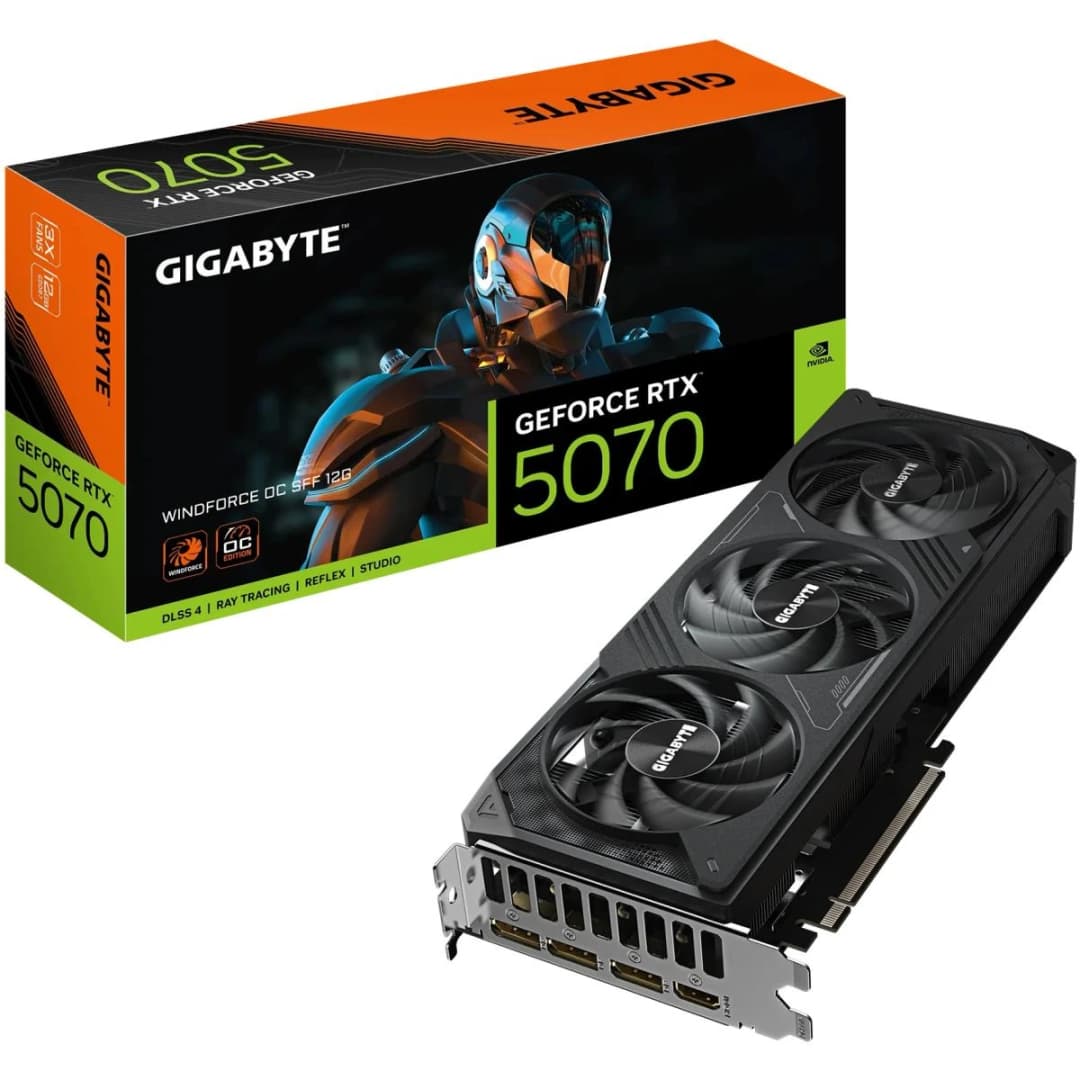

GIGABYTE GeForce RTX 5070 WINDFORCE OC SFF 12G GDDR7
WHITE ANGEL COMPUTER no longer sells this product. Its specifications and photos stay here for reference.
Specifications
| Model | GV-N5070WF3OC-12GD |
|---|---|
| GPU Model | GeForce RTX 5070 |
| GPU Architecture | Blackwell |
| CUDA Cores / Stream Processors | 6144 |
| Boost Clock | 2542 MHz |
| VRAM | 12 GB |
| Memory Type | GDDR7 |
| Memory Bus | 192-bit |
| Bus Interface | PCIe 5.0 |
| Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
| Maximum Resolution | 7680×4320 (8K UHD) |
| Recommended PSU | 750 W |
| Power Connector | 1 × 16-pin |
| Cooling | WINDFORCE Triple Fan |
| Card Length | 282 mm |
| Card Dimensions | SFF-Compatible Form Factor |
Original listing description
The text below is the description from when this product was on sale; prices, stock and delivery details in it no longer apply.
Product overview
The GIGABYTE GeForce RTX 5070 WINDFORCE OC SFF 12G GDDR7 is a GeForce RTX 5070 graphics card with 12GB of GDDR7 memory on a 192-bit bus with a boost clock of 2542 MHz.
Key features
It connects over PCIe 5.0. Display outputs are 3 × DisplayPort 2.1b, 1 × HDMI 2.1b.
Power is supplied through 1 × 16-pin, and the manufacturer recommends a 750W power supply. The card is 282 mm long. The SFF-ready WINDFORCE cooler measures 282 × 110 × 50 mm.
Technical specifications
- Model: GV-N5070WF3OC-12GD
- GPU Model: GeForce RTX 5070
- VRAM: 12 GB
- Memory Type: GDDR7
- Memory Bus: 192-bit
- Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
- Power Connector: 1 × 16-pin
- Recommended PSU: 750 W
- Card Length: 282 mm
- Clock Speed: 2542 MHz
- Bus Interface: PCIe 5.0
- GPU Architecture: Blackwell
- CUDA Cores / Stream Processors: 6144
