Product overview

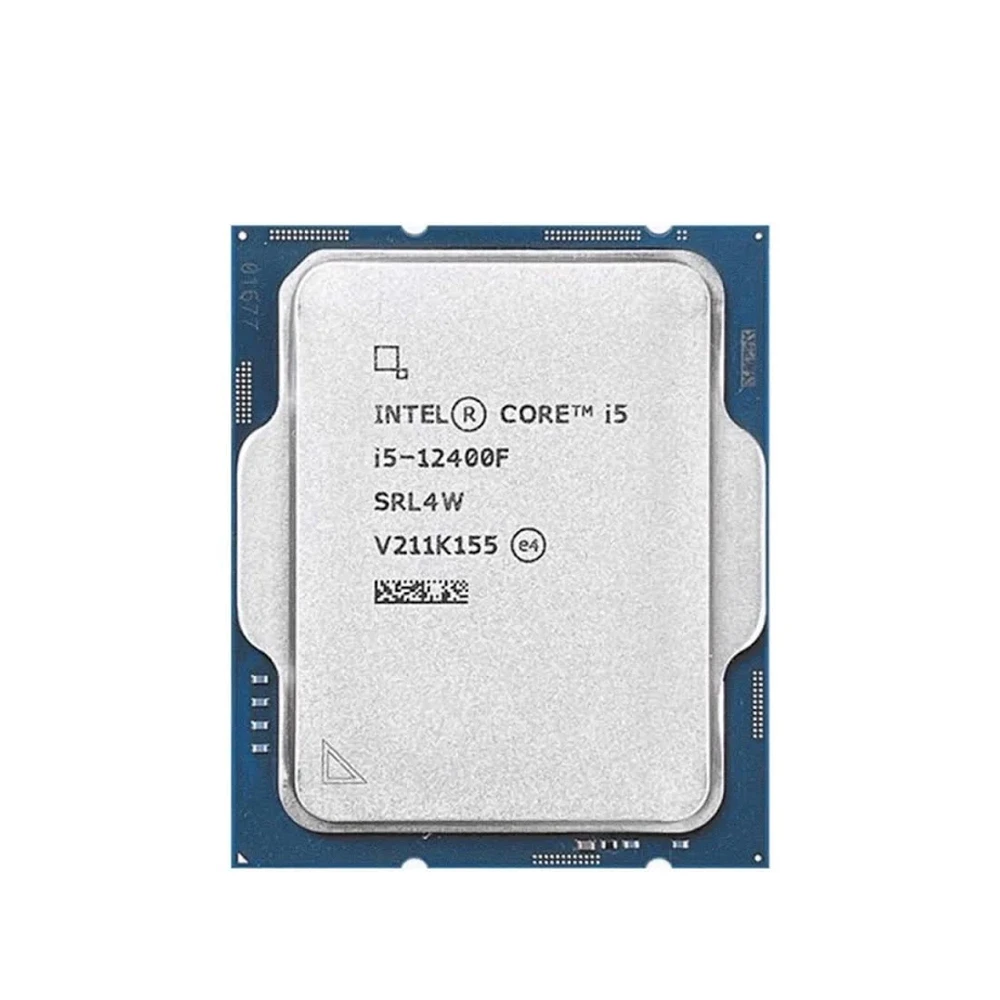

The Intel Core i5-12400F is a 12th Gen Core (Alder Lake) desktop processor for LGA 1700 motherboards, with 6 Performance-cores (6 cores in total) and 12 threads.

Key features

Intel rates it at up to 4.4 GHz max turbo with a 2.5 GHz base clock, backed by 18 MB Intel Smart Cache, at 65 W processor base power and up to 117 W maximum turbo power.

It supports DDR5 up to 4800 MT/s or DDR4 up to 3200 MT/s memory. It has no integrated graphics, so a dedicated graphics card is required.

This is the tray version: it ships without a retail box or CPU cooler, so plan for a separate cooler.

Technical specifications

• Processor Family: Intel Core i5
• Model: Core i5-12400F
• Socket: LGA 1700
• Cores: 6
• Threads: 12
• Clock Speed: 2.5 GHz base / up to 4.4 GHz max turbo
• Integrated Graphics: No
• Included Cooler: No
• Cache: 18 MB Intel Smart Cache
• Base Power: 65 W
• Generation: 12th Gen Core (Alder Lake)
• Memory Support: Up to DDR5 4800 MT/s; Up to DDR4 3200 MT/s
• PCIe Version: PCIe 5.0 and 4.0
