Product overview

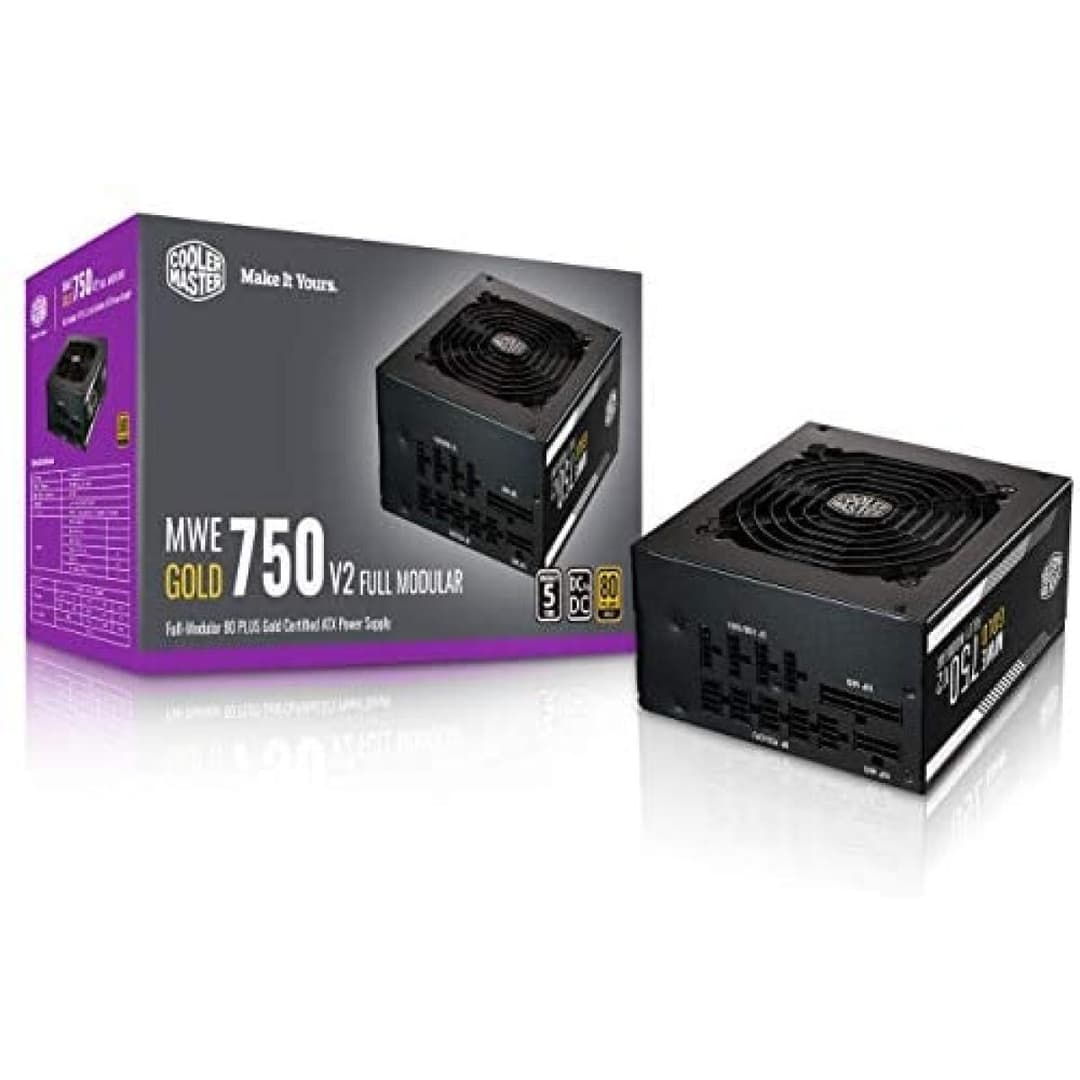

The Cooler Master MWE Gold 750 V2 Full Modular is a 750W ATX power supply rated 80 PLUS Gold (90% at typical load), with fully modular cables.
Key features
It provides four 6+2-pin PCIe connectors, one 4+4-pin and one 8-pin EPS CPU connector, and a 120mm HDB fan.
Technical specifications
- Model: MWE Gold 750 V2 Full Modular
- Wattage: 750 W
- Efficiency: 80 PLUS Gold
- Modularity: Fully modular
- Form Factor: ATX
- GPU Power Connectors: 4 × 6+2-pin
- CPU Power Connectors: 1 × EPS 4+4-pin, 1 × EPS 8-pin
- ATX Standard: ATX 2.x
- SATA Connectors: 12
- Fan Size: 120 mm
- Protections: UVP / OVP / OPP / OTP / SCP / OCP
Power
| Model | MWE Gold 750 V2 Full Modular |
|---|---|
| Wattage | 750 W |
| Efficiency | 80 PLUS Gold |
| ATX Standard | ATX 2.x |
| Form Factor | ATX |
Cables & connectors
| Modularity | Fully modular |
|---|---|
| GPU Power Connectors | 4 × 6+2-pin |
| CPU Power Connectors | 1 × EPS 4+4-pin, 1 × EPS 8-pin |
| SATA Connectors | 12 |
Cooling & protection
| Fan Size | 120 mm |
|---|---|
| Protections | UVP / OVP / OPP / OTP / SCP / OCP |
