Product overview

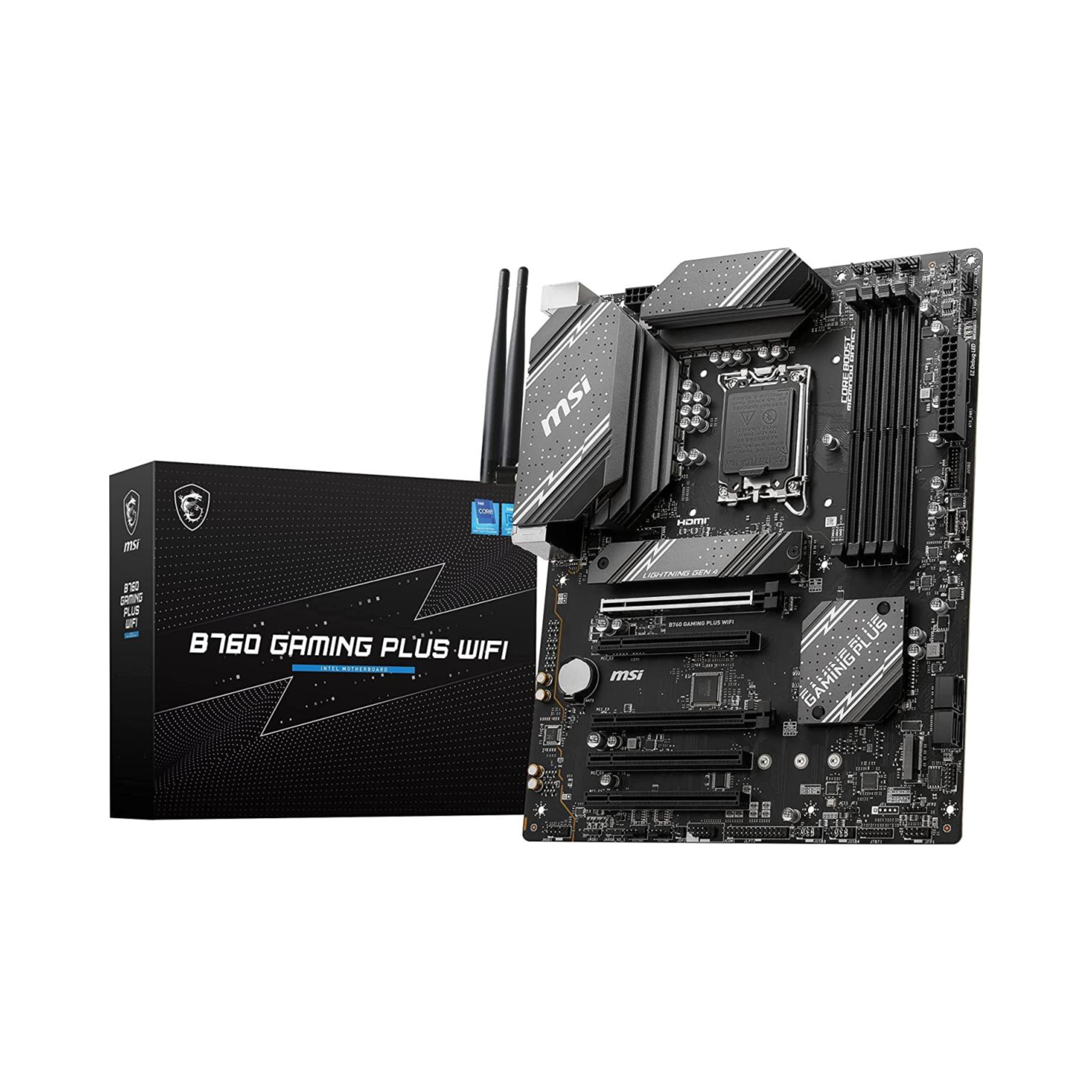

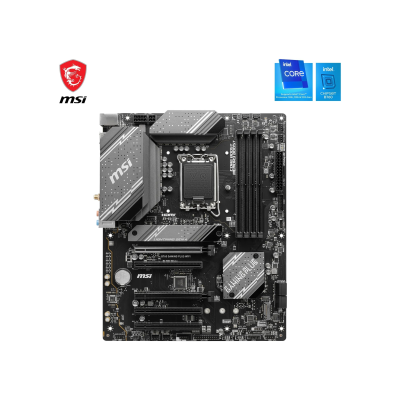

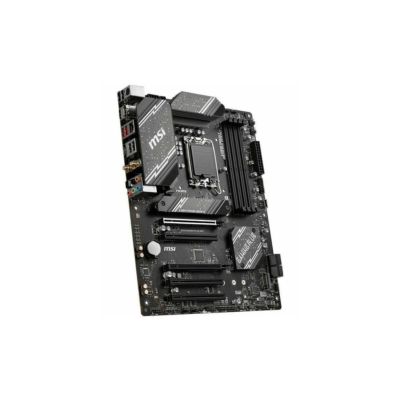

The MSI B760 GAMING PLUS WIFI is an ATX motherboard for LGA1700 processors on the Intel B760 chipset, suited to Intel 12th, 13th and 14th Gen Core processors.
Key features
Four DDR5 DIMM slots run in dual channel up to DDR5-6800+ (OC). Expansion includes two PCIe 4.0 x16 slots and three PCIe 3.0 x1 slots.
Storage covers two M.2 Gen4 x4 slots with M.2 Shield Frozr and four SATA 6Gb/s ports. USB includes three 10Gbps ports (two Type-A, one Type-C) and three 5Gbps ports, and HDMI 2.1 and DisplayPort 1.4 outputs are available for processors with integrated graphics.
Networking includes Wi-Fi 6E and 2.5G LAN, with an extended PWM heatsink and 7.1-channel HD audio with Audio Boost.
Technical specifications
- Model: B760 GAMING PLUS WIFI
- Socket: LGA 1700
- Chipset: B760
- Form Factor: ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 6E
- Max Memory: 256 GB
- M.2 Slots: 2
- Ethernet: 2.5G LAN
- Max Memory Speed: 6800 MT/s
- Primary PCIe Slot: PCIe 4.0
- SATA Ports: 4
- Bluetooth: Bluetooth 5.3
- Video Outputs: 1 × HDMI, 1 × DisplayPort
Platform
| Model | B760 GAMING PLUS WIFI |
|---|---|
| Socket | LGA 1700 |
| Chipset | B760 |
| Form Factor | ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 4 |
| Max Memory | 256 GB |
| Max Memory Speed | 6800 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 4.0 |
|---|---|
| M.2 Slots | 2 |
| SATA Ports | 4 |
Connectivity
| Ethernet | 2.5G LAN |
|---|---|
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Rear USB | 1 x USB 3.2 Gen 2 (10Gbps) Type-C, 2 x USB 3.2 Gen 2 (10Gbps) Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Video Outputs | 1 × HDMI, 1 × DisplayPort |
