Product overview

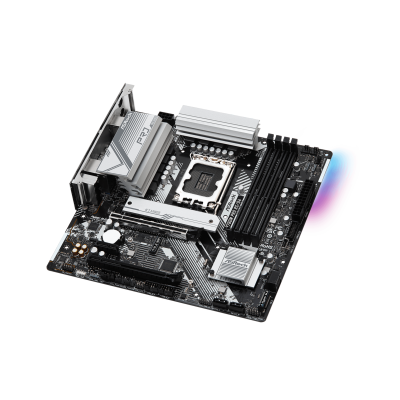

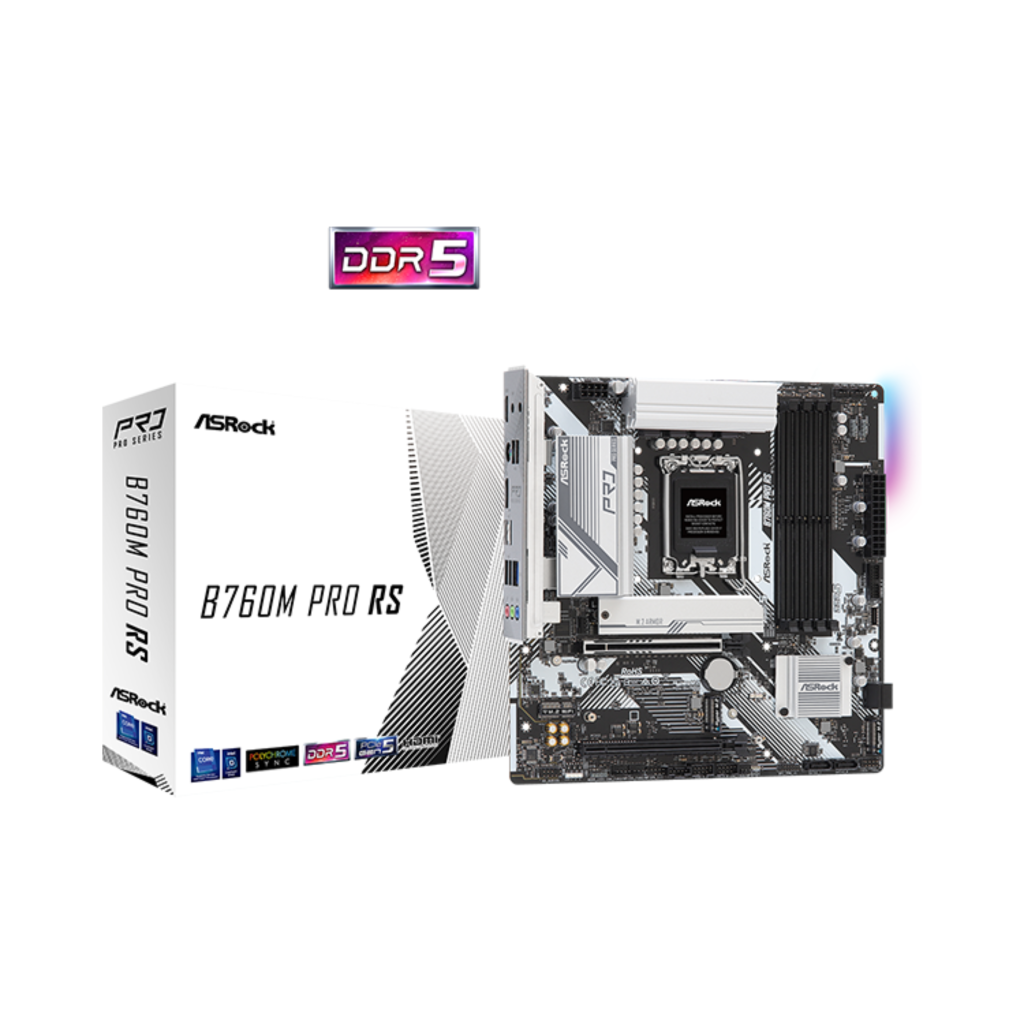

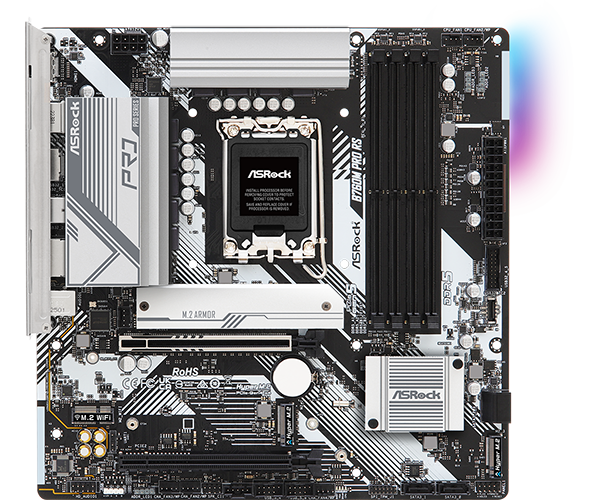

The ASRock B760M Pro RS is a Micro-ATX motherboard built on the Intel B760 chipset for LGA1700 processors, supporting 14th, 13th and 12th Gen Intel Core CPUs.
Key features
Four DDR5 DIMM slots take up to 256GB of memory with Intel XMP 3.0 support and speeds up to 7200+ MT/s (OC) in one-DIMM-per-channel configurations.
Graphics cards use a PCIe 5.0 x16 slot, with a second PCIe 3.0 x16 slot for expansion. Storage covers three Hyper M.2 sockets running at PCIe Gen4 x4 plus four SATA3 6Gb/s ports.
Networking is handled by Realtek Dragon RTL8125BG 2.5Gb LAN, and an M.2 Key E slot accepts an optional Wi-Fi module (not included). The rear panel provides HDMI and DisplayPort 1.4 outputs for processors with integrated graphics.
Technical specifications
- Model: B760M Pro RS
- Socket: LGA 1700
- Chipset: B760
- Form Factor: Micro-ATX
- RAM Type: DDR5
- RAM Slots: 4
- Max Memory: 256 GB
- M.2 Slots: 3
- Ethernet: Realtek Dragon RTL8125BG 2.5GbE
- Max Memory Speed: 7200 MT/s
- Primary PCIe Slot: PCIe 5.0
- SATA Ports: 4
- Video Outputs: 1 × HDMI, 1 × DisplayPort
Compatibility and usage
Supports Intel 14th, 13th and 12th Gen Core processors (LGA1700); check ASRock's CPU support list for the required BIOS version. Wi-Fi requires a separately purchased M.2 Key E module.
Platform
| Model | B760M Pro RS |
|---|---|
| Socket | LGA 1700 |
| Chipset | B760 |
| Form Factor | Micro-ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 4 |
| Max Memory | 256 GB |
| Max Memory Speed | 7200 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 5.0 |
|---|---|
| M.2 Slots | 3 |
| SATA Ports | 4 |
Connectivity
| Ethernet | Realtek Dragon RTL8125BG 2.5GbE |
|---|---|
| Rear USB | 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 |
| Video Outputs | 1 × HDMI, 1 × DisplayPort |
