Product overview

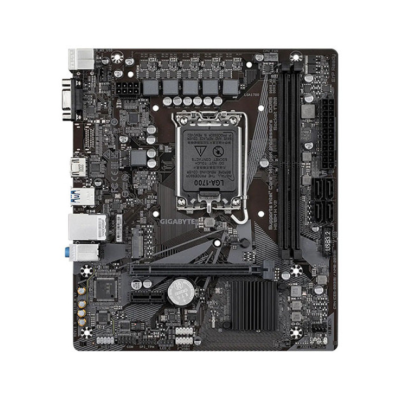

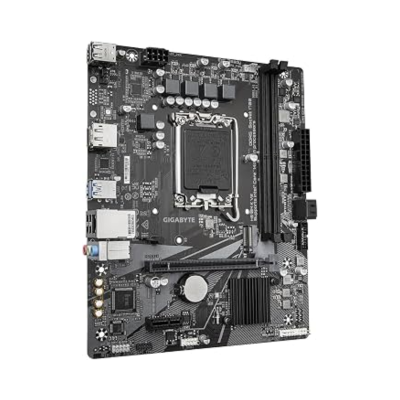

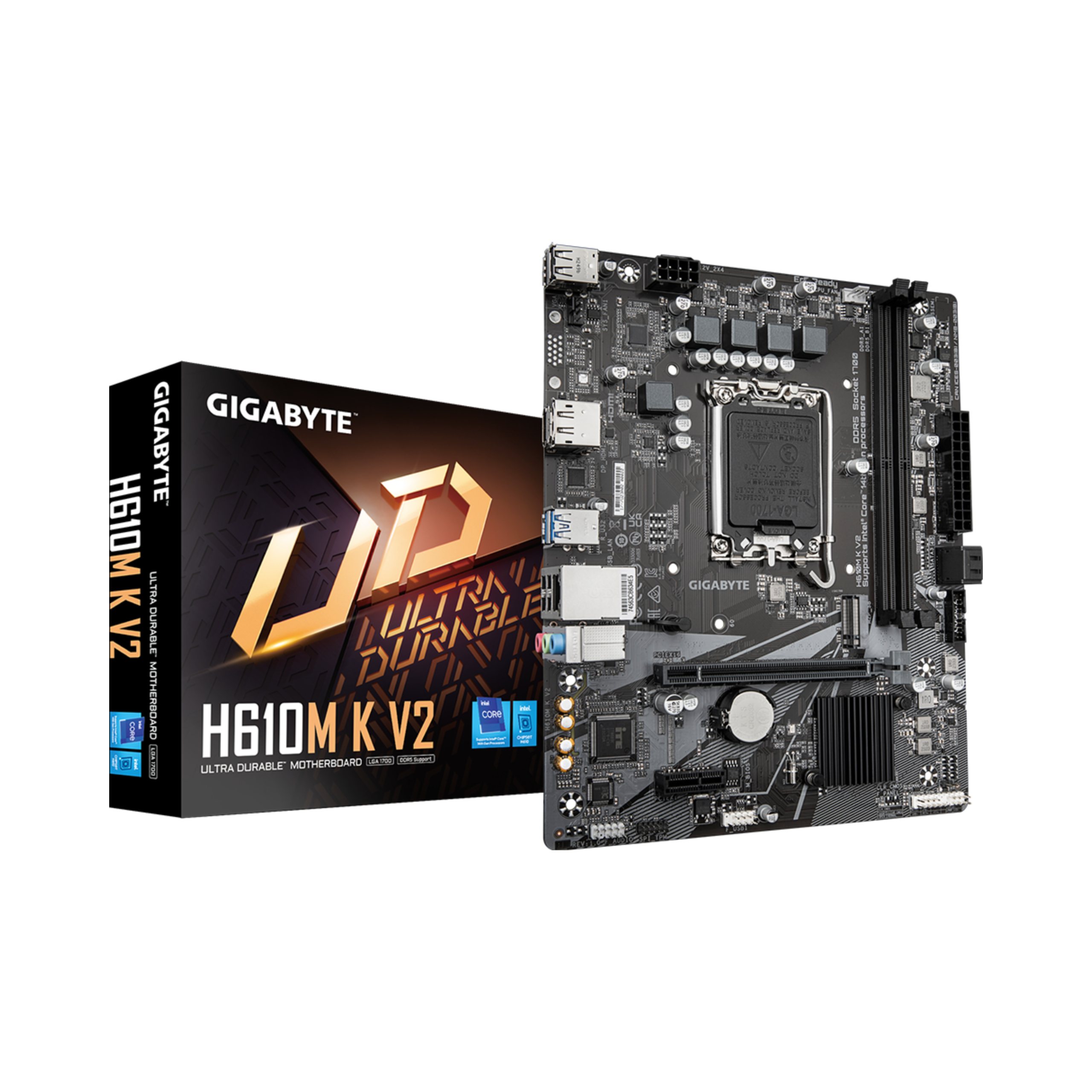

The GIGABYTE H610M K V2 is a compact Micro-ATX (22.6 × 18.5 cm) motherboard for LGA1700 processors on the Intel H610 chipset.
Key features

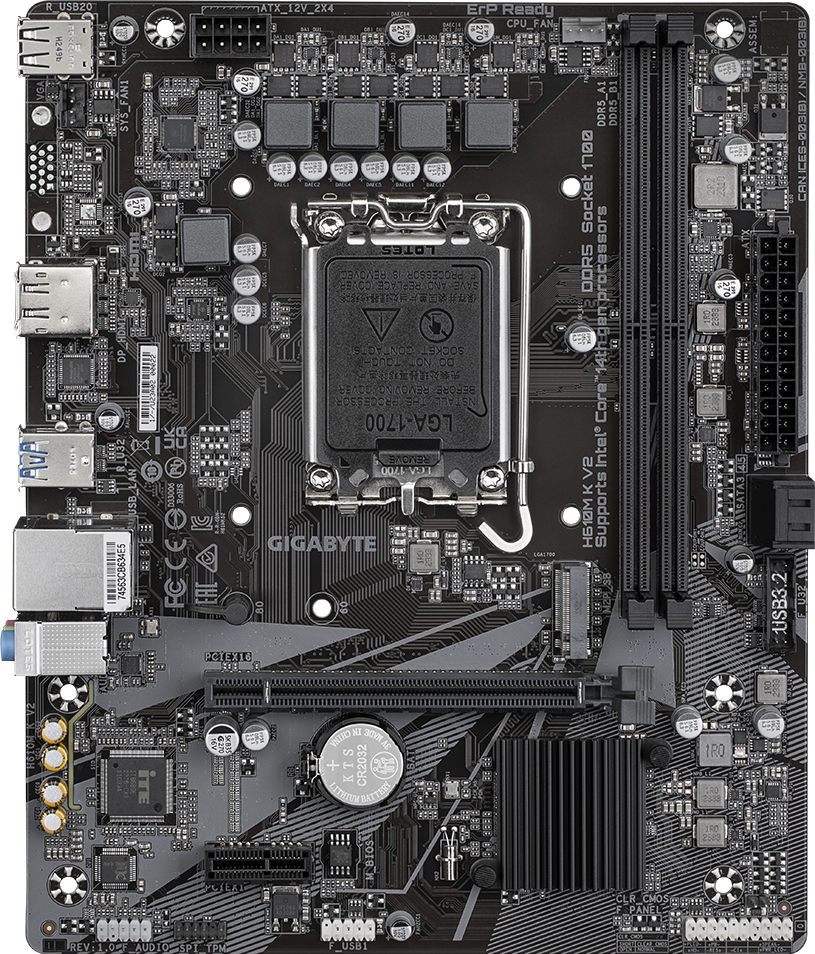

Two DDR5 DIMM slots support up to 128GB in dual channel; supported speeds depend on the CPU, up to DDR5-5600 with 13th/14th Gen Core i7/i9 and DDR5-4800 with 12th Gen and 13th Gen Core i5/i3.

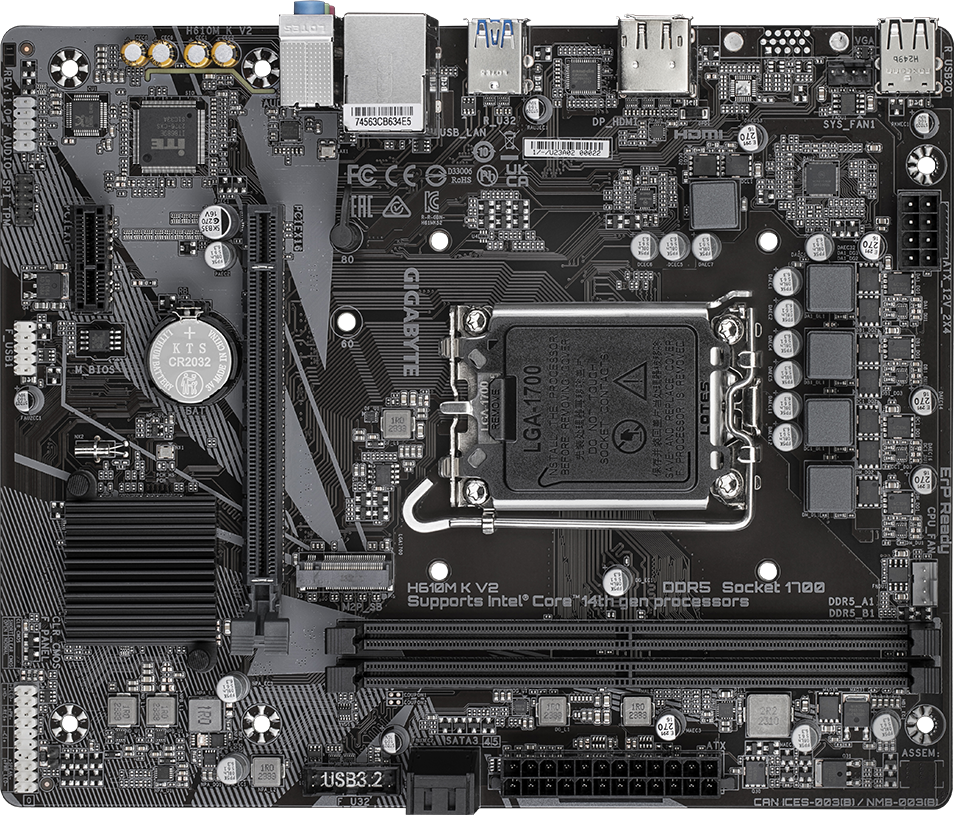

It has a PCIe 4.0 x16 slot from the CPU, a PCIe 3.0 x1 slot, one M.2 slot for PCIe 3.0 x4 SSDs and two SATA 6Gb/s ports.
Connectivity includes Realtek Gigabit LAN, four USB 3.2 Gen 1 ports and HDMI and DisplayPort outputs for processors with integrated graphics.
Technical specifications
- Model: H610M K V2 (Rev. 1.0)

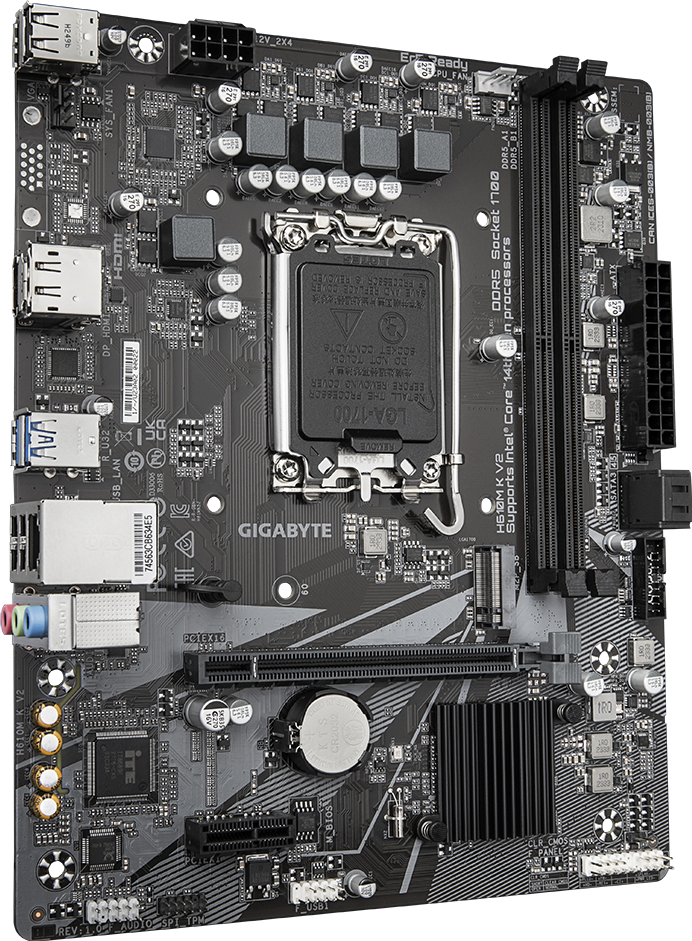

- Socket: LGA 1700
- Chipset: H610
- Form Factor: Micro-ATX
- RAM Type: DDR5
- RAM Slots: 2
- Max Memory: 128 GB
- M.2 Slots: 1
- Ethernet: Realtek GbE
- Max Memory Speed: 4400 MT/s
- Primary PCIe Slot: PCIe 4.0
- SATA Ports: 2
- Video Outputs: 1 × HDMI, 1 × DisplayPort
Platform
| Model | H610M K V2 (Rev. 1.0) |
|---|---|
| Socket | LGA 1700 |
| Chipset | H610 |
| Form Factor | Micro-ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 2 |
| Max Memory | 128 GB |
| Max Memory Speed | 4400 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 4.0 |
|---|---|
| M.2 Slots | 1 |
| SATA Ports | 2 |
Connectivity
| Ethernet | Realtek GbE |
|---|---|
| Rear USB | 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0/1.1 Ports |
| Video Outputs | 1 × HDMI, 1 × DisplayPort |
