Product overview

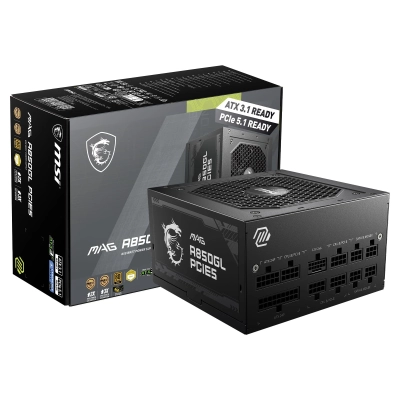

The MSI MAG A850GL PCIE5 is a 850W fully modular ATX power supply rated 80 PLUS Gold (up to 90% efficiency).
Key features
For modern graphics cards it provides a native PCIe 5.0 16-pin connector (600W) alongside 4 × 6+2-pin PCIe connectors, plus two EPS 4+4-pin CPU connectors.
It uses active PFC with a 100–240 VAC input, a quiet 120mm fluid dynamic bearing fan and a compact 140 × 150 × 86 mm body.
Technical specifications
- Model: MAG A850GL PCIE5
- Wattage: 850 W
- Efficiency: 80 PLUS Gold
- Modularity: Fully modular
- Form Factor: ATX
- GPU Power Connectors: 4 × 6+2-pin, 1 × PCIe 5.0 16-pin (600W)
- CPU Power Connectors: 2 × EPS 4+4-pin
- 12V-2x6 / 12VHPWR: Yes
- SATA Connectors: 8
- Fan Size: 120 mm
- Protections: OCP / OVP / OPP / OTP / SCP / UVP
Power
| Model | MAG A850GL PCIE5 |
|---|---|
| Wattage | 850 W |
| Efficiency | 80 PLUS Gold |
| Form Factor | ATX |
Cables & connectors
| Modularity | Fully modular |
|---|---|
| GPU Power Connectors | 4 × 6+2-pin, 1 × PCIe 5.0 16-pin (600W) |
| 12V-2x6 / 12VHPWR | Yes |
| CPU Power Connectors | 2 × EPS 4+4-pin |
| SATA Connectors | 8 |
Cooling & protection
| Fan Size | 120 mm |
|---|---|
| Protections | OCP / OVP / OPP / OTP / SCP / UVP |
