Product overview

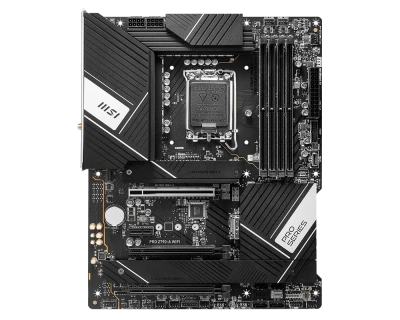

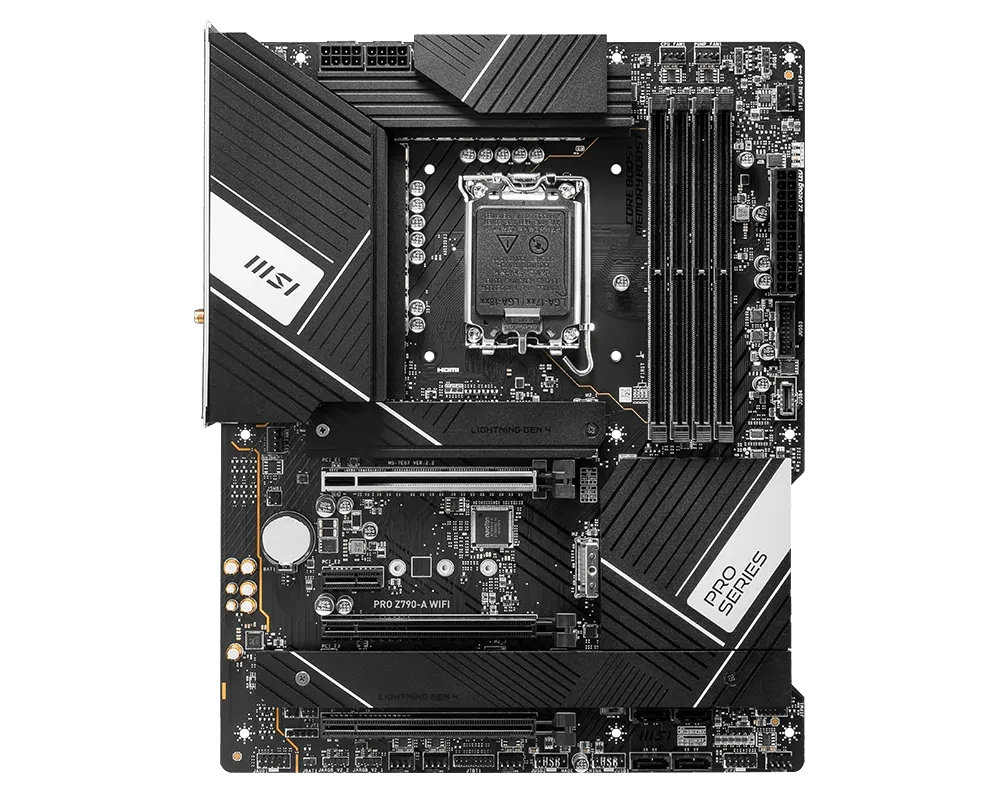

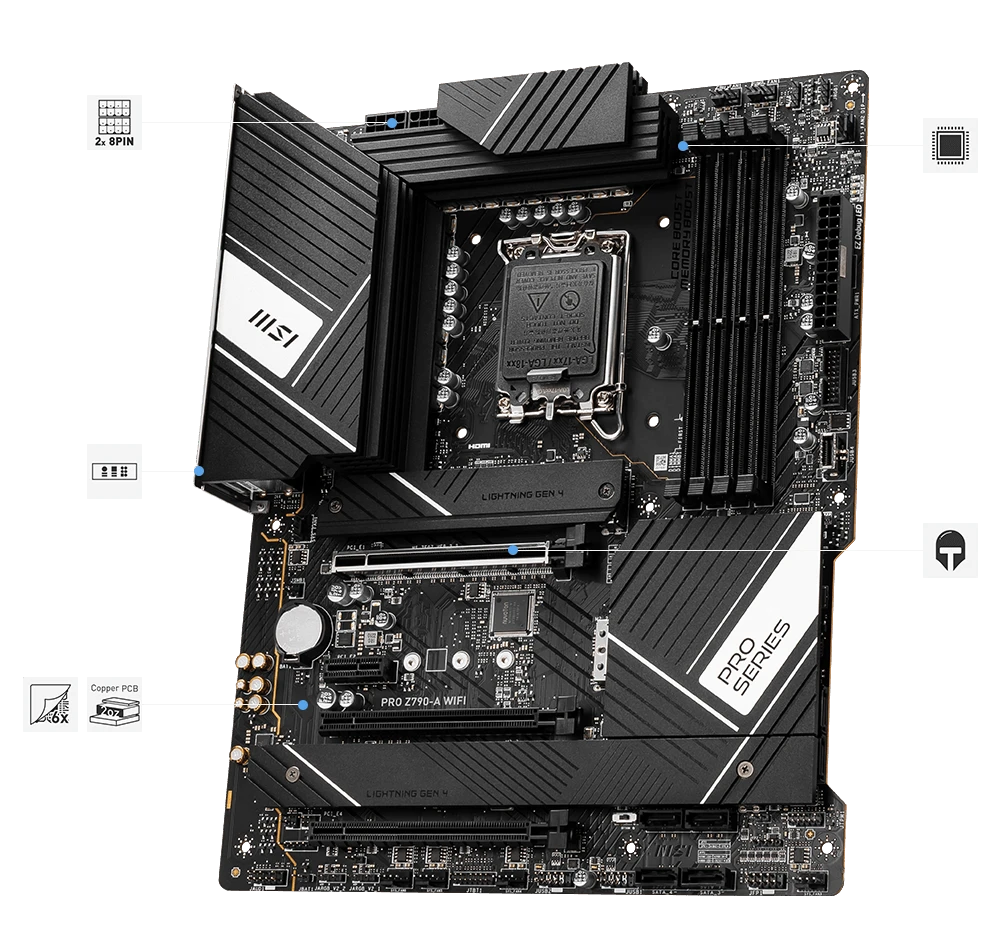

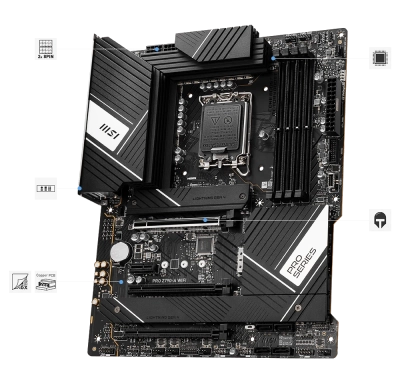

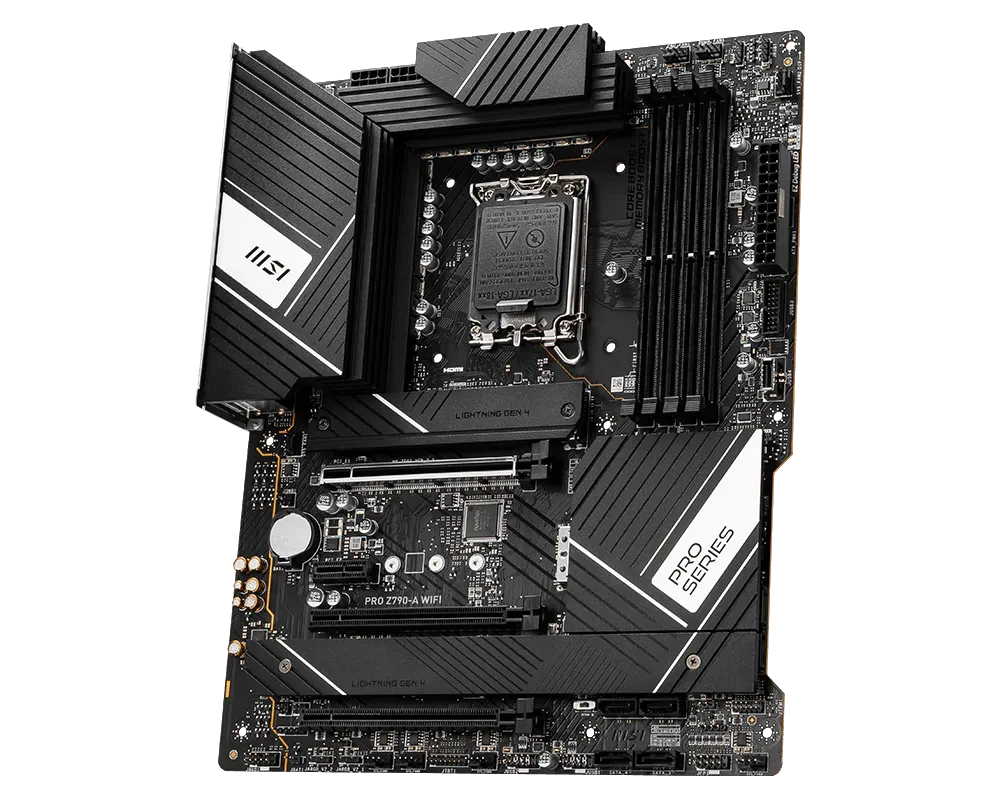

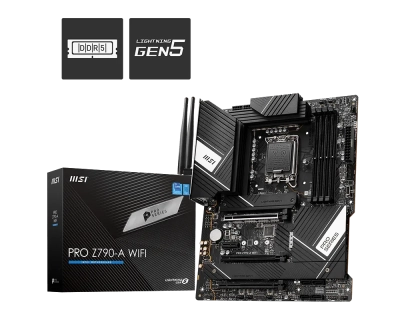

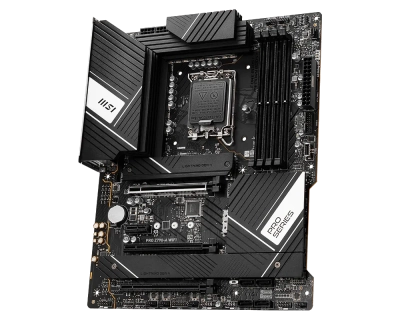

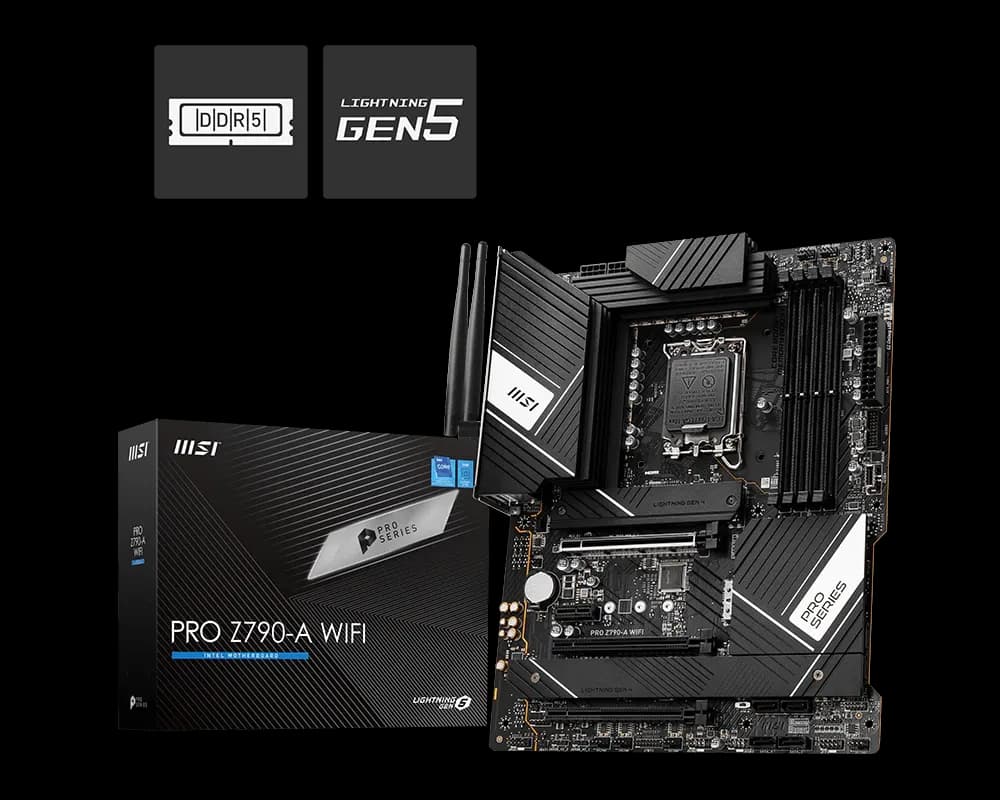

The MSI PRO Z790-A WIFI is an ATX motherboard for Intel LGA1700 processors (12th–14th Gen Core), built on the Intel Z790 chipset.
Key features
It has 4 DDR5 DIMM slots supporting up to 256GB, rated up to 7200+ MT/s (OC).
Connectivity and storage include 4 M.2 slots for NVMe storage, Intel 2.5G LAN networking and Wi-Fi 6E wireless.
Technical specifications
- Model: PRO Z790-A WIFI
- Socket: LGA 1700
- Chipset: Z790
- Form Factor: ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 6E
- Max Memory: 256 GB
- M.2 Slots: 4
- Ethernet: Intel 2.5G LAN
- Max Memory Speed: 7200 MT/s
- Primary PCIe Slot: PCIe 5.0
- SATA Ports: 6
- Bluetooth: Bluetooth 5.3
- Video Outputs: 1 × HDMI, 1 × DisplayPort
Platform
| Model | PRO Z790-A WIFI |
|---|---|
| Socket | LGA 1700 |
| Chipset | Z790 |
| Form Factor | ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 4 |
| Max Memory | 256 GB |
| Max Memory Speed | 7200 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 5.0 |
|---|---|
| M.2 Slots | 4 |
| SATA Ports | 6 |
Connectivity
| Ethernet | Intel 2.5G LAN |
|---|---|
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Video Outputs | 1 × HDMI, 1 × DisplayPort |
