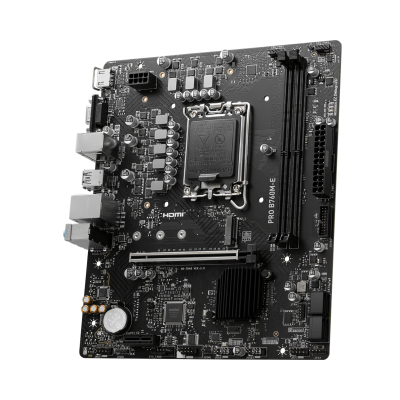

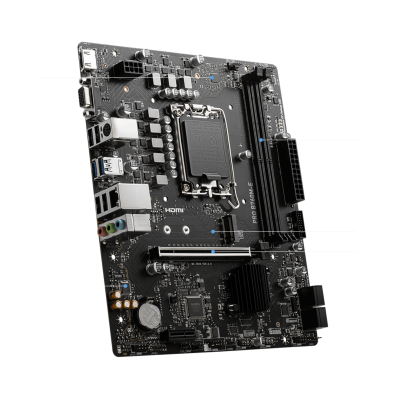

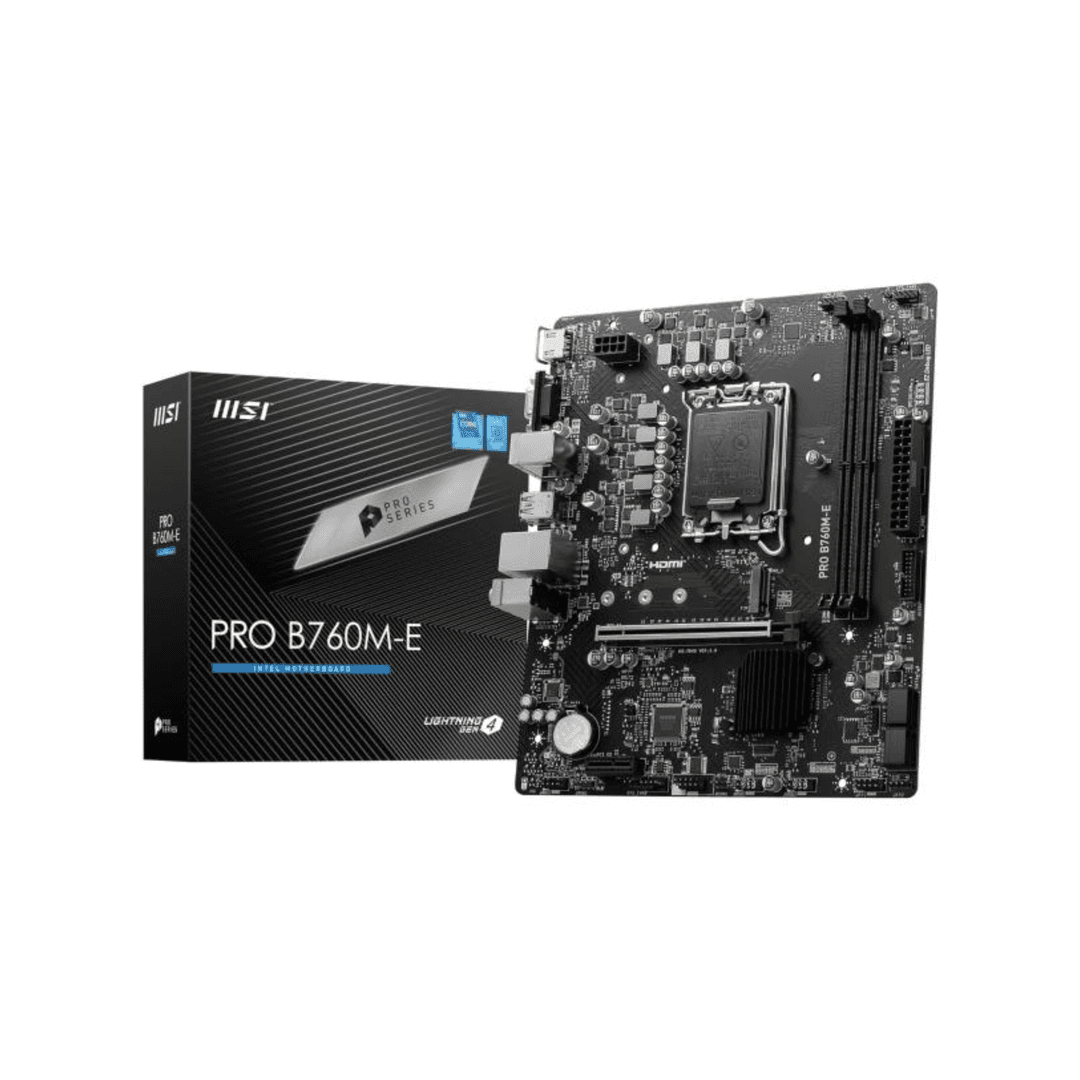

MSI PRO B760M-E DDR5 Micro-ATX Motherboard
Out of stock
Out of stock
MSI PRO B760M-E DDR5 Micro-ATX Motherboard
The MSI PRO B760M-E DDR5 Motherboard is a highly efficient, business-class Micro-ATX platform powered by the Intel B760 chipset, engineered specifically to support 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors on the LGA 1700 socket. Designed to bring high-speed DDR5 memory performance and PCIe 4.0 expansion capabilities into an accessible, compact form factor, the PRO B760M-E provides an ideal, stable foundation for productivity workstations, office PCs, and everyday gaming systems.
Equipped with MSI’s Core Boost and Memory Boost technologies, high-quality power components, and efficient passive VRM cooling, this motherboard maintains continuous electrical stability and thermal management during daily multitasking and heavy workloads. Combined with ultra-fast PCIe 4.0 M.2 storage support, high-speed Gigabit LAN, HDMI and VGA display outputs, and user-friendly EZ DIY diagnostic features, the MSI PRO B760M-E DDR5 strikes the ultimate balance between essential connectivity, reliability, and value.
Next-Gen DDR5 Memory Performance & Memory Boost
High-Bandwidth Operations for Superior Multitasking and System Speed
Step into the modern era of high-speed system memory with native DDR5 support. The MSI PRO B760M-E features dual DDR5 DIMM slots capable of supporting memory frequencies up to DDR5-6400+ (OC), delivering significantly higher bandwidth and efficiency compared to legacy DDR4 architecture.
Utilizing MSI’s fully isolated Memory Boost circuitry, memory signal traces are shielded from external noise, ensuring pure digital data signals for optimal stability and system performance under extreme multitasking workloads.
PCIe 4.0 Expansion & Steel Armor Protection
Maximum Bandwidth for Dedicated Graphics Cards with Reinforced Slot Durability
The motherboard is equipped with a primary PCIe 4.0 x16 slot, providing double the transmission speed of PCIe 3.0 standards to fully feed high-performance dedicated graphics cards with maximum bandwidth.
To protect your investment, the primary PCIe slot is built with MSI Steel Armor, featuring heavy-duty solder points and physical metal reinforcement to safeguard the PCB against heavy GPU bending and electromagnetic interference (EMI).
Ultra-Fast Lightning Gen 4 M.2 Storage
High-Speed NVMe SSD Performance for Quick Boot Times and Application Loads
Accelerate your operating system boot times and software application loads with onboard Lightning Gen 4 M.2 storage support. Operating at PCIe 4.0 x4 speeds, the M.2 slot delivers transfer rates up to 64Gb/s when paired with modern NVMe SSDs.
Additionally, multiple SATA 6Gb/s ports provide flexible storage expansion for high-capacity hard drives and secondary 2.5-inch SSD storage setups.
Reliable Power Architecture & EZ Debug LEDs
Optimized Core Power Delivery and Simplified System Diagnostics
Built with MSI’s proprietary Core Boost architecture, the PRO B760M-E combines a precise digital power design with 8-pin CPU power input to deliver clean, unthrottled current to the processor with maximum precision.
Troubleshooting hardware issues during assembly is fast and intuitive thanks to integrated EZ Debug LEDs. Onboard indicator LEDs for CPU, DRAM, VGA, and BOOT quickly signal the exact component source of any startup issue.
Why Choose MSI PRO B760M-E DDR5 Motherboard?
DDR5 Speed, PCIe 4.0 Bandwidth, Intel LGA 1700 Support, and Compact Reliability
The MSI PRO B760M-E DDR5 Micro-ATX Motherboard offers a dependable, future-ready solution for users looking to build a modern Intel-based desktop PC with DDR5 memory support. Combining PCIe 4.0 graphics capability, Gen 4 M.2 storage support, and MSI PRO series durability, it delivers essential modern features without unnecessary complexity.
Whether you are building a modern office PC, a home workstation, or an budget-friendly gaming desktop, the PRO B760M-E DDR5 ensures rock-solid stability, simple DIY setup, and high-efficiency daily performance.
Product Specifications
Main Technical Features
| Brand | MSI |
| Model Series | PRO Series / PRO B760M-E DDR5 |
| CPU Socket | Intel® Socket LGA 1700 |
| Processor Compatibility | Supports 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold & Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Form Factor | Micro-ATX Form Factor (23.6 cm x 20.0 cm) |
| Memory Architecture | Dual Channel DDR5 Memory Architecture |
| Memory DIMM Slots | 2 x DDR5 DIMM Slots (Up to 96GB Max System Memory) |
| Memory Overclocking | Supports DDR5 6400+(OC) / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 4800 MHz |
| Primary Expansion Slot | 1 x PCIe 4.0 x16 Slot (PCI_E1 with Steel Armor Protection) |
| Additional Expansion Slot | 1 x PCIe 3.0 x1 Slot |
| Storage Support – M.2 | 1 x M.2 Slot (Key M, PCIe 4.0 x4 mode / up to 64Gbps) |
| Storage Support – SATA | 4 x SATA 6Gb/s Ports (Supports RAID 0, RAID 1, RAID 5, RAID 10) |
| Wired Networking | 1 x Realtek® RTL8111H 1Gbps Gigabit LAN Controller |
| Audio System | Realtek® ALC897 7.1-Channel High Definition Audio |
| Rear Panel USB Ports | 2 x USB 3.2 Gen 1 (5Gbps) Type-A + 4 x USB 2.0 Type-A |
| Display Outputs | 1 x HDMI 1.4 Port + 1 x VGA Port |
| DIY Features | EZ Debug LED, Core Boost, Memory Boost, Frozr AI Cooling |
