Product overview

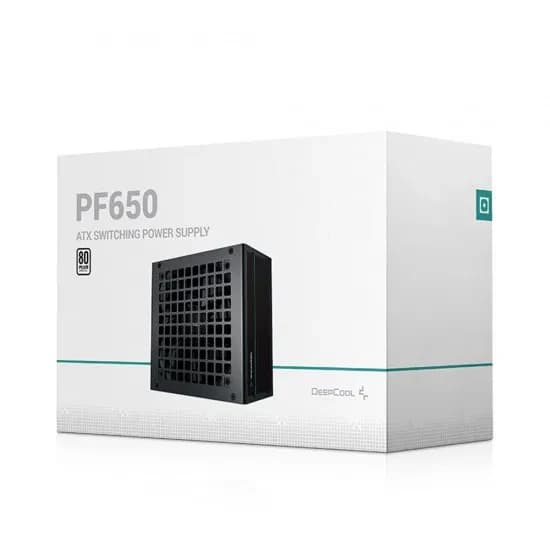

The DeepCool PF650 is a 650W ATX12V V2.4 power supply certified 80 PLUS 230V EU White, with at least 85% efficiency at typical (50%) load.

Key features

It provides a 24-pin (20+4) main connector, an 8-pin (4+4) eps cpu connector and two 6+2-pin PCIe connectors for a graphics card, with fixed (non-modular) cables.

A 120mm fan keeps it cool, and protections include over-power, over-voltage and short-circuit protection.

Technical specifications

• Model: PF650D (230V)
• Wattage: 650 W
• Efficiency: 80 PLUS 230V EU
• Modularity: Non-modular
• Form Factor: ATX
• GPU Power Connectors: 2 × 6+2-pin
• CPU Power Connectors: an 8-pin (4+4) EPS CPU connector
• ATX Standard: ATX 2.x
• Fan Size: 120 mm
• Protections: OPP / OVP / SCP / UVP
