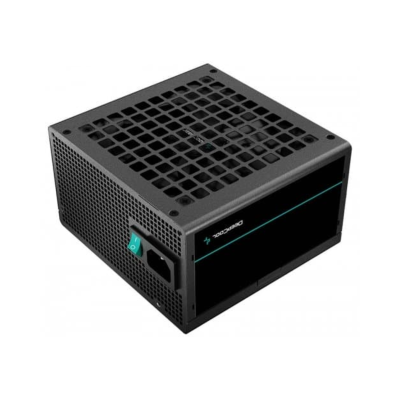

Product overview
The DeepCool PF750 is a 750W ATX12V V2.4 power supply certified 80 PLUS 230V EU White, with at least 85% efficiency at typical (50%) load.
Key features
It provides a 24-pin (20+4) main connector, an 8-pin (4+4) eps cpu connector and two 6+2-pin PCIe connectors for a graphics card, with fixed (non-modular) cables.

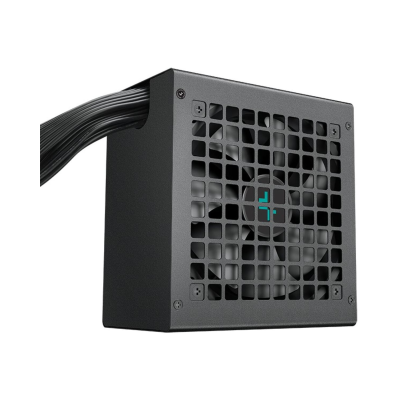

A 120mm fan keeps it cool, and protections include over-power, over-voltage and short-circuit protection.
Technical specifications
- Model: PF750D (230V)
- Wattage: 750 W
- Efficiency: 80 PLUS 230V EU
- Modularity: Non-modular
- Form Factor: ATX
- GPU Power Connectors: 2 × 6+2-pin
- CPU Power Connectors: an 8-pin (4+4) EPS CPU connector
- ATX Standard: ATX 2.x
- SATA Connectors: 3
- Fan Size: 120 mm
- Protections: OPP / OVP / SCP / UVP
Power
| Model | PF750D (230V) |
|---|---|
| Wattage | 750 W |
| Efficiency | 80 PLUS 230V EU |
| ATX Standard | ATX 2.x |
| Form Factor | ATX |
Cables & connectors
| Modularity | Non-modular |
|---|---|
| GPU Power Connectors | 2 × 6+2-pin |
| CPU Power Connectors | an 8-pin (4+4) EPS CPU connector |
| SATA Connectors | 3 |
Cooling & protection
| Fan Size | 120 mm |
|---|---|
| Protections | OPP / OVP / SCP / UVP |
