Product overview

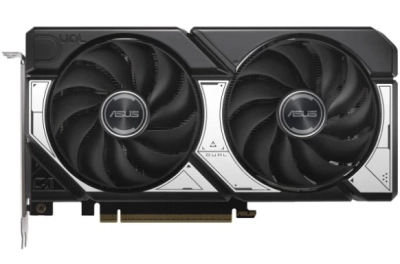

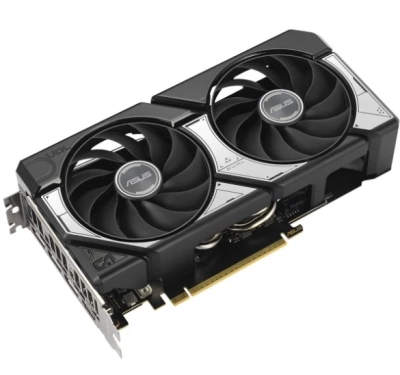

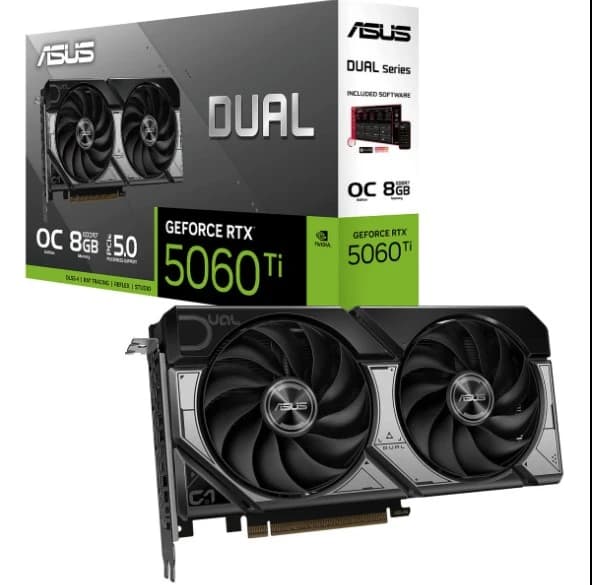

The ASUS Dual GeForce RTX 5060 Ti 8GB GDDR7 OC Edition is a GeForce RTX 5060 Ti graphics card with 8GB of GDDR7 memory on a 128-bit bus with a boost clock of 2632 MHz (OC mode) / 2602 MHz (default).
Key features

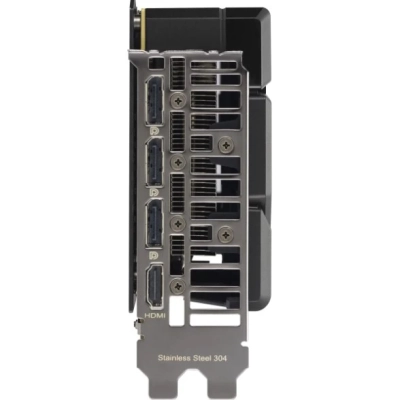

Display outputs are 3 × DisplayPort 2.1b, 1 × HDMI 2.1b.
Power is supplied through 1 × 8-pin, and the manufacturer recommends a 550W power supply. The card is 229 mm long. Memory runs at 28 Gbps, and the compact 2.5-slot dual-fan design measures 229 × 120 × 50 mm.
Technical specifications
- Model: DUAL-RTX5060TI-O8G
- GPU Model: GeForce RTX 5060 Ti
- VRAM: 8 GB
- Memory Type: GDDR7
- Memory Bus: 128-bit
- Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
- Power Connector: 1 × 8-pin
- Recommended PSU: 550 W
- Card Length: 229 mm
- Clock Speed: 2632 MHz (OC mode) / 2602 MHz (default)
- GPU Architecture: Blackwell
- CUDA Cores / Stream Processors: 4608
- Slot Width: 2.5 slot
