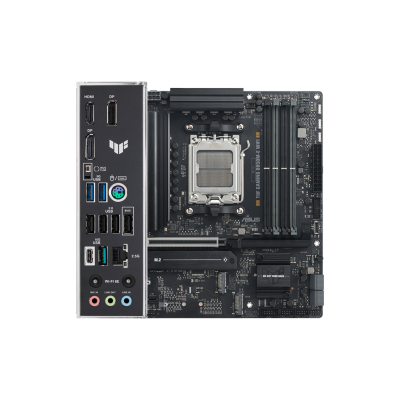

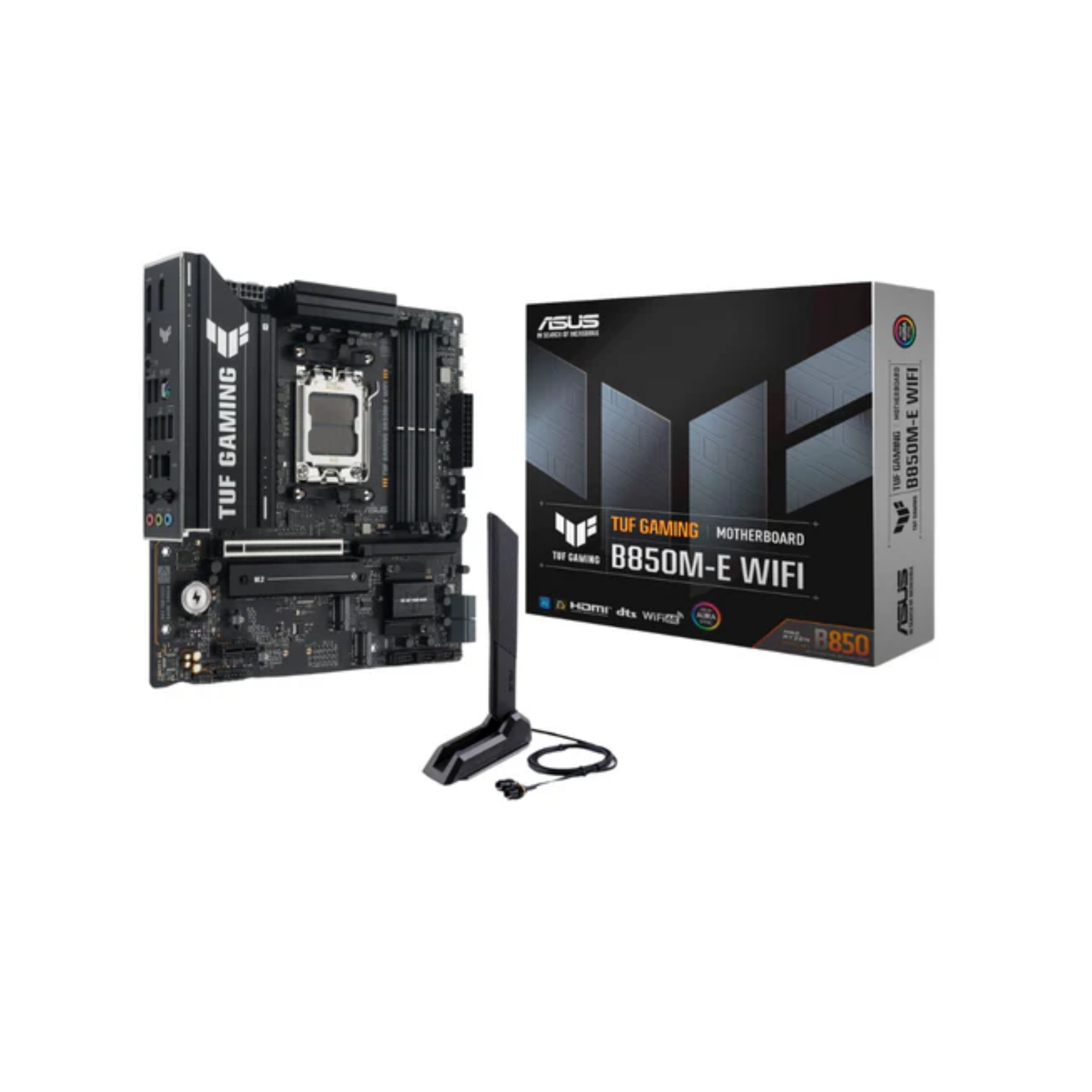

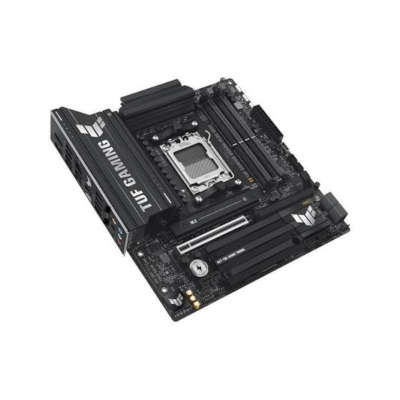

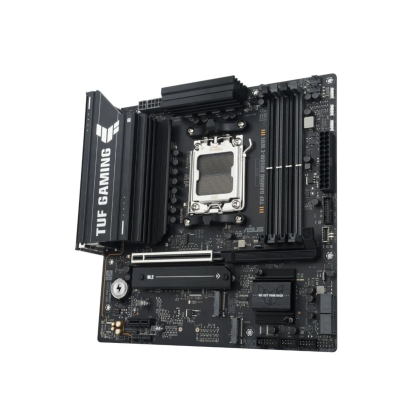

Product overview
The ASUS TUF GAMING B850M-E WIFI is a Micro-ATX motherboard for Socket AM5 on the AMD B850 chipset, supporting AMD Ryzen 9000, 8000 and 7000 series desktop processors.
Key features
It has four DDR5 DIMM slots supporting up to 256GB and speeds up to 8000+ MT/s (OC), with AMD EXPO and ASUS Enhanced Memory Profile.
With Ryzen 9000 or 7000 processors, the x16 slot and the first M.2 slot run at PCIe 5.0. There are three M.2 slots in total (the chipset slot runs at PCIe 4.0 x4), four SATA 6Gb/s ports and an additional PCIe 4.0 x1 slot.
It provides Realtek 2.5Gb Ethernet with TUF LANGuard, 2x2 Wi-Fi 6E with Bluetooth 5.3, and two DisplayPort 1.4 outputs plus one HDMI 2.1 output for processors with integrated graphics.
Technical specifications
- Model: TUF GAMING B850M-E WIFI
- Socket: AM5
- Chipset: B850
- Form Factor: Micro-ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 6E
- Max Memory: 256 GB
- M.2 Slots: 3
- Ethernet: Realtek 2.5Gb Ethernet, TUF LANGuard
- Max Memory Speed: 8000 MT/s
- Primary PCIe Slot: PCIe 5.0
- SATA Ports: 4
- Bluetooth: Bluetooth 5.3
- Video Outputs: 1 × HDMI, 2 × DisplayPort
Platform
| Model | TUF GAMING B850M-E WIFI |
|---|---|
| Socket | AM5 |
| Chipset | B850 |
| Form Factor | Micro-ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 4 |
| Max Memory | 256 GB |
| Max Memory Speed | 8000 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 5.0 |
|---|---|
| M.2 Slots | 3 |
| SATA Ports | 4 |
Connectivity
| Ethernet | Realtek 2.5Gb Ethernet, TUF LANGuard |
|---|---|
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Rear USB | 2 x USB 10Gbps (1 x Type-A + 1 x Type-C), 2 x USB 5Gbps Type-A, 4 x USB 2.0 |
| Video Outputs | 1 × HDMI, 2 × DisplayPort |
