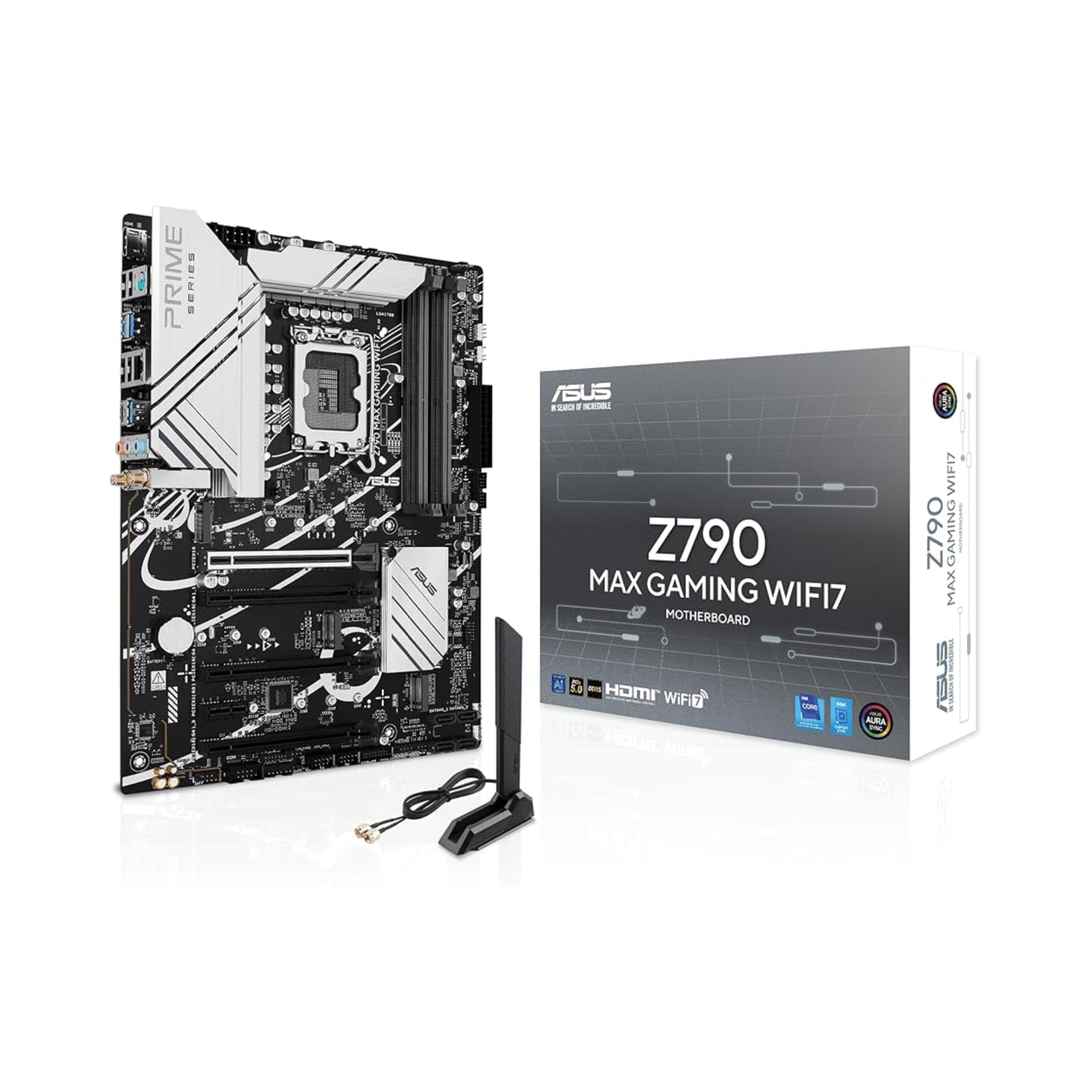

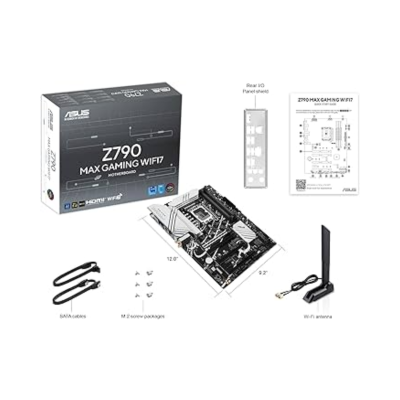

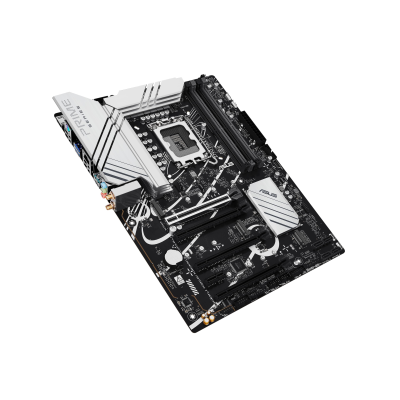

ASUS Z790 MAX GAMING WIFI7 ATX Motherboard
Out of stock
Out of stock
ASUS Z790 MAX GAMING WIFI7 ATX Motherboard
The ASUS Z790 MAX GAMING WIFI7 ATX Motherboard is a high-performance foundation engineered to harness the raw power of 14th, 13th, and 12th Gen Intel Core processors. Built around the Intel Z790 chipset and LGA 1700 socket, this motherboard combines high-efficiency power delivery, next-generation DDR5 memory performance, PCIe 5.0 graphics slot expansion, and cutting-edge Wi-Fi 7 networking to deliver flawless stability and blistering speed for competitive gamers, streamers, and PC enthusiasts.
Meticulously designed to anchor modern desktop builds, the ASUS Z790 MAX GAMING features a heavy-duty thermal architecture equipped with enlarged VRM heatsinks and comprehensive Fan Xpert 4 cooling controls. Featuring high-speed USB 20Gbps Type-C connectivity, Thunderbolt 4 (USB4) header support, SafeSlot Core+ structural protection, and ASUS Aura Sync RGB customization, this motherboard provides the durability, speed, and versatility required for high-end gaming rigs.
14+1 DrMOS Power Stage VRM Architecture
Robust Power Delivery and Clean Energy Efficiency for Multi-Core Intel CPUs
At the core of the ASUS Z790 MAX GAMING WIFI7 is a high-performance 14(50A)+1(60A)+1 DrMOS power stage configuration. Combining high-side and low-side MOSFETs and drivers into a single package, this power architecture delivers clean, efficient, and precise power to demanding multi-core Intel Core processors during heavy multi-threaded workloads and high-frame-rate gaming sessions.
To keep VRM temperatures consistently low under sustained load, the motherboard features massively enlarged VRM heatsinks paired with high-conductivity thermal pads, ensuring maximum thermal dissipation and preventing throttling during prolonged gaming marathons.
Extreme DDR5 Memory Speed with AEMP II & OptiMem II
Unlocking Next-Gen Memory Bandwidth Up to 7200+ MHz (OC)
Step into the future of memory performance with support for high-speed DDR5 memory modules across 4 DIMM slots, supporting up to 192GB of total system RAM. Utilizing ASUS OptiMem II technology, memory trace pathways are carefully routed across PCB layers to significantly reduce crosstalk and signal interference.
With ASUS Enhanced Memory Profile II (AEMP II), the motherboard automatically detects PMIC-restricted memory modules and applies optimized frequency, timing, and voltage profiles in BIOS, allowing users to achieve maxed-out DDR5 overclocking stability with a single click.
PCIe 5.0 Expansion & Triple PCIe 4.0 M.2 Storage Matrix
Blazing Fast GPU Slot Bandwidth paired with 64Gbps High-Speed M.2 Slots
Prepare your system for next-generation graphics cards with a primary PCIe 5.0 x16 SafeSlot Core+ expansion slot. Offering double the bandwidth of PCIe 4.0, this reinforced slot ensures ultimate data transfer speeds for modern GPUs while providing physical shear resistance against heavy graphics cards.
For ultra-fast game loading times and rapid file transfers, the motherboard houses three M.2 storage slots supporting PCIe 4.0 x4 modes (up to 64 Gbps data transfer speeds). Dedicated M.2 heatsinks cover the primary storage slots to prevent NVMe SSD thermal throttling.
Next-Gen Wi-Fi 7 Wireless & High-Speed I/O Connectivity
Ultra-Wide 6GHz Band Wireless, USB 20Gbps Type-C, and USB4 Support
Experience groundbreaking wireless performance with built-in Wi-Fi 7 (802.11be) networking. Operating across the 2.4GHz, 5GHz, and dedicated 6GHz frequency bands, Wi-Fi 7 dramatically increases network capacity, reduces latency, and delivers smoother wireless online gaming and 4K/8K streaming.
The rear I/O panel includes an ultrafast USB 20Gbps (USB 3.2 Gen 2×2) Type-C port for rapid external storage connections, as well as an onboard Thunderbolt 4 (USB4) header for expanded bi-directional speeds up to 40 Gbps via add-on expansion cards.
Comprehensive Fan Xpert 4 & Intelligent DIY Design
Smart AI Cooling II Management paired with Q-LED Diagnostic Feedback
Keep your rig running quiet and cool under any load. ASUS Fan Xpert 4 with AI Cooling II dynamically references multiple thermal sensors across the motherboard and supported ASUS graphics cards, automatically tuning fan speeds to balance acoustic noise with optimal thermal performance.
DIY builders benefit from user-friendly diagnostic tools, including Q-LED Core indicators that provide quick hardware troubleshooting status during system startup, as well as SafeSlot Core+ structural reinforcement for long-term component durability.
Why Choose ASUS Z790 MAX GAMING WIFI7?
The Ultimate Benchmark of Intel Z790 Speed, Wi-Fi 7 Networking, and DDR5 Performance
The ASUS Z790 MAX GAMING WIFI7 ATX Motherboard stands as an outstanding choice for PC builders seeking top-tier 14th Gen Intel Core performance, cutting-edge Wi-Fi 7 connectivity, and PCIe 5.0 graphics compatibility without paying an extreme enthusiast price premium. With its 14+1 DrMOS power stages, AEMP II DDR5 memory tuning, and USB 20Gbps Type-C port, it offers remarkable platform longevity.
Whether you are building a competitive esports gaming rig, assembling a streaming workstation, or configuring a powerful daily PC, the ASUS Z790 MAX GAMING WIFI7 delivers the clean power delivery, low latency, and robust thermal cooling needed to maximize your hardware investment.
Product Specifications
Main Technical Features
| Brand | ASUS |
| Model Name | Z790 MAX GAMING WIFI7 |
| Form Factor Profile | ATX Form Factor (30.5 cm x 24.4 cm) |
| Processor Socket | Intel Socket LGA 1700 |
| CPU Compatibility | Supports Intel® Core™ 14th, 13th & 12th Gen, Pentium® Gold and Celeron® Processors |
| Motherboard Chipset | Intel® Z790 Chipset |
| Power VRM Solution | 14(50A)+1(60A)+1 DrMOS Power Stages with Enlarged VRM Heatsinks |
| Memory Architecture | Dual Channel DDR5 (4 x DIMM Sockets, Up to 192GB Max) |
| Memory Frequency Support | DDR5 7200+ MHz (OC) / Intel® XMP & ASUS AEMP II Support |
| Primary Expansion Slot | 1 x PCIe 5.0 x16 Slot (SafeSlot Core+ Reinforced) |
| Additional Expansion Slots | 3 x PCIe 4.0 x16 Slots (x4 Mode) + 1 x PCIe 3.0 x1 Slot |
| M.2 Storage Interfaces | 3 x M.2 PCIe 4.0 x4 Slots (Key M, Up to 64 Gbps Data Transfer Speed) |
| SATA Storage Ports | 4 x SATA 6Gb/s Ports (Supports PCIe & SATA RAID 0/1/5/10) |
| Wireless Networking | Wi-Fi 7 (802.11be 2×2, 2.4/5/6 GHz Bands) + Bluetooth® v5.4 |
| Wired Ethernet LAN | Realtek® 1Gb Ethernet Controller |
| Display Outputs | 1 x HDMI® Port (Supports 4K @ 60Hz as specified in HDMI 2.1) |
| Rear USB Connectivity | 1 x USB 20Gbps Type-C®, 1 x USB 10Gbps Type-A, 2 x USB 5Gbps, 4 x USB 2.0 |
| Header Expandability | Thunderbolt™ 4 (USB4®) Header, 3 x Addressable Gen 2 Headers, 1 x Aura RGB Header |
| Cooling Management | Fan Xpert 4 with AI Cooling II, AIO Pump Header & Smart Protection |
| System Compatibility | Windows 11 (64-bit) / Windows 10 (64-bit) |
