| Product Specifications
| Manufacturers Link
| https://rog.asus.com/motherboards/rog-strix/rog-strix-x670e-f-gaming-wifi-model/spec/
| Motherboard Specifications
| CPU Support
| AMD Ryzen VII Generation
| CPU Socket Type
| AM5
| Chipset
| AMD X670
| Form Factor
| ATX
| Memory Type
| DDR5
| Memory Speed
| 6400 Mhz
| Maximum Memory
| 128 GB
| Memory Slots
| 4 Slots
| M.2 Slots
| Yes
| Wireless LAN
| Yes
| Warranty
| Warranty
| 1 Year
anufacturer
Republic of Gamers (ROG), part of the ASUS family, is dedicated to creating innovative hardcore gaming hardware for gamers. ROG is committed to providing the absolute best performance and quality from its complete line of products. ROG is for those keen on the finest gaming hardware and software as it enables the ultimate computing experience for gamers and enthusiasts worldwide. It incorporates a stylish gamer-focused design, merging the excitement of gaming with a unique premium style.

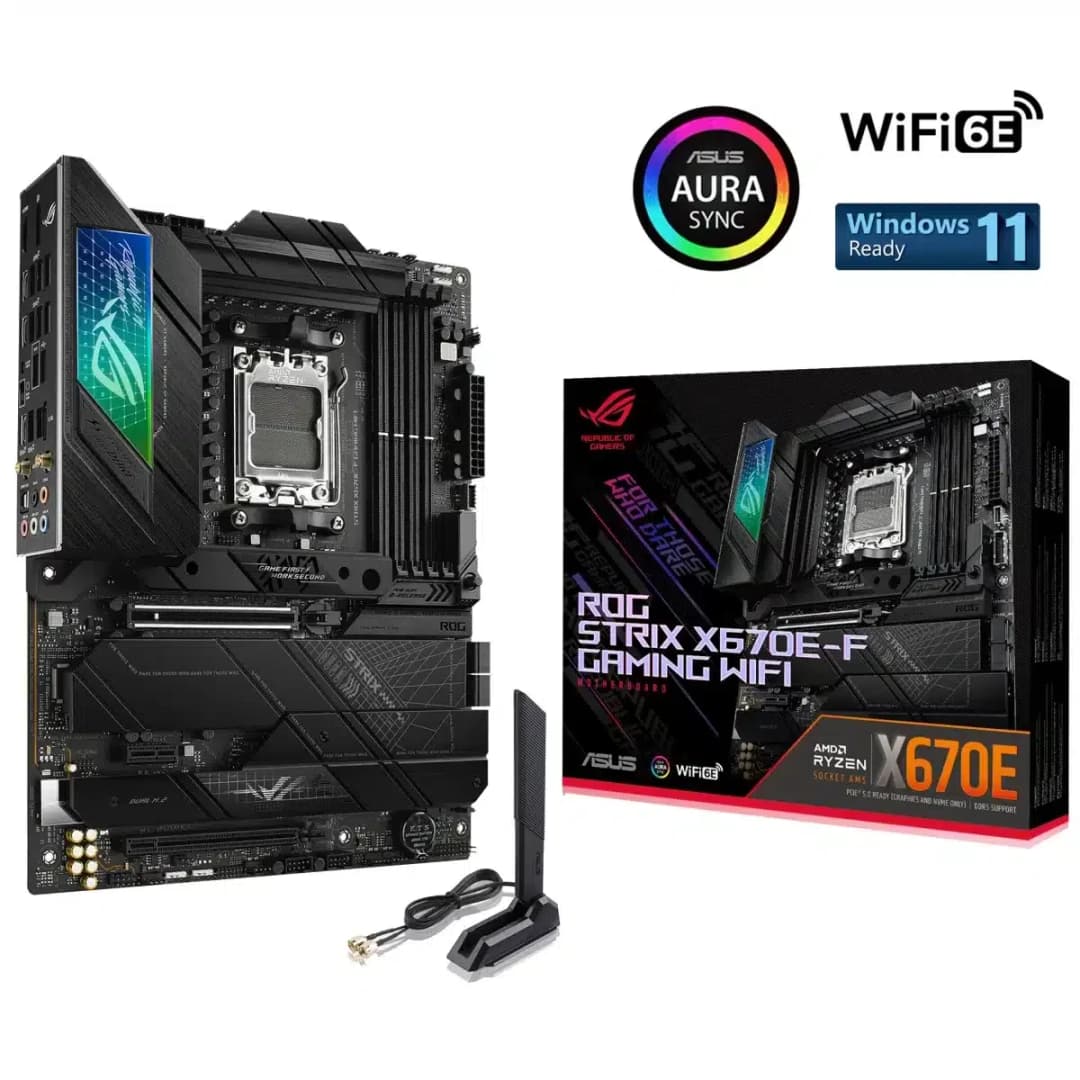

ROG STRIX X670E-F GAMING WIFI
The ROG Strix X670E-F Gaming WiFi is the stealthy alter ego of the Strix X670E-A. A substantial power buff relays its inner demon, giving exclusive ROG overclocking utilities even more headroom to unleash the potential of the AMD Ryzen 7000 Series processors. And its black PCB and dark metallic heatsinks aesthetically match a wider variety of system hardware and build themes, while a dash of customizable color on its shroud subtly announces an ROG presence in your AM5 build.
16 + 2 teamed power solution rated for 90A per stage
Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
AI Cooling II uniquely balances noise and thermals for your system with a single click
An x16 slot and two on-board M.2 slots are PCIe Gen 5-ready
6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
Easy installation for GPUs and SSDs, plus simple BIOS resets and updates
Faster-than-Gigabit WiFi unlocks access to the low-interference 6 GHz band
|
|
|
|
PCIE 5.0
Blazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to the top x16 extension slot, which includes a SafeSlot to support heavy graphics cards and a Q-release for easy upgrades.
|
DYNAMIC OC SWITCHER
Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher dynamically engages PBO or your preferred settings based on the CPU current or temperature, giving you the best of both worlds. Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance on both sides of the aisle.
|
CORE FLEX
Core Flex empowers you to smash limits farther than ever before by letting you control the clock, power, and thermals in creative new ways. In its simplest form, you can maximize the base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
|
|
|
|
DDR5 STRENGTH
For those who want to fly past stock DDR5 speeds, the Strix X670E-F is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
|
COOLING
VRM Heatsink Array
Two thick VRM heatsinks are connected by a heatpipe, sharing cooling capacity across VRMs and providing ample surface area and mass to handle the power needs of the high-performance AMD Ryzen 7000 Series processors.
High-Conducitivity Thermal Pads
High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
|
NETWORKING
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments. *WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
Intel 2.5G Ethernet
Onboard Intel 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.
|
|
|
|
SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software that provides superior audio. The ROG Strix X670E-F Gaming WiFi’s SupremeFX implementation features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones.
|
ID DESIGN
The ROG Strix X670E-F is the stealthiest in the lineup, pairing perfectly with most system hardware. A jet black PCB and matching metallic heatsinks give it a brooding aesthetic overall, while a splash of RGB lighting on the I/O shroud gives you the choice to blend into the shadows or announce your presence.
|
AURA SYNC
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
