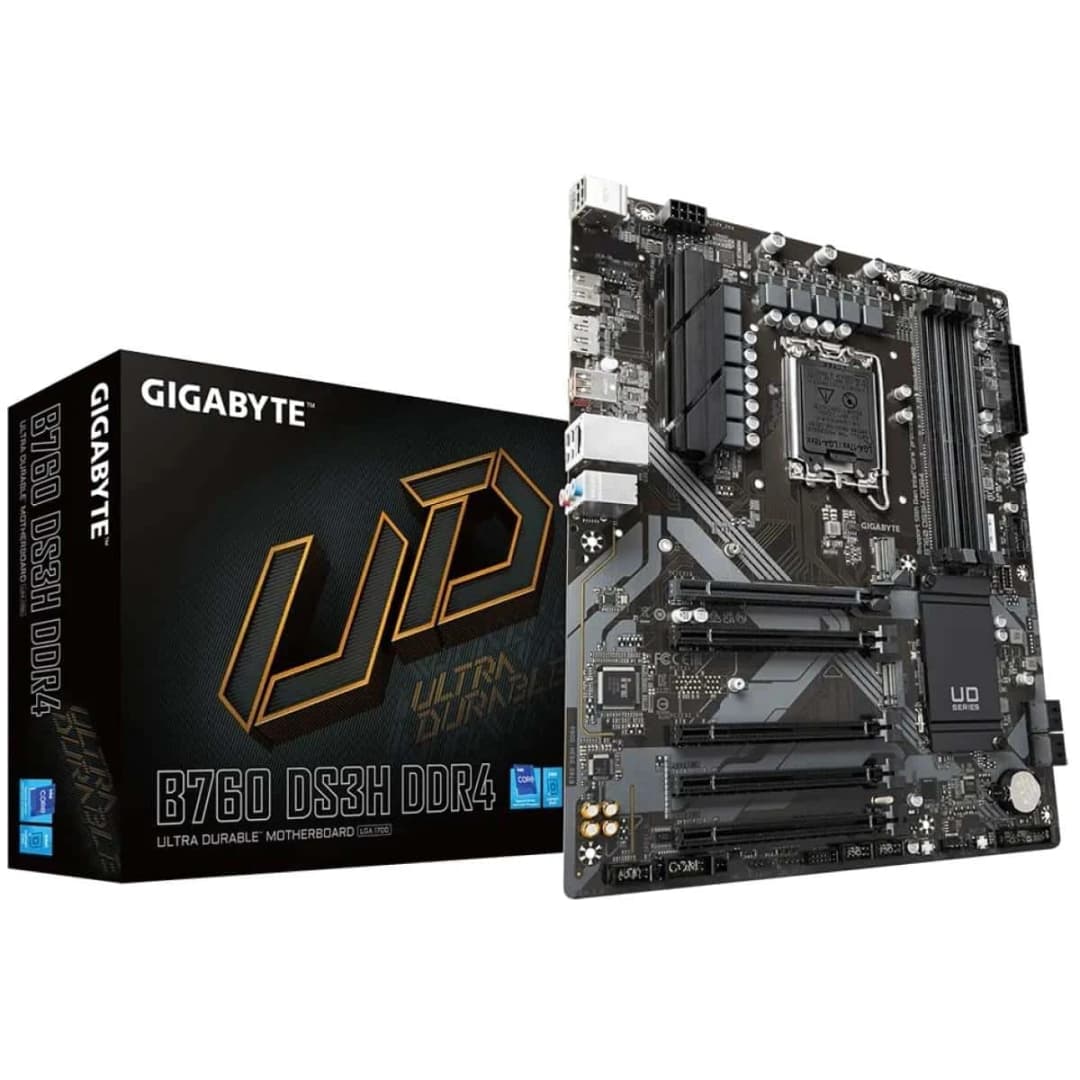

| Motherboard Specifications
| Supported Processors
| LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™
Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
| Chipset
| Intel® B760 Express Chipset
| Socket
| LGA1700
| Memory Type
| DDR4
| Memory Slots
| 4
| Maximum Memory
| 128GB
| Memory Bus Speed
| Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
| Ports
| 1 x PS/2 keyboard/mouse port
1 x USB Type-C® port
with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
| Form Factor
| ATX
| M.2 Slots
| Yes
| Expansion Slots
| CPU:
1 x M.2 connector (Socket 3
M key
type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:
1 x M.2 connector (Socket 3
M key
type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0
RAID 1
RAID 5
and RAID 10 support for SATA storage devices
