Product overview

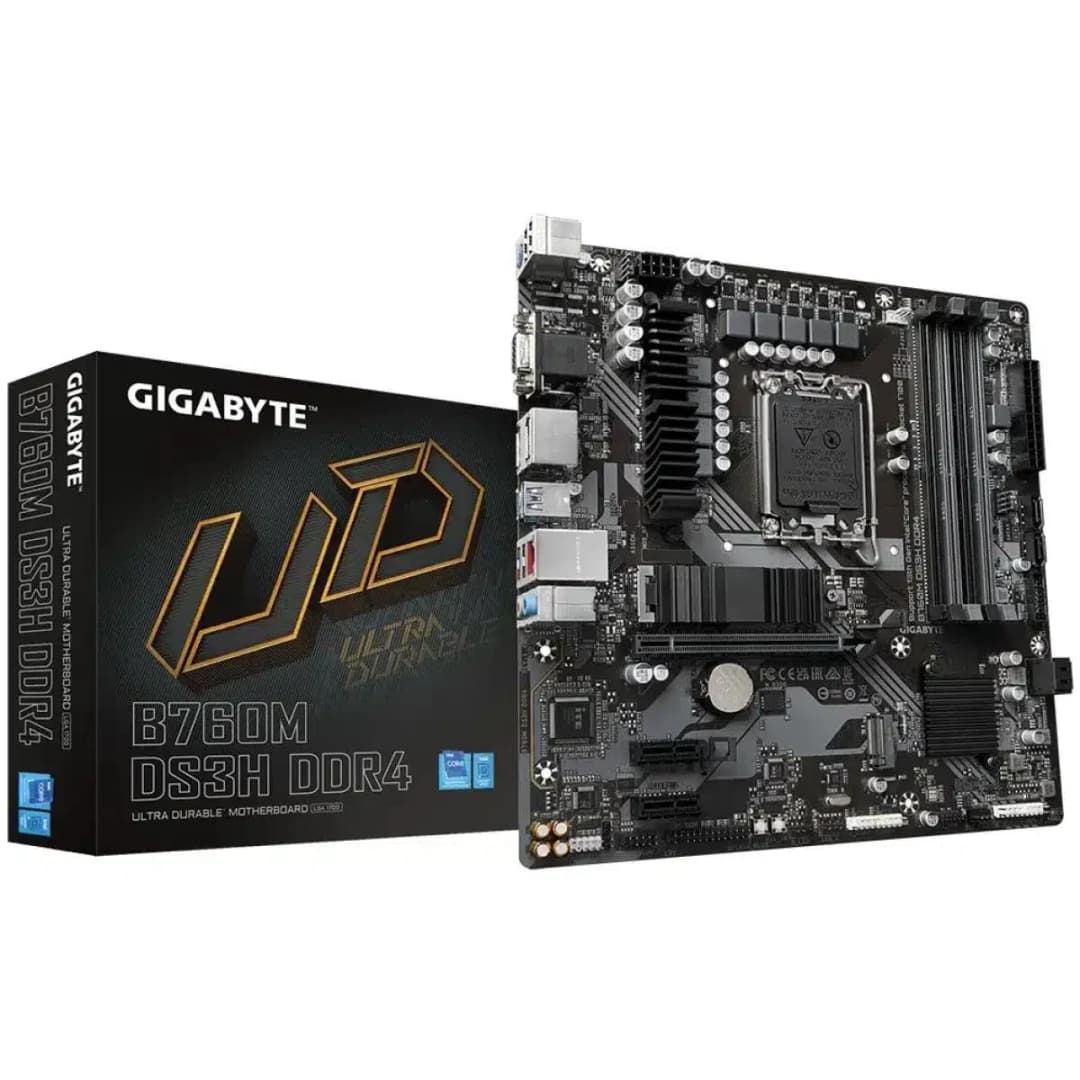

The GIGABYTE B760M DS3H DDR4 is a Micro-ATX motherboard for Intel LGA1700 processors (12th–14th Gen Core), built on the Intel B760 chipset.
Key features
It has 4 DDR4 DIMM slots supporting up to 128GB, with overclocked speeds up to 5333 MT/s.
Connectivity and storage include 2 M.2 slots for NVMe storage and Realtek 2.5GbE LAN networking.
Technical specifications
- Model: B760M DS3H DDR4
- Socket: LGA 1700
- Chipset: B760
- Form Factor: Micro-ATX
- RAM Type: DDR4
- RAM Slots: 4
- Max Memory: 128 GB
- M.2 Slots: 2
- Ethernet: Realtek 2.5GbE LAN
- Max Memory Speed: 5333 MT/s
- Primary PCIe Slot: PCIe 4.0
- SATA Ports: 4
- Video Outputs: 1 × HDMI, 1 × DisplayPort
