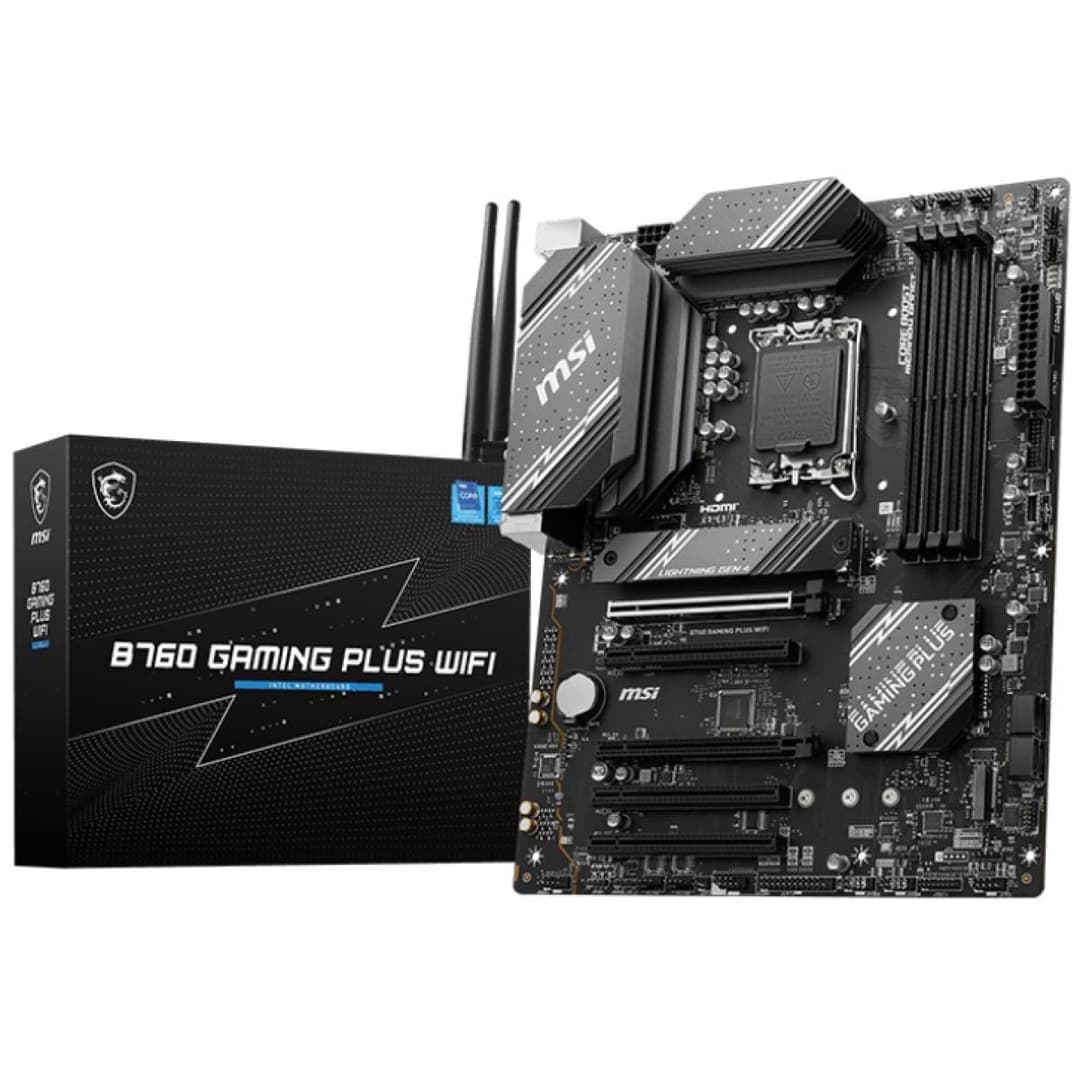

MSI B760 GAMING PLUS WIFI 6E ATX Gaming Motherboard – High-Speed, Stable Performance for Gamers and Professionals

The MSI B760 GAMING PLUS WIFI 6E ATX Gaming Motherboard is designed to support Intel’s 13th and 12th Gen processors, offering robust performance and connectivity in an ATX form factor. With DDR5 memory capability, PCIe 4.0 for enhanced graphics performance, and dual M.2 slots for rapid storage, this motherboard is ideal for gamers and content creators. Equipped with WiFi 6E and multiple USB options, the B760 GAMING PLUS delivers fast, stable connections and smooth, efficient multitasking.

Key Features of the MSI B760 GAMING PLUS WIFI 6E Motherboard

Intel 13th and 12th Gen Processor Compatibility – Supports Intel® Core™, Pentium® Gold, and Celeron® processors

DDR5 Memory Speeds Up to 6800+ MHz (O.C.) – Four DIMM slots supporting up to 192GB for high-speed multitasking

PCIe 4.0 x16 Slot – Optimized for the latest GPUs, delivering faster data transfer rates

WiFi 6E & 2.5G LAN – Fast, reliable internet with WiFi 6E and a 2.5G Ethernet port

2x M.2 Slots – High-speed storage for quick access and reduced load times

Comprehensive I/O Ports – Includes USB 3.2 Gen 2 Type-A and Type-C®, HDMI™, DisplayPort, and audio jacks

Efficient Performance with DDR5 and PCIe 4.0

With support for DDR5 memory speeds up to 6800+ MHz (O.C.) and a PCIe 4.0 x16 slot, the MSI B760 GAMING PLUS WIFI 6E provides fast and stable performance for gaming and demanding applications. Its dual-channel memory architecture and Intel® XMP 3.0 OC support allow for easy performance tuning, making it an excellent choice for both gamers and professionals.

Advanced Connectivity with WiFi 6E and Multiple USB Ports

This motherboard features the latest WiFi 6E technology, ensuring a reliable wireless connection. The I/O panel includes USB 3.2 Gen 2 Type-A and Type-C® ports, HDMI™, DisplayPort, and S/PDIF-OUT, allowing for flexible connectivity with peripherals and displays. The dual M.2 slots support high-speed SSDs, enabling faster data access for an improved gaming and multitasking experience.

Stable and Versatile Design for High-Performance Computing

Built on the Intel B760 chipset, the MSI B760 GAMING PLUS WIFI 6E is engineered for stable performance with advanced cooling solutions. Its ATX form factor accommodates powerful components, while multiple expansion slots provide versatility for future upgrades and custom builds.

Upgrade Your Setup with the MSI B760 GAMING PLUS WIFI 6E for Fast, Reliable Performance

With Intel 13th Gen support, DDR5, PCIe 4.0, and WiFi 6E, the MSI B760 GAMING PLUS WIFI 6E is ideal for modern gaming and professional setups. Order today to build a system optimized for speed, stability, and connectivity.

View All MSI Products

| Motherboard Specifications

| Supported Processors

| Supports 12th/13th Gen Intel® Core™ Processors

Pentium® Gold and Celeron® ProcessorsLGA 1700

| Chipset

| Intel® B760 Express Chipset

| Socket

| LGA1700

| Memory Type

| DDR5

| Memory Slots

| 4

| Maximum Memory

| 192GB

| Memory Bus Speed

| 4x DDR5

Maximum Memory Capacity 192GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC

un-buffered memory

| Ports

| Keyboard / MouseDisplayPort2.5G LANUSB 2.0Wi-Fi / BluetoothAudio ConnectorsUSB 2.0HDMI™USB 3.2 Gen 2 10Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-C)S/PDIF-OUT

| Form Factor

| ATX

| M.2 Slots

| Yes

| Expansion Slots

| 5x PCI-E x16 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
