MSI PRO X870E-P WIFI AM5 ATX Motherboard DDR5 PCIe 5.0 Wi-Fi 7

MSI PRO X870E-P WIFI

Professional Performance on the AMD AM5 Platform

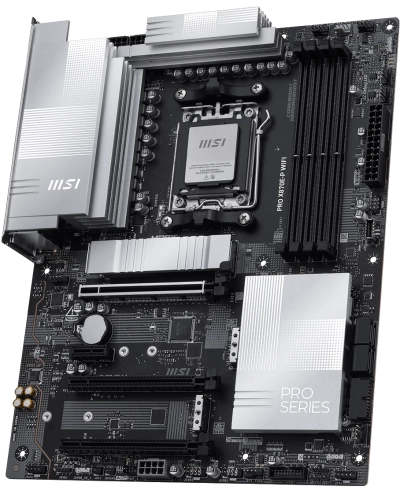

The MSI PRO X870E-P WIFI is a full-size ATX motherboard built for AMD’s AM5 platform, using the X870E chipset and supporting AMD Ryzen 9000, 8000, and 7000 Series desktop processors. It is designed for users who want a clean, modern motherboard that can handle high-end gaming, heavy multitasking, content creation, and powerful everyday workstation use without sacrificing connectivity or upgrade potential.

Strong Power Delivery for Demanding CPUs

MSI equips this board with a 14+2+1 Duet Rail Power System and dual 8-pin CPU power connectors, which gives it the foundation needed for modern Ryzen processors, including higher-end chips. That makes it a strong match for users building around powerful AM5 CPUs and wanting stable performance under long gaming sessions, creator workloads, or sustained heavy productivity use. The overall design is aimed at dependable operation with room for serious hardware around it.

DDR5 Memory Support for Modern Builds

For memory, the PRO X870E-P WIFI includes 4 DDR5 DIMM slots with support for up to 256GB total memory capacity. MSI lists support for DDR5 speeds from 5600 to 4800 MT/s under JEDEC and up to 8200+ MT/s in overclocked configurations, with AMD EXPO support and dual-channel memory operation. This gives builders a strong platform for fast, responsive systems that can handle gaming, streaming, creative software, and future upgrades with ease.

PCIe 5.0 and Fast Storage Support

This motherboard is built for modern bandwidth demands. It includes a primary PCIe 5.0 x16 slot from the CPU for high-performance graphics cards, along with additional expansion slots for other devices. Storage support includes 3 M.2 slots and 4 SATA 6Gb/s ports, with the main M.2 slot supporting PCIe 5.0 x4 speeds and the other M.2 slots supporting PCIe 4.0 x4. That makes it an excellent choice for users who want fast boot drives, high-speed game storage, and plenty of room for expanding their system over time.

Advanced Connectivity with Wi-Fi 7 and 5G LAN

One of the biggest strengths of the MSI PRO X870E-P WIFI is its connectivity package. It features built-in Wi-Fi 7 and Bluetooth 5.4, with support for 2.4GHz, 5GHz, and 6GHz bands, plus a Realtek 5G LAN port for fast wired networking. For builders who want strong wireless performance, low-latency online gaming, and fast downloads without adding extra cards, this board already comes ready with next-generation networking built in.

High-Speed USB and Display Options

MSI also gives this board a very strong rear I/O setup. It includes a rear USB 40Gbps Type-C port, a rear USB 20Gbps Type-C port, rear USB 10Gbps Type-A ports, rear USB 5Gbps Type-A ports, and rear USB 2.0 ports. For video output, the board includes HDMI 2.1 and a USB4 Type-C display output path that supports DisplayPort 1.4 over USB Type-C when using a processor with integrated graphics. This makes the motherboard flexible for productivity displays, troubleshooting, and modern external devices.

Cooling and Build-Friendly Design

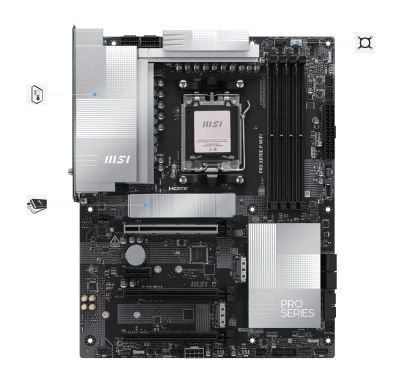

The PRO X870E-P WIFI is not just about specs on paper. MSI highlights an extended heatsink design, EZ M.2 Shield Frozr II, pump fan support, PCIe Steel Armor, and an 8-layer server-grade PCB with 2oz thickened copper. These details matter in real builds because they help with thermal handling, durability, and easier installation of modern hardware. The silver-and-black appearance also makes it easy to pair with both white and dark themed PC builds, so it looks clean inside a premium case.

A Smart Choice for Premium AM5 Systems

If you want an AM5 motherboard that balances professional styling with high-end features, the MSI PRO X870E-P WIFI is a very strong option. It combines a modern X870E platform, strong power delivery, DDR5 support, PCIe 5.0 graphics and storage capability, Wi-Fi 7, 5G LAN, fast USB connectivity, and solid cooling features in one ATX board. For a premium Ryzen build focused on performance, stability, and long-term value, this motherboard fits extremely well.
