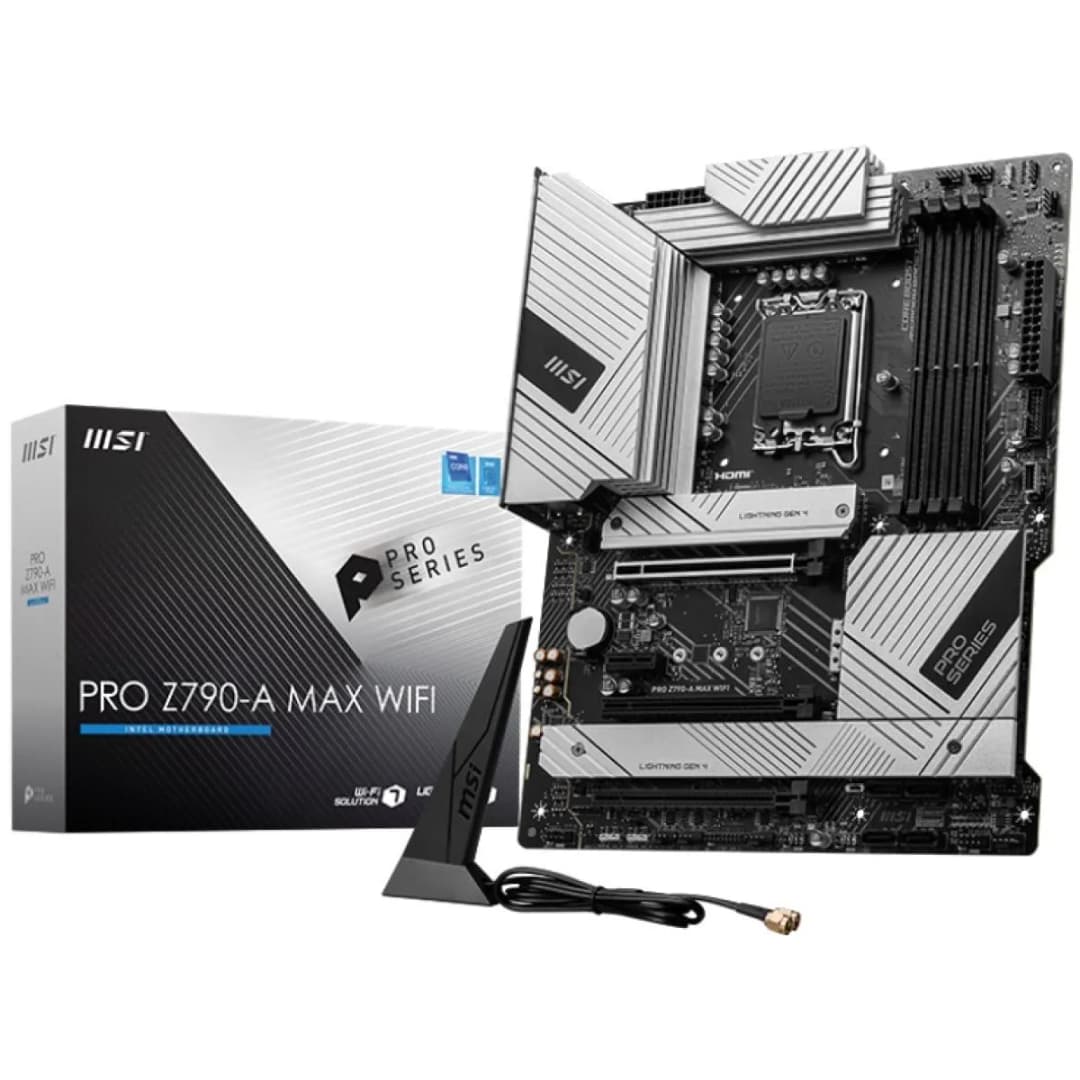

MSI PRO Z790-A MAX WiFi 7 ATX Gaming Motherboard – High-Speed, Stable, and Optimized for Gaming and Workstations

The MSI PRO Z790-A MAX WiFi 7 ATX Gaming Motherboard is built for serious gamers, creators, and professionals requiring high performance. Supporting Intel’s 14th, 13th, and 12th Gen processors on the LGA1700 socket, this motherboard combines DDR5 memory, PCIe 5.0 for high-end graphics, and WiFi 7 for seamless connectivity. With 4 M.2 slots, extensive USB options, and a durable ATX form factor, the MSI PRO Z790-A MAX delivers speed, stability, and flexibility for advanced setups.

Key Features of the MSI PRO Z790-A MAX WiFi 7 Motherboard

Intel 14th, 13th, and 12th Gen Processor Compatibility – Supports Intel® Core™, Pentium® Gold, and Celeron® processors

DDR5 Memory Speeds Up to 7800+ MHz (O.C.) – Four DIMM slots supporting up to 192GB for high-performance multitasking

PCIe 5.0 x16 Slot – Future-proofed for next-gen GPUs with enhanced bandwidth

WiFi 7 & 2.5G LAN – Ultra-fast internet connectivity with the latest WiFi 7 technology and 2.5G Ethernet

4x M.2 Slots – Extensive high-speed storage options for faster data access and load times

Comprehensive I/O Connectivity – Features USB 3.2 Gen 2×2, HDMI, DisplayPort, USB Type-C®, and more

Powerful DDR5 and PCIe 5.0 Capabilities for High-Performance Setups

The MSI PRO Z790-A MAX provides support for DDR5 memory speeds up to 7800+ MHz (O.C.), making it a powerful choice for high-speed computing. The PCIe 5.0 x16 slot allows for optimal performance with the latest GPUs, ensuring that this motherboard can handle intensive gaming, content creation, and professional workloads with ease.

Advanced Connectivity with WiFi 7 and Multiple USB Ports

With the latest WiFi 7 technology, the MSI PRO Z790-A MAX offers ultra-fast wireless connections for gaming, streaming, and multitasking. The I/O panel includes a wide array of ports, such as USB 3.2 Gen 2×2, USB Type-C®, HDMI, and DisplayPort, providing flexibility for peripherals, displays, and high-speed data transfer.

Engineered for Reliability and Versatile Expansion

Built on the Intel Z790 chipset, the MSI PRO Z790-A MAX features a robust power delivery system, cooling solutions, and support for XMP memory profiles, allowing for easy overclocking. Its ATX form factor ensures compatibility with a variety of cases and supports advanced cooling solutions for long-lasting performance.

Upgrade Your System with the MSI PRO Z790-A MAX WiFi 7 for Ultimate Connectivity and Power

With advanced features like DDR5 support, PCIe 5.0, and WiFi 7, the MSI PRO Z790-A MAX is designed for high-performance computing needs. Order yours today and build a system that’s ready for future advancements in gaming and professional workloads.

View All MSI Products

| Motherboard Specifications

| Supported Processors

| Support Intel® Core™ 14th/ 13th/ 12th Gen Processors

Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700

| Chipset

| Intel® Z790 Express Chipset

| Socket

| LGA1700

| Memory Type

| DDR5

| Memory Slots

| 4

| Maximum Memory

| 192GB

| Memory Bus Speed

| 4x DDR5 UDIMM

Maximum Memory Capacity 192GBMemory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7800+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHz

| Ports

| DisplayPortUSB 2.02.5G LANWi-Fi / BluetoothAudio ConnectorsHDMI™Flash BIOS ButtonUSB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-A)USB 3.2 Gen 2×2 20Gbps (Type-C)S/PDIF-OUT

| Form Factor

| ATX

| M.2 Slots

| Yes

| Expansion Slots

| 3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
