Product overview

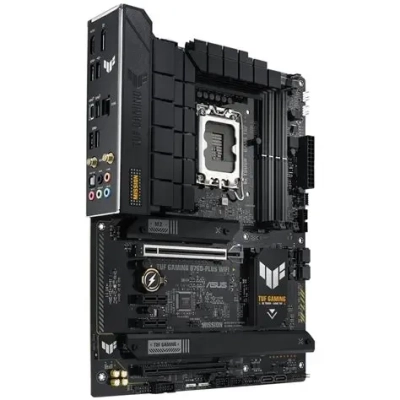

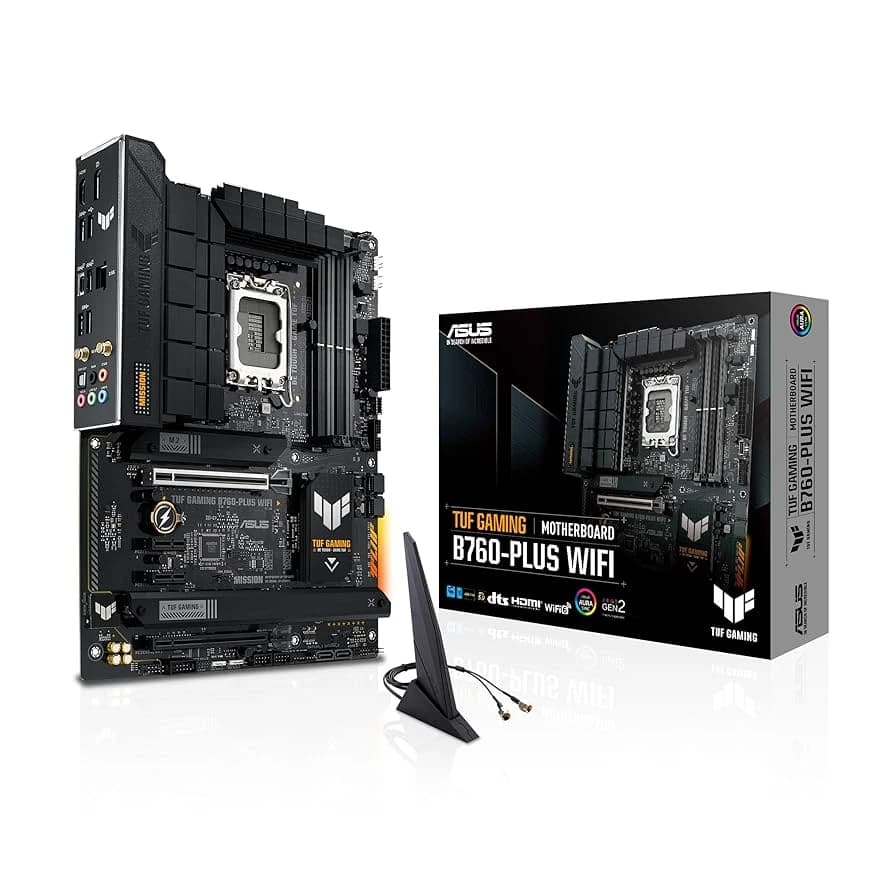

The ASUS TUF GAMING B760-PLUS WIFI is an ATX motherboard for Intel LGA1700 processors (12th–14th Gen Core), built on the Intel B760 chipset.
Key features
It has 4 DDR5 DIMM slots supporting up to 192GB, with overclocked speeds up to 7200 MT/s.
Connectivity and storage include 3 M.2 slots for NVMe storage, Realtek 2.5Gb Ethernet networking and Wi-Fi 6 wireless.
Technical specifications
- Model: TUF GAMING B760-PLUS WIFI
- Socket: LGA 1700
- Chipset: B760
- Form Factor: ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 6
- Max Memory: 192 GB
- M.2 Slots: 3
- Ethernet: Realtek 2.5Gb Ethernet
- Max Memory Speed: 7200 MT/s
- Primary PCIe Slot: PCIe 5.0
- SATA Ports: 4
- Bluetooth: Bluetooth 5.2
- Video Outputs: 1 × HDMI, 1 × DisplayPort
Platform
| Model | TUF GAMING B760-PLUS WIFI |
|---|---|
| Socket | LGA 1700 |
| Chipset | B760 |
| Form Factor | ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 4 |
| Max Memory | 192 GB |
| Max Memory Speed | 7200 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 5.0 |
|---|---|
| M.2 Slots | 3 |
| SATA Ports | 4 |
Connectivity
| Ethernet | Realtek 2.5Gb Ethernet |
|---|---|
| Wi-Fi | Wi-Fi 6 |
| Bluetooth | Bluetooth 5.2 |
| Video Outputs | 1 × HDMI, 1 × DisplayPort |
