Product overview

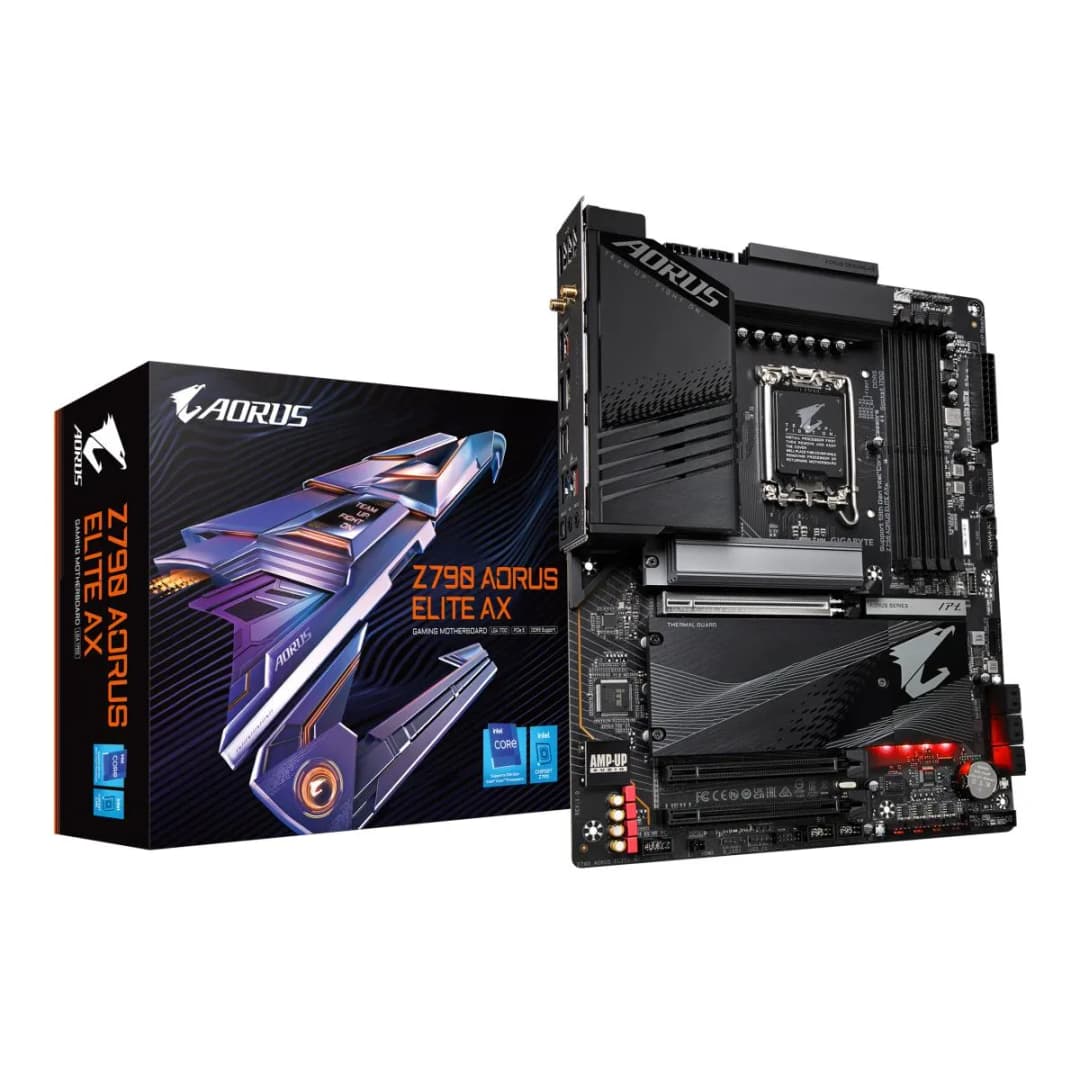

The GIGABYTE Z790 AORUS ELITE AX is an ATX motherboard for Intel LGA1700 processors (12th–14th Gen Core), built on the Intel Z790 chipset.
Key features
It has 4 DDR5 DIMM slots supporting up to 256GB, with overclocked speeds up to 7600 MT/s.
Connectivity and storage include 4 M.2 slots for NVMe storage, Realtek 2.5GbE LAN networking and Wi-Fi 6E wireless.
Technical specifications
- Model: Z790 AORUS ELITE AX
- Socket: LGA 1700
- Chipset: Z790
- Form Factor: ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 6E
- Max Memory: 256 GB
- M.2 Slots: 4
- Ethernet: Realtek 2.5GbE LAN
- Max Memory Speed: 7600 MT/s
- Primary PCIe Slot: PCIe 5.0
- SATA Ports: 6
- Bluetooth: Bluetooth 5.3
- Video Outputs: 1 × HDMI, 1 × DisplayPort
