Product overview

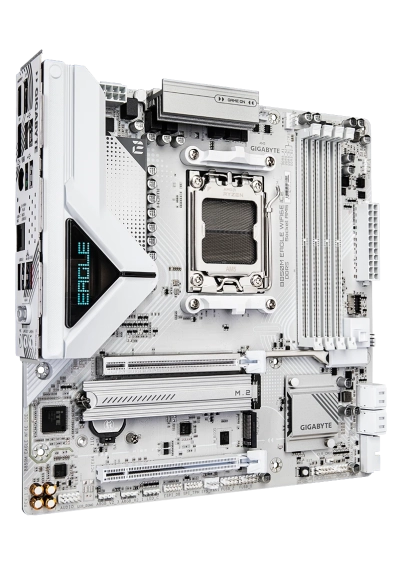

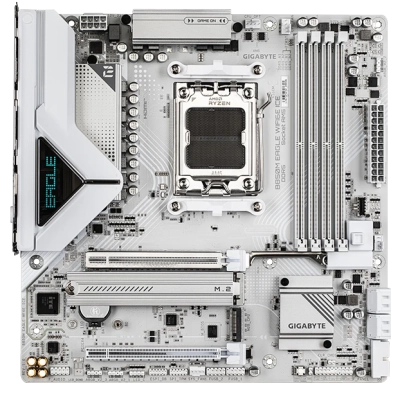

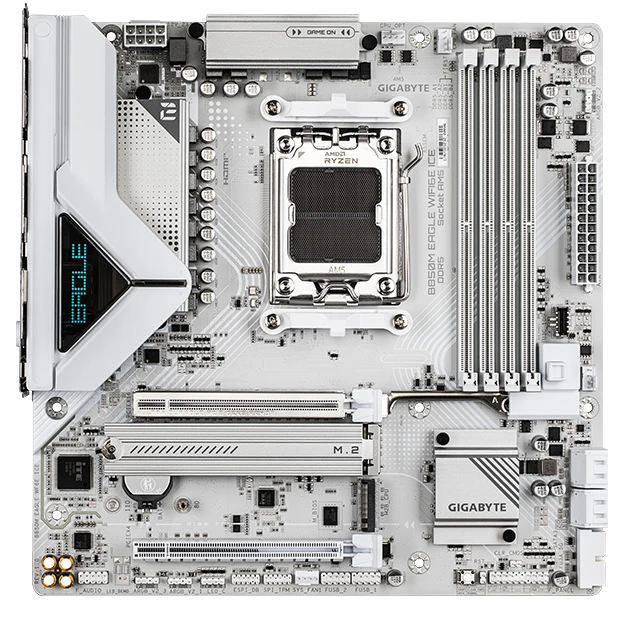

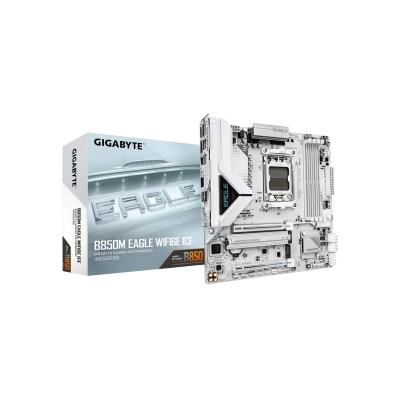

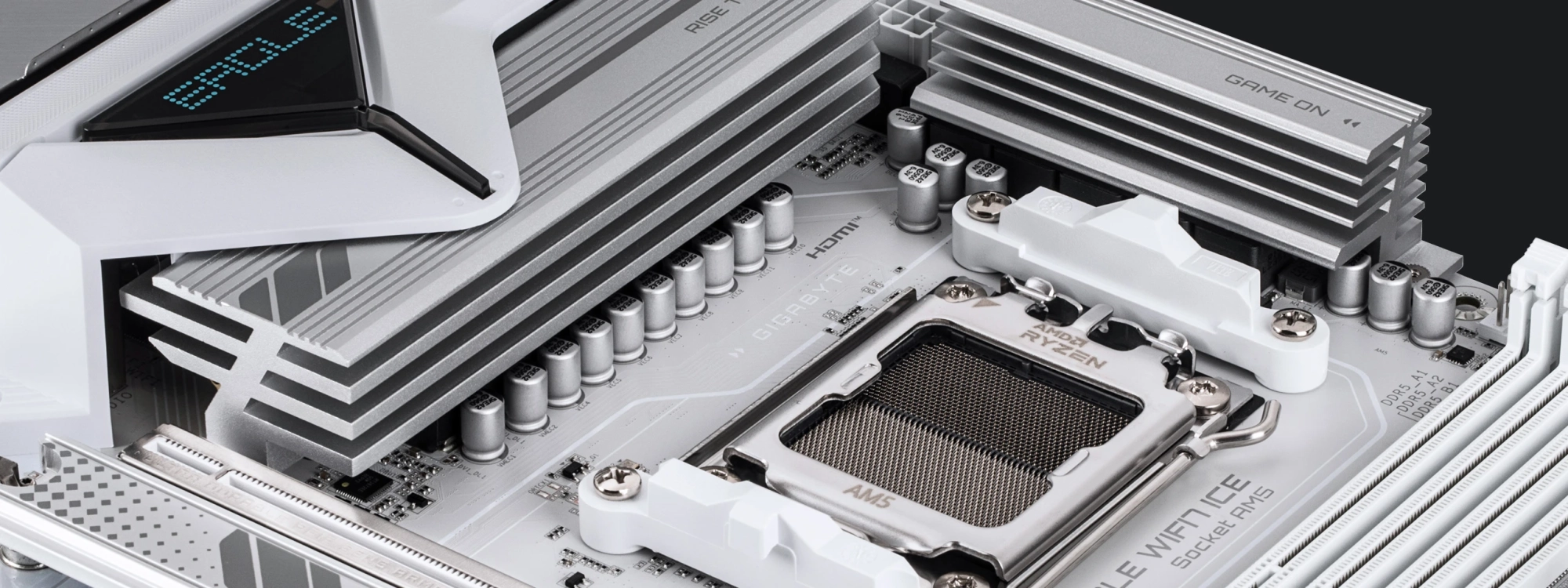

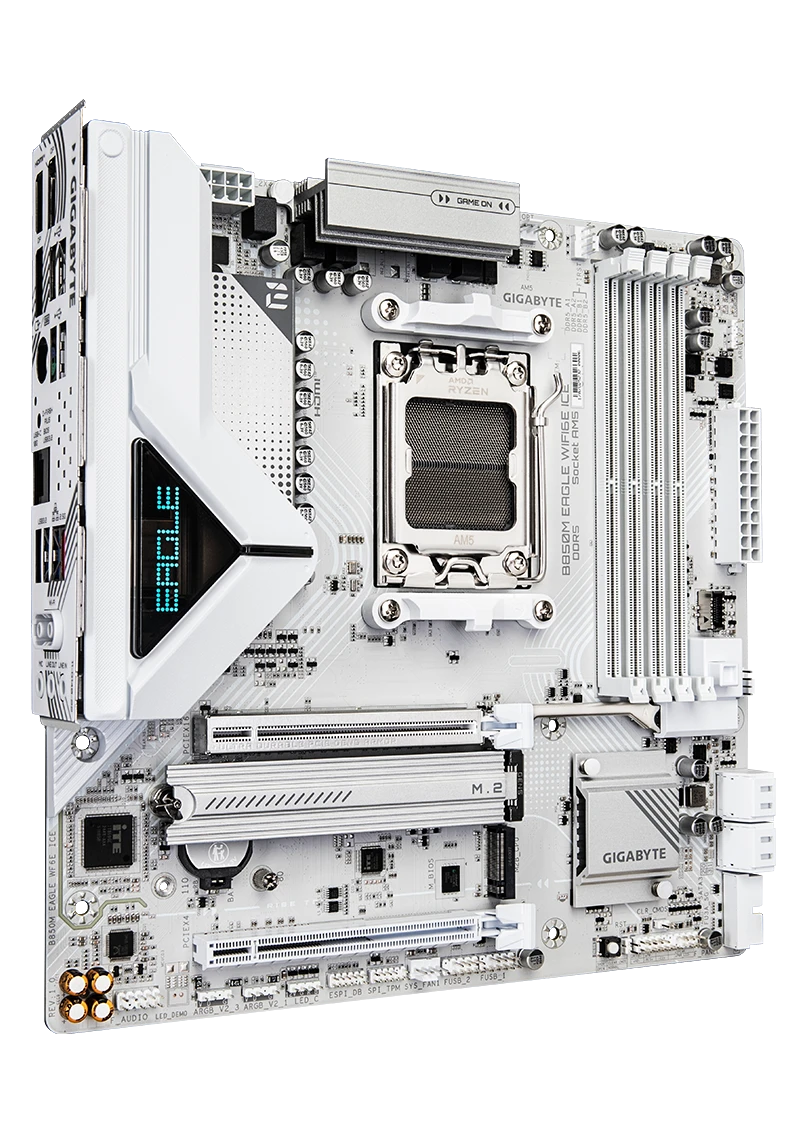

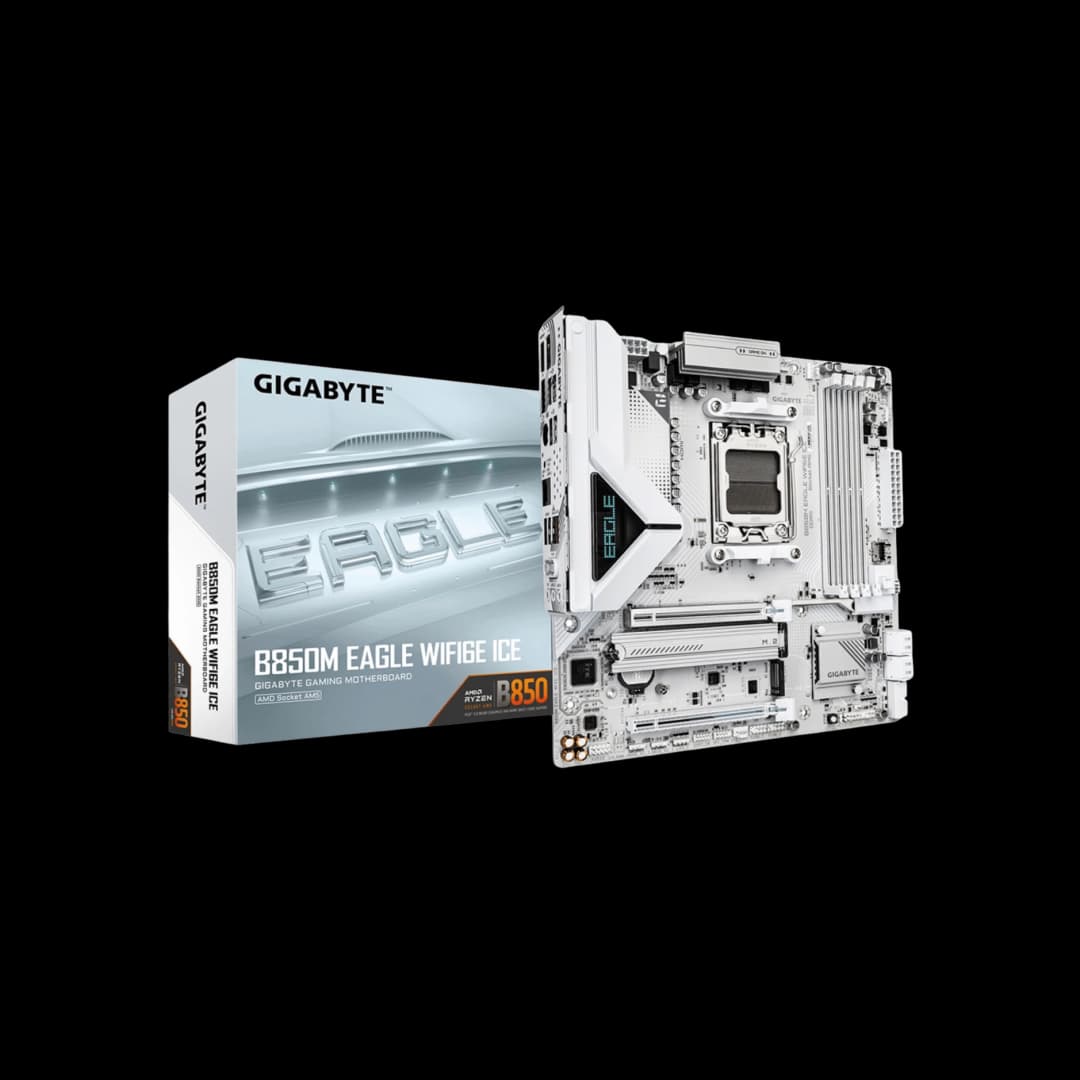

The GIGABYTE B850M EAGLE WIFI6E ICE is a Micro-ATX motherboard for AMD Socket AM5 processors, built on the AMD B850 chipset.
Key features
It has 4 DDR5 DIMM slots supporting up to 256GB, with overclocked speeds up to 8200 MT/s.
Connectivity and storage include 2 M.2 slots for NVMe storage, Realtek 2.5GbE LAN networking and Wi-Fi 6E wireless.
Technical specifications
- Model: B850M EAGLE WIFI6E ICE
- Socket: AM5
- Chipset: B850
- Form Factor: Micro-ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 6E
- Max Memory: 256 GB
- M.2 Slots: 2
- Ethernet: Realtek 2.5GbE LAN
- Max Memory Speed: 8200 MT/s
- Primary PCIe Slot: PCIe 5.0
- SATA Ports: 4
- Bluetooth: Bluetooth 5.3
- Video Outputs: 1 × HDMI, 2 × DisplayPort
Platform
| Model | B850M EAGLE WIFI6E ICE |
|---|---|
| Socket | AM5 |
| Chipset | B850 |
| Form Factor | Micro-ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 4 |
| Max Memory | 256 GB |
| Max Memory Speed | 8200 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 5.0 |
|---|---|
| M.2 Slots | 2 |
| SATA Ports | 4 |
Connectivity
| Ethernet | Realtek 2.5GbE LAN |
|---|---|
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Video Outputs | 1 × HDMI, 2 × DisplayPort |
