Product overview

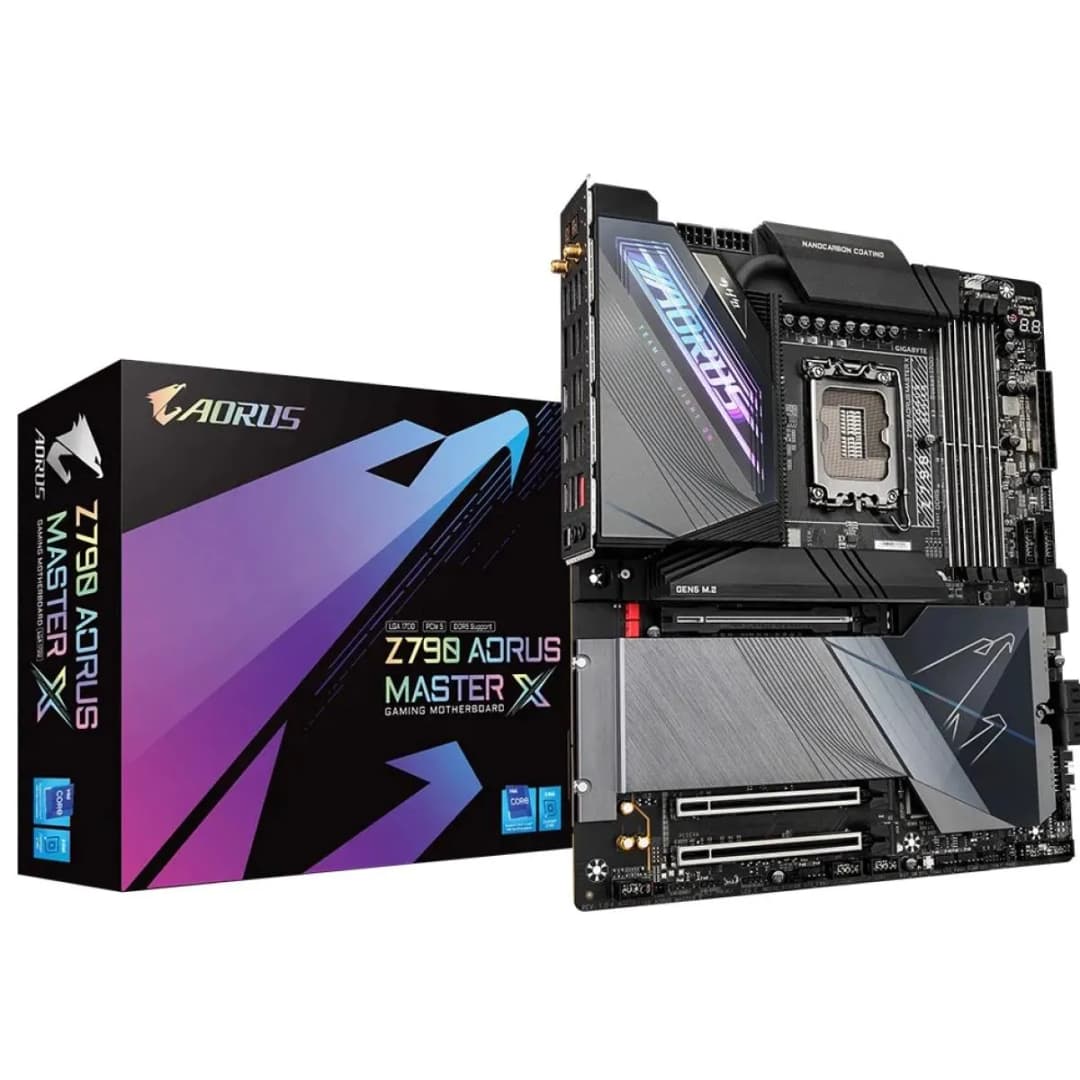

The GIGABYTE Z790 AORUS MASTER X is an E-ATX motherboard for Intel LGA1700 processors (12th–14th Gen Core), built on the Intel Z790 chipset.
Key features
It has 4 DDR5 DIMM slots supporting up to 256GB, with overclocked speeds up to 8266 MT/s.
Connectivity and storage include 5 M.2 slots for NVMe storage and Wi-Fi 7 wireless.
Technical specifications
- Model: Z790 AORUS MASTER X
- Socket: LGA 1700
- Chipset: Z790
- Form Factor: E-ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 7
- Max Memory: 256 GB
- M.2 Slots: 5
- Max Memory Speed: 8266 MT/s
- Primary PCIe Slot: PCIe 5.0
- SATA Ports: 4
- Bluetooth: Bluetooth 5.4
- Video Outputs: 1 × DisplayPort
Platform
| Model | Z790 AORUS MASTER X |
|---|---|
| Socket | LGA 1700 |
| Chipset | Z790 |
| Form Factor | E-ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 4 |
| Max Memory | 256 GB |
| Max Memory Speed | 8266 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 5.0 |
|---|---|
| M.2 Slots | 5 |
| SATA Ports | 4 |
Connectivity
| Wi-Fi | Wi-Fi 7 |
|---|---|
| Bluetooth | Bluetooth 5.4 |
| Video Outputs | 1 × DisplayPort |
