Product overview

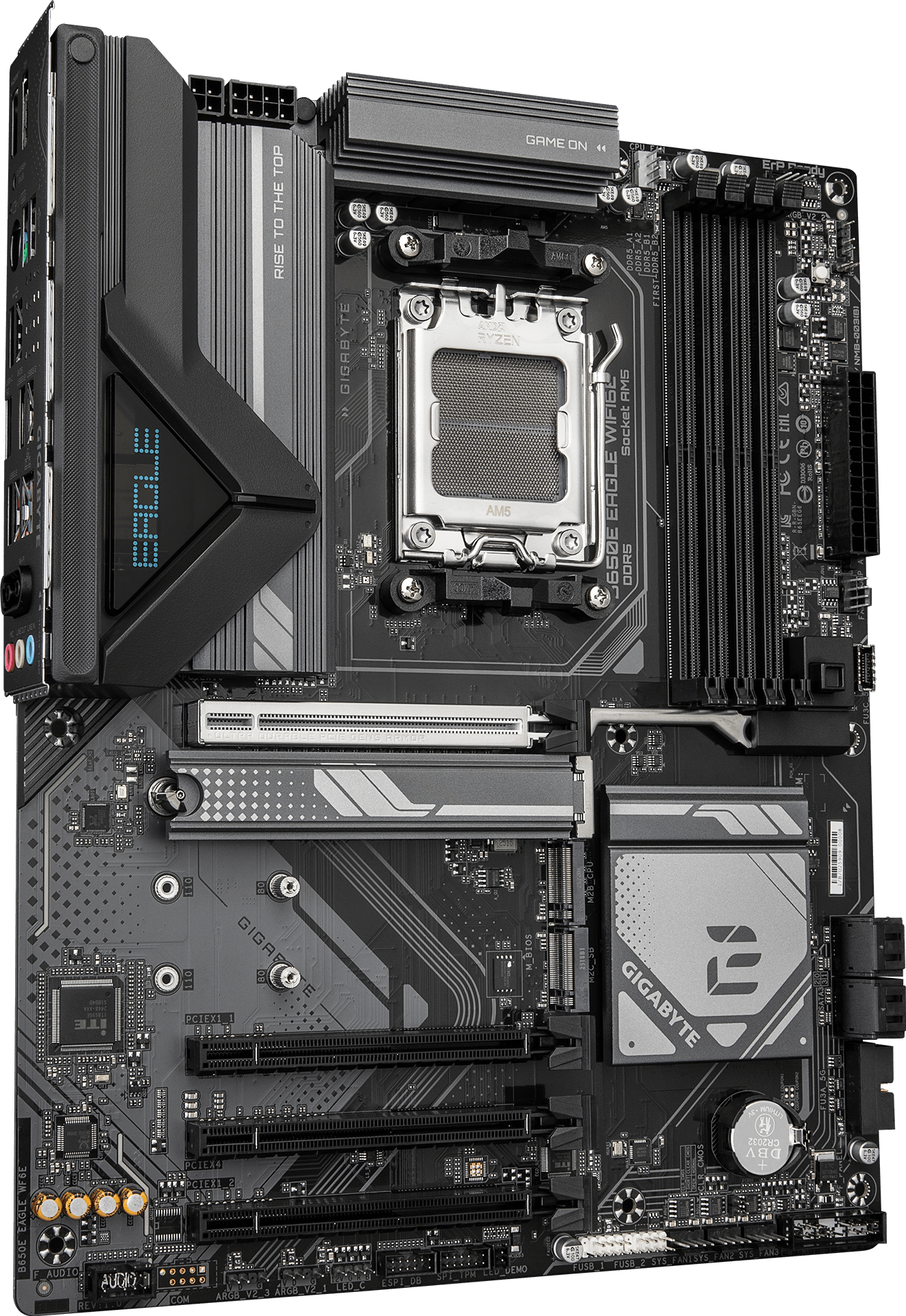

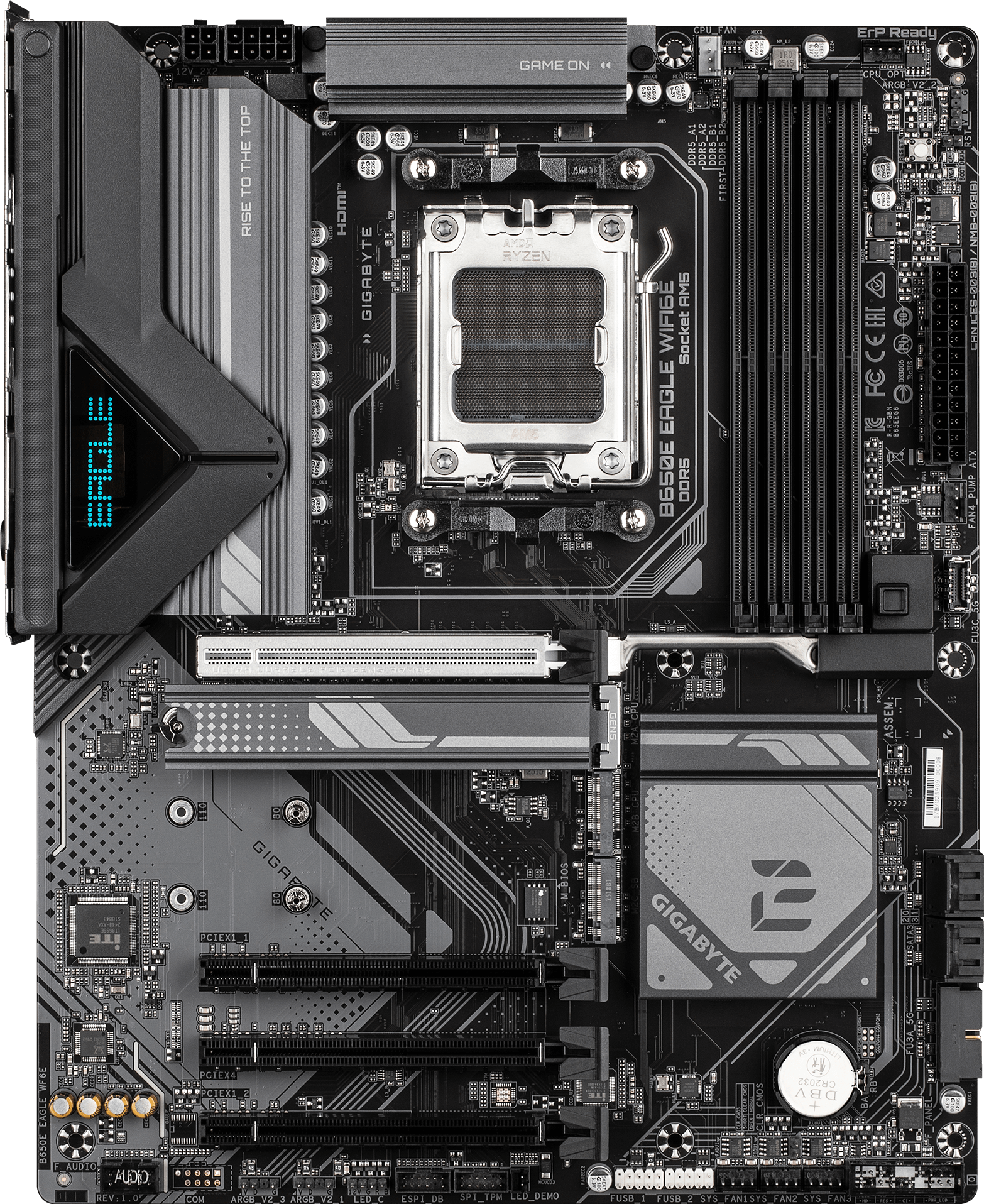

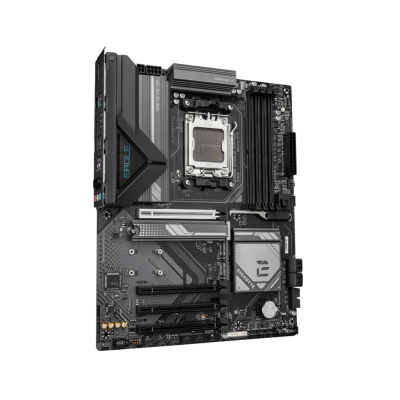

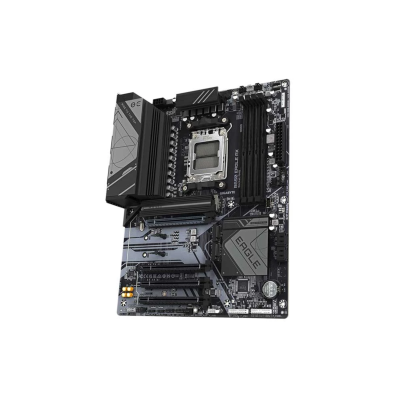

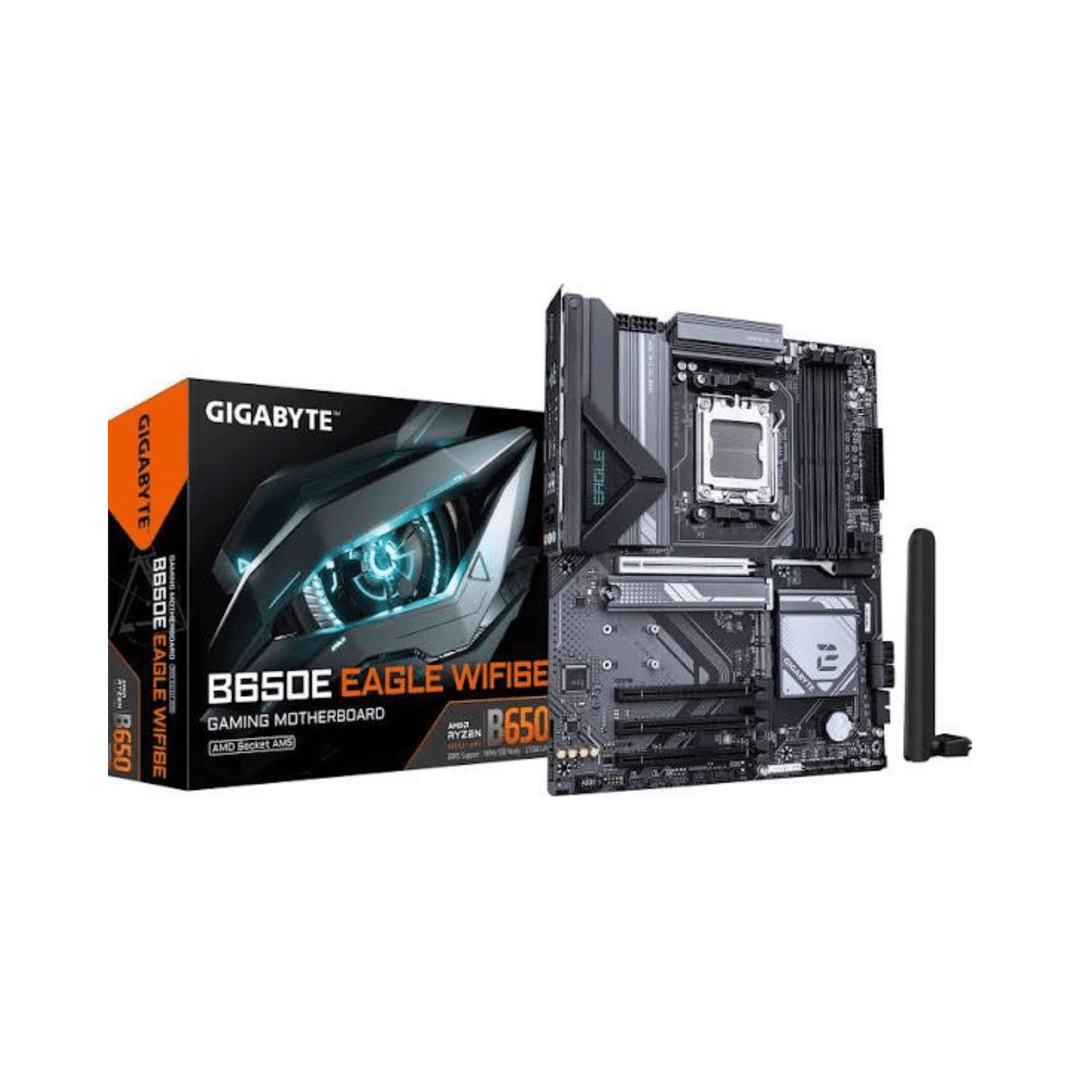

The GIGABYTE B650E EAGLE WIFI6E is an ATX motherboard for Socket AM5, supporting AMD Ryzen 9000, 8000 and 7000 series desktop processors. GIGABYTE lists the chipset as AMD B650; with Ryzen 9000/7000 processors the main x16 slot runs at PCIe 5.0.
Key features
Four DDR5 DIMM sockets support up to 256GB in dual-channel mode, with speeds up to DDR5-8200 (OC) and AMD EXPO and Intel XMP memory profiles.
There are three M.2 slots: the first CPU-connected slot supports PCIe 5.0 x4 SSDs with Ryzen 9000/7000 processors, the second CPU-connected slot runs at PCIe 4.0 x4, and the third runs from the chipset at PCIe 4.0 x2. Four SATA 6Gb/s ports are also provided.
Networking is handled by a Realtek 2.5GbE LAN chip and a Wi-Fi 6E module with Bluetooth 5.3, covering the 2.4, 5 and 6GHz bands.
Technical specifications
- Model: B650E EAGLE WIFI6E
- Socket: AM5
- Chipset: B650
- Form Factor: ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 6E
- Max Memory: 256 GB
- M.2 Slots: 3
- Ethernet: Realtek 2.5GbE
- Max Memory Speed: 8200 MT/s
- Primary PCIe Slot: PCIe 5.0
- SATA Ports: 4
- Bluetooth: Bluetooth 5.3
- Video Outputs: 1 × HDMI, 1 × DisplayPort
Platform
| Model | B650E EAGLE WIFI6E |
|---|---|
| Socket | AM5 |
| Chipset | B650 |
| Form Factor | ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 4 |
| Max Memory | 256 GB |
| Max Memory Speed | 8200 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 5.0 |
|---|---|
| M.2 Slots | 3 |
| SATA Ports | 4 |
Connectivity
| Ethernet | Realtek 2.5GbE |
|---|---|
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |

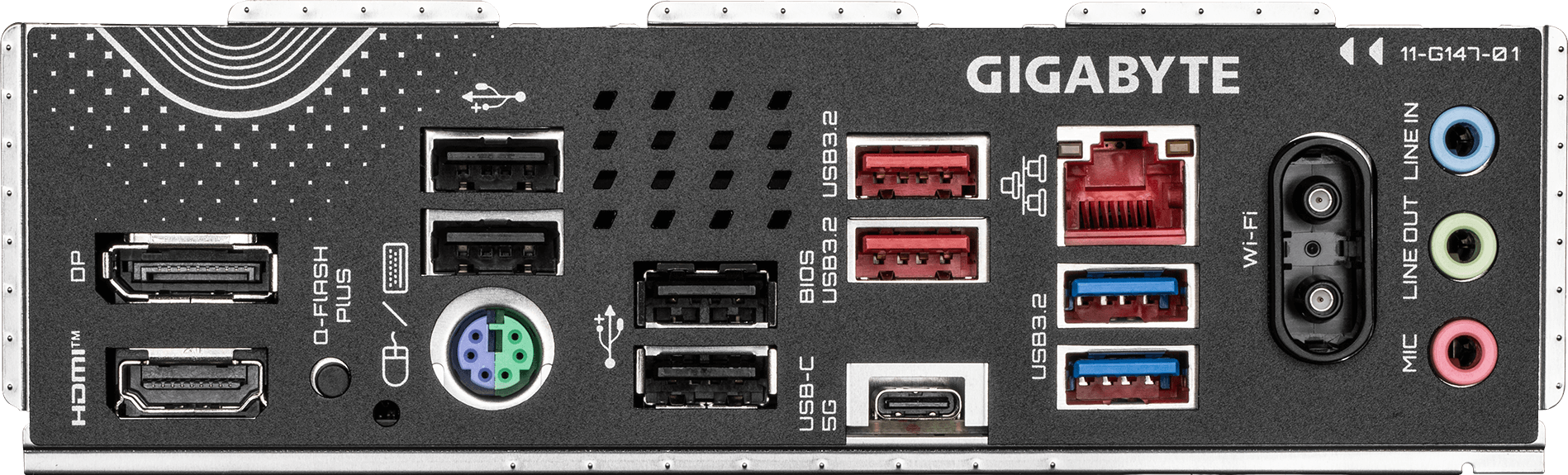

| Rear USB | USB 3.2 Gen 2 Type-C / USB 3.2 Gen 2 Type-A / USB 3.2 Gen 1 / USB 2.0 |
| Video Outputs | 1 × HDMI, 1 × DisplayPort |
