Product overview

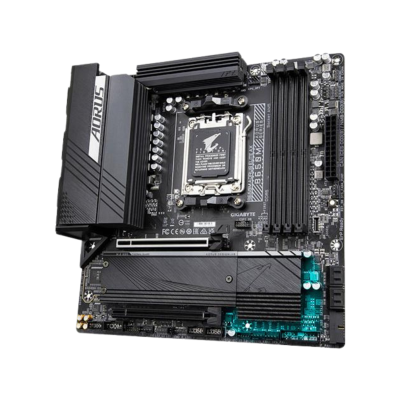

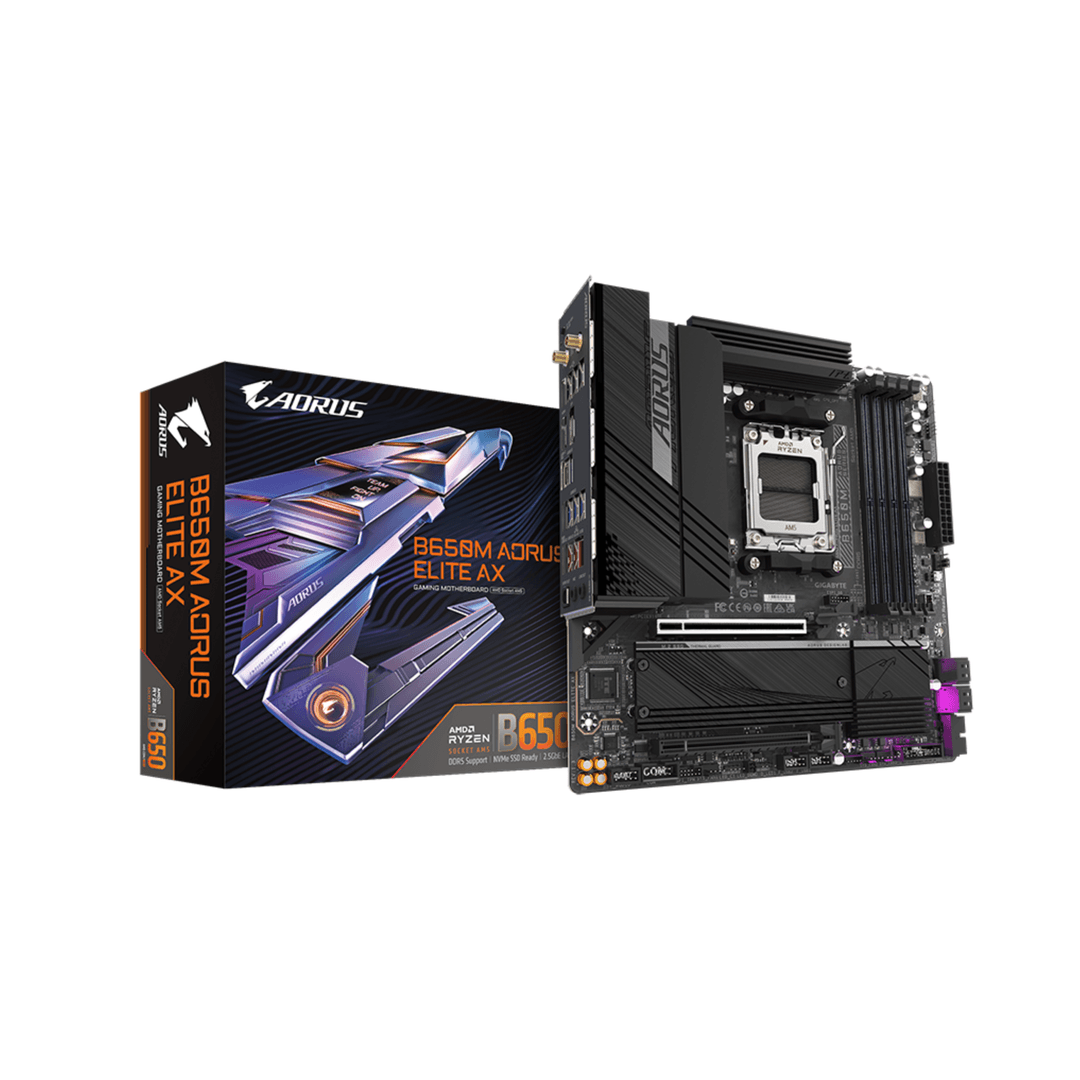

The GIGABYTE B650M AORUS ELITE AX is a Micro-ATX motherboard for Socket AM5 on the AMD B650 chipset, supporting AMD Ryzen 9000, 8000 and 7000 series desktop processors.
Key features
Four DDR5 DIMM slots support up to 256GB in dual-channel mode, with AMD EXPO and Intel XMP profiles.
It has two CPU-connected M.2 slots: the first supports PCIe 5.0 x4 SSDs with Ryzen 7000/9000 processors and the second runs at PCIe 4.0 x4.
Networking includes a Realtek 2.5GbE LAN chip and Wi-Fi 6E with Bluetooth; the Wi-Fi module varies by board revision.
Technical specifications
- Model: B650M AORUS ELITE AX
- Socket: AM5
- Chipset: B650
- Form Factor: Micro-ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 6E
- Max Memory: 256 GB
- M.2 Slots: 2
- Ethernet: Realtek 2.5GbE
- Max Memory Speed: 8000 MT/s
- Primary PCIe Slot: PCIe 4.0
- SATA Ports: 4
- Bluetooth: Bluetooth 5.3
- Video Outputs: 1 × HDMI, 1 × DisplayPort
Platform
| Model | B650M AORUS ELITE AX |
|---|---|
| Socket | AM5 |
| Chipset | B650 |
| Form Factor | Micro-ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 4 |
| Max Memory | 256 GB |
| Max Memory Speed | 8000 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 4.0 |
|---|---|
| M.2 Slots | 2 |
| SATA Ports | 4 |
Connectivity
| Ethernet | Realtek 2.5GbE |
|---|---|
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Video Outputs | 1 × HDMI, 1 × DisplayPort |
