Product overview

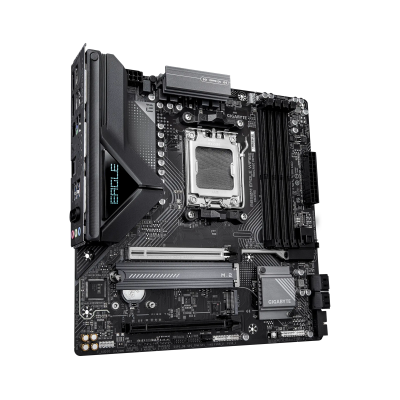

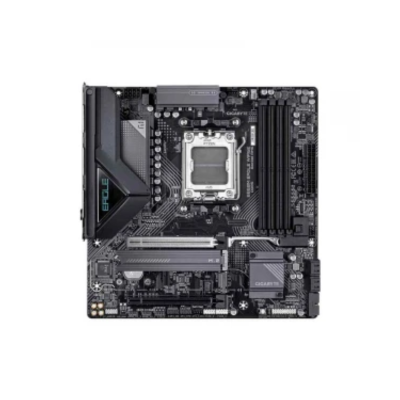

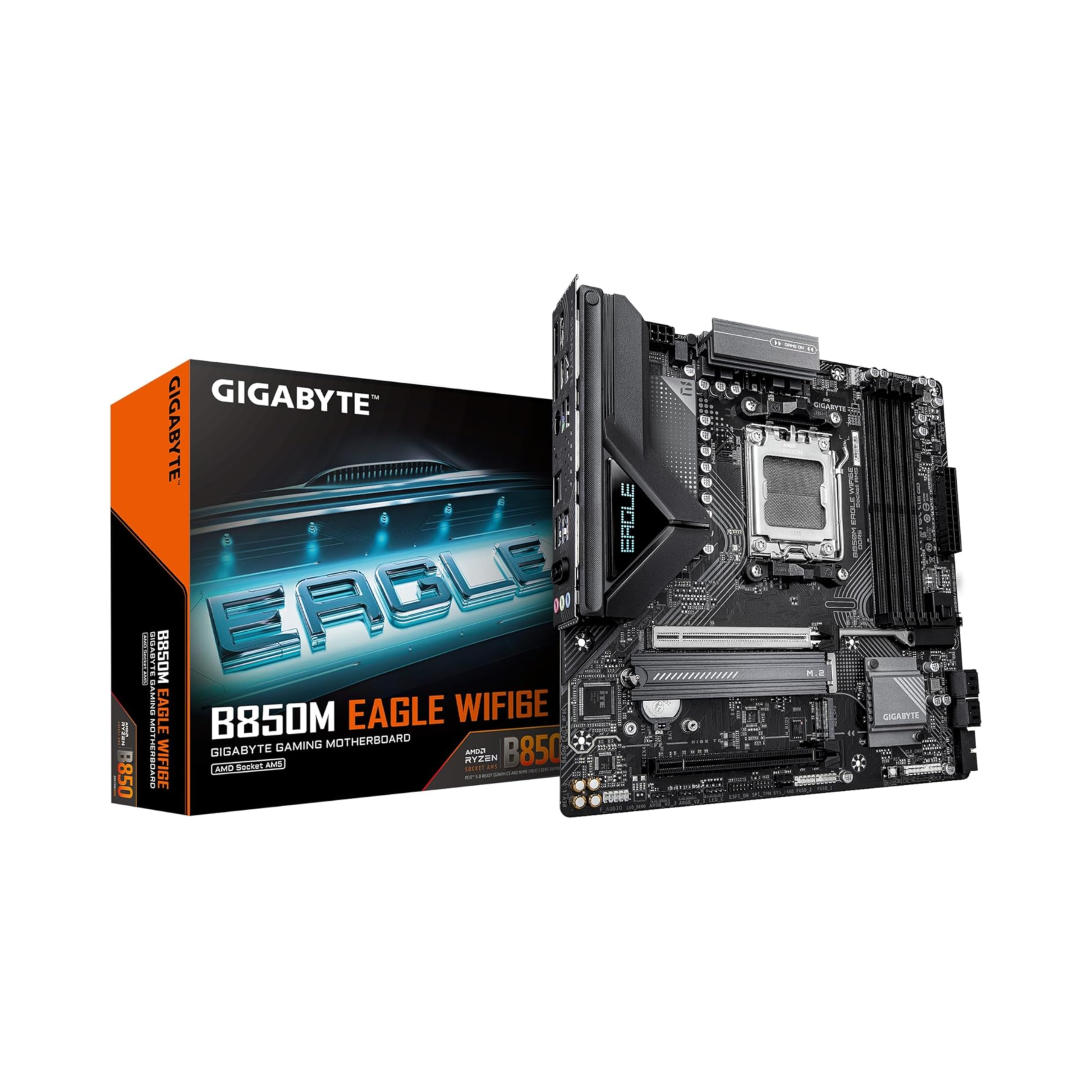

The GIGABYTE B850M EAGLE WIFI6E is a Micro-ATX motherboard for Socket AM5 on the AMD B850 chipset, supporting AMD Ryzen 9000, 8000 and 7000 series desktop processors.
Key features

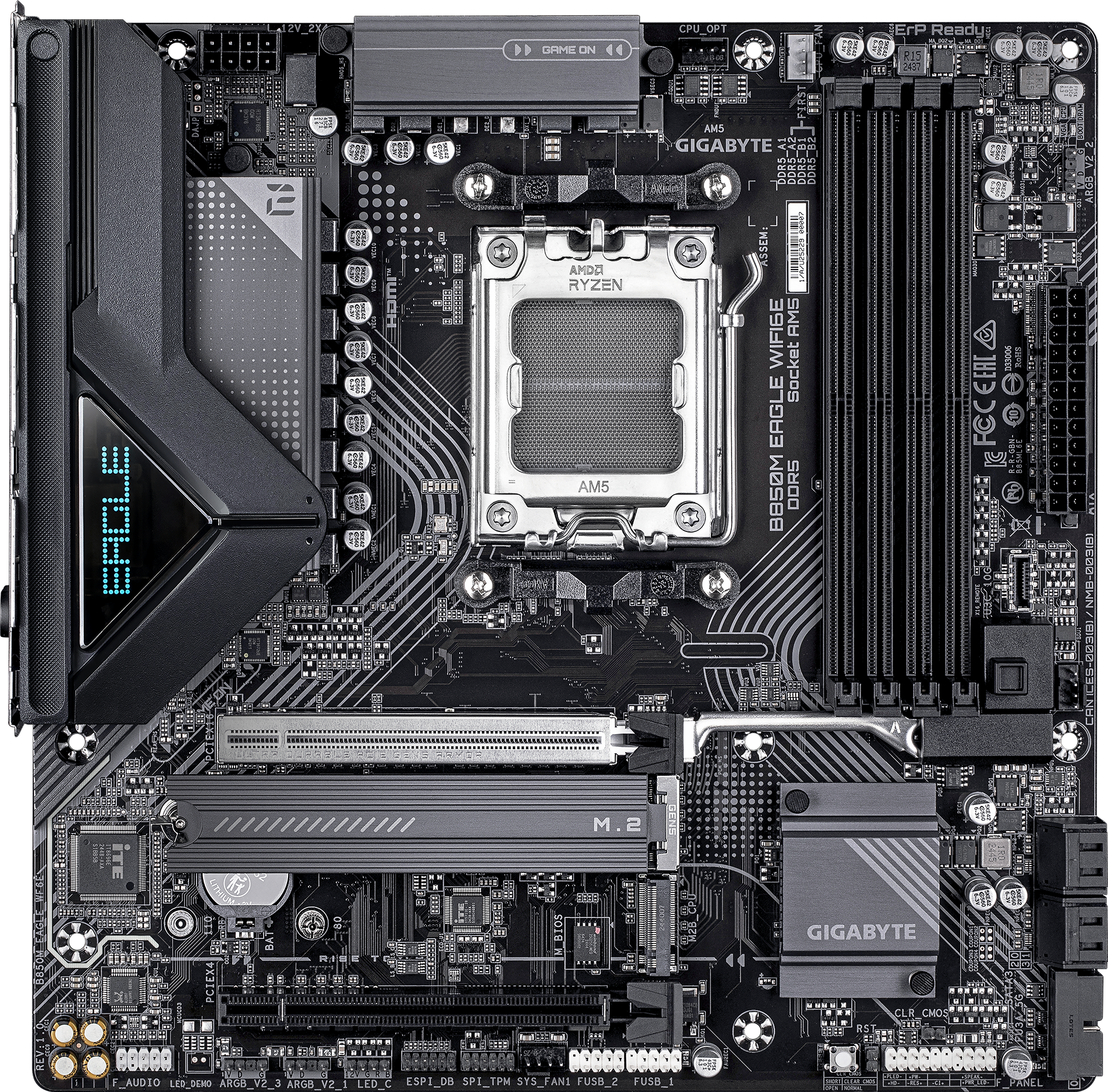

Four DDR5 DIMM slots support up to 256GB in dual-channel mode with speeds up to DDR5-8200 (OC), plus AMD EXPO and XMP profiles.

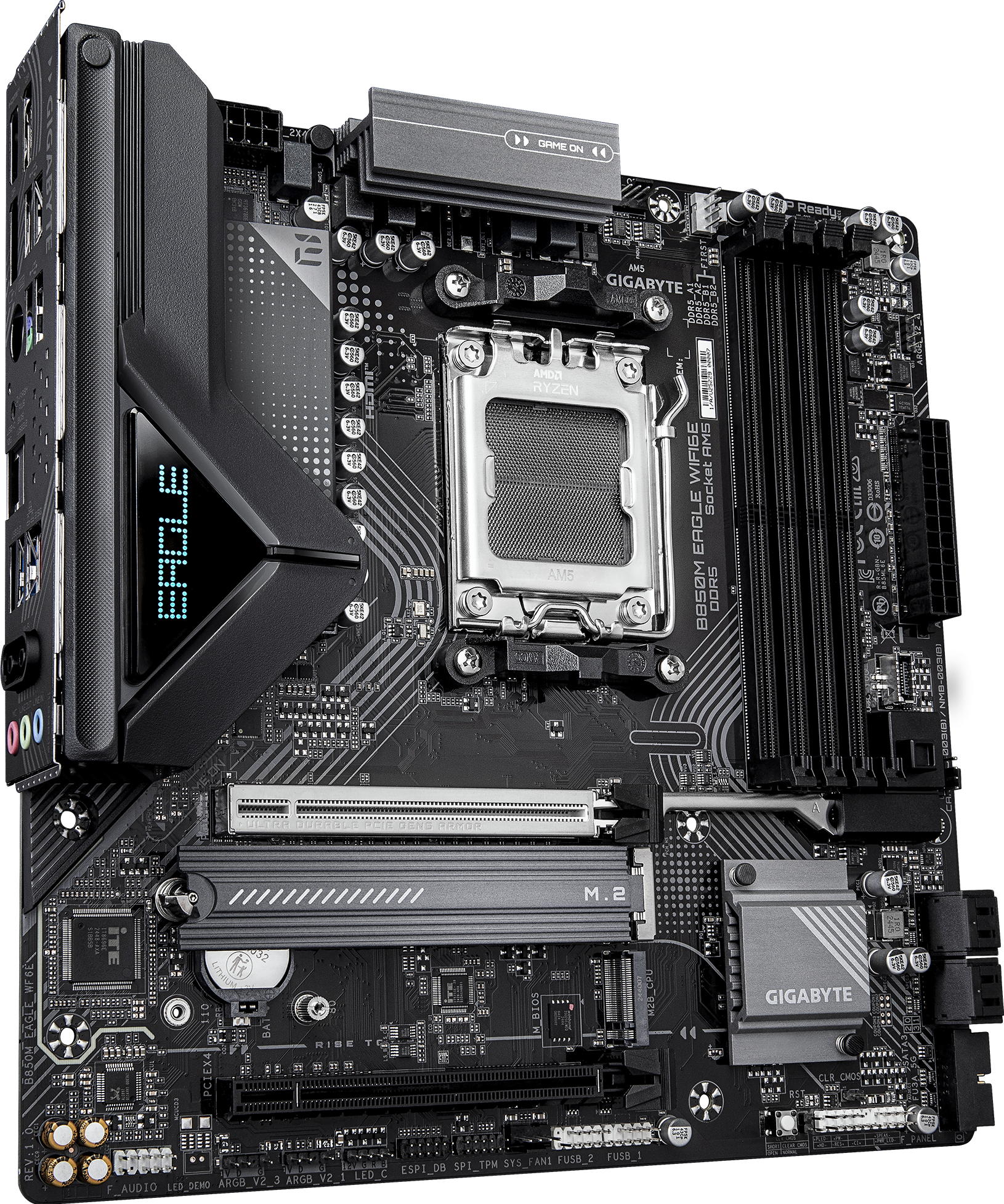

It has two CPU-connected M.2 slots: one supports PCIe 5.0 x4 SSDs with Ryzen 9000/7000 processors, and the other runs at PCIe 4.0 x4.
Networking is provided by a Realtek 2.5GbE LAN chip and a Realtek Wi-Fi 6E (RTL8852CE) module with Bluetooth 5.3.
Technical specifications
- Model: B850M EAGLE WIFI6E
- Socket: AM5
- Chipset: B850
- Form Factor: Micro-ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 6E
- Max Memory: 256 GB
- M.2 Slots: 2
- Ethernet: Realtek 2.5GbE
- Max Memory Speed: 8200 MT/s
- Primary PCIe Slot: PCIe 5.0
- SATA Ports: 4
- Bluetooth: Bluetooth 5.3

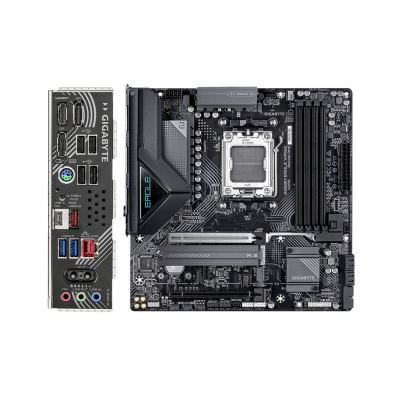

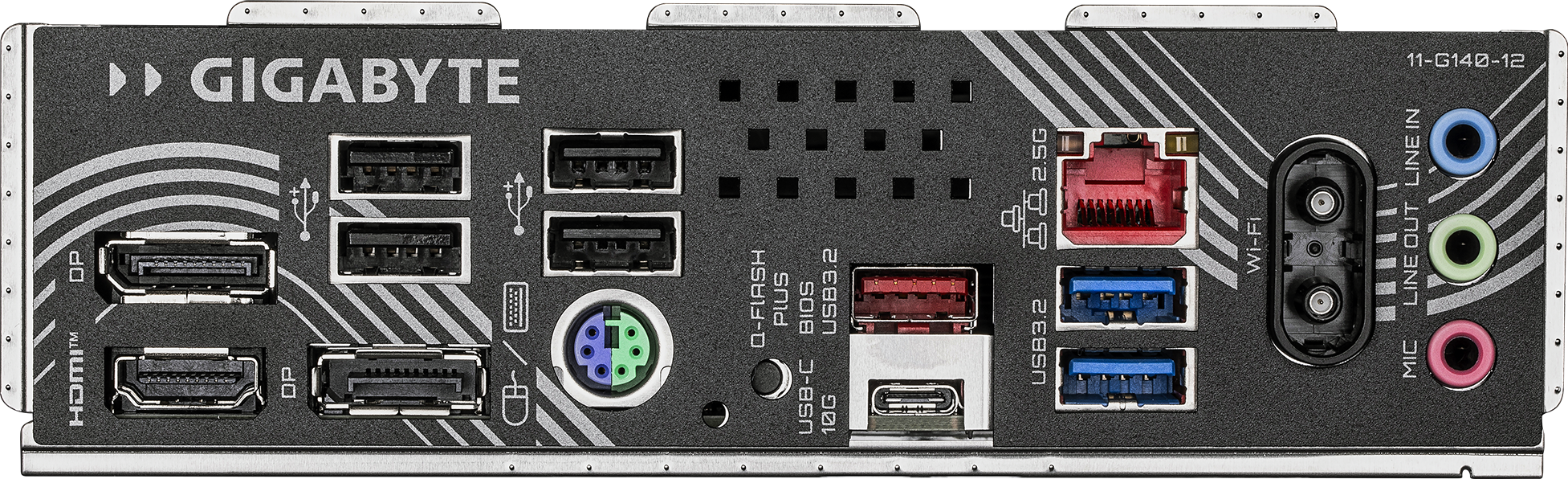

- Video Outputs: 1 × HDMI, 2 × DisplayPort
Platform
| Model | B850M EAGLE WIFI6E |
|---|---|
| Socket | AM5 |
| Chipset | B850 |
| Form Factor | Micro-ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 4 |
| Max Memory | 256 GB |
| Max Memory Speed | 8200 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 5.0 |
|---|---|
| M.2 Slots | 2 |
| SATA Ports | 4 |
Connectivity
| Ethernet | Realtek 2.5GbE |
|---|---|
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Video Outputs | 1 × HDMI, 2 × DisplayPort |
