Product overview

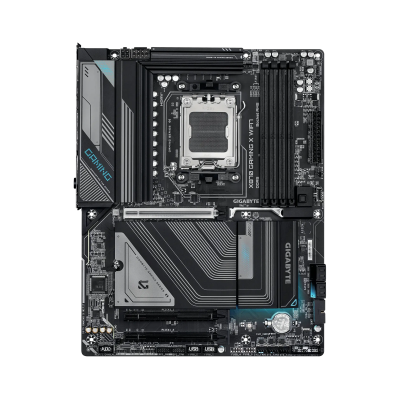

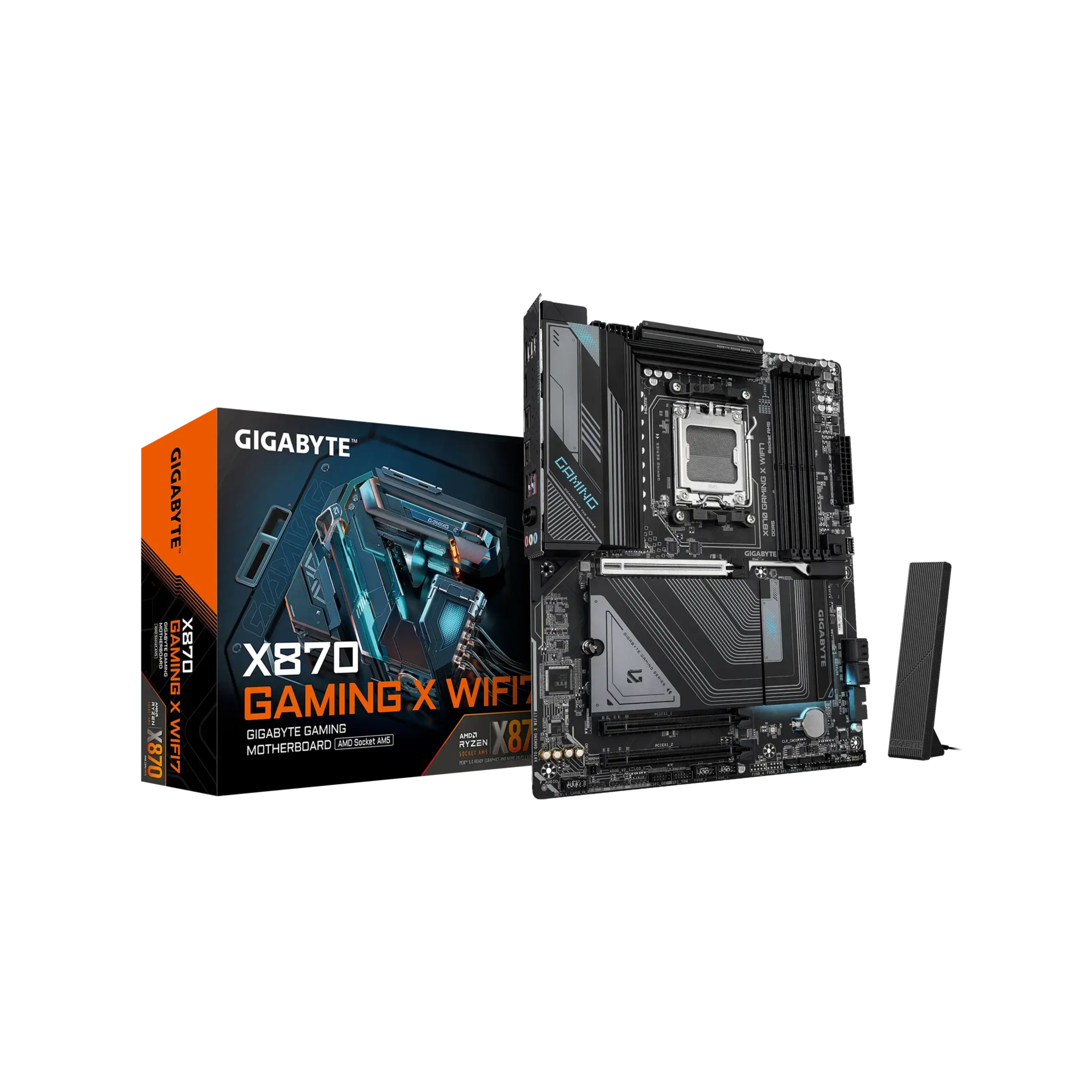

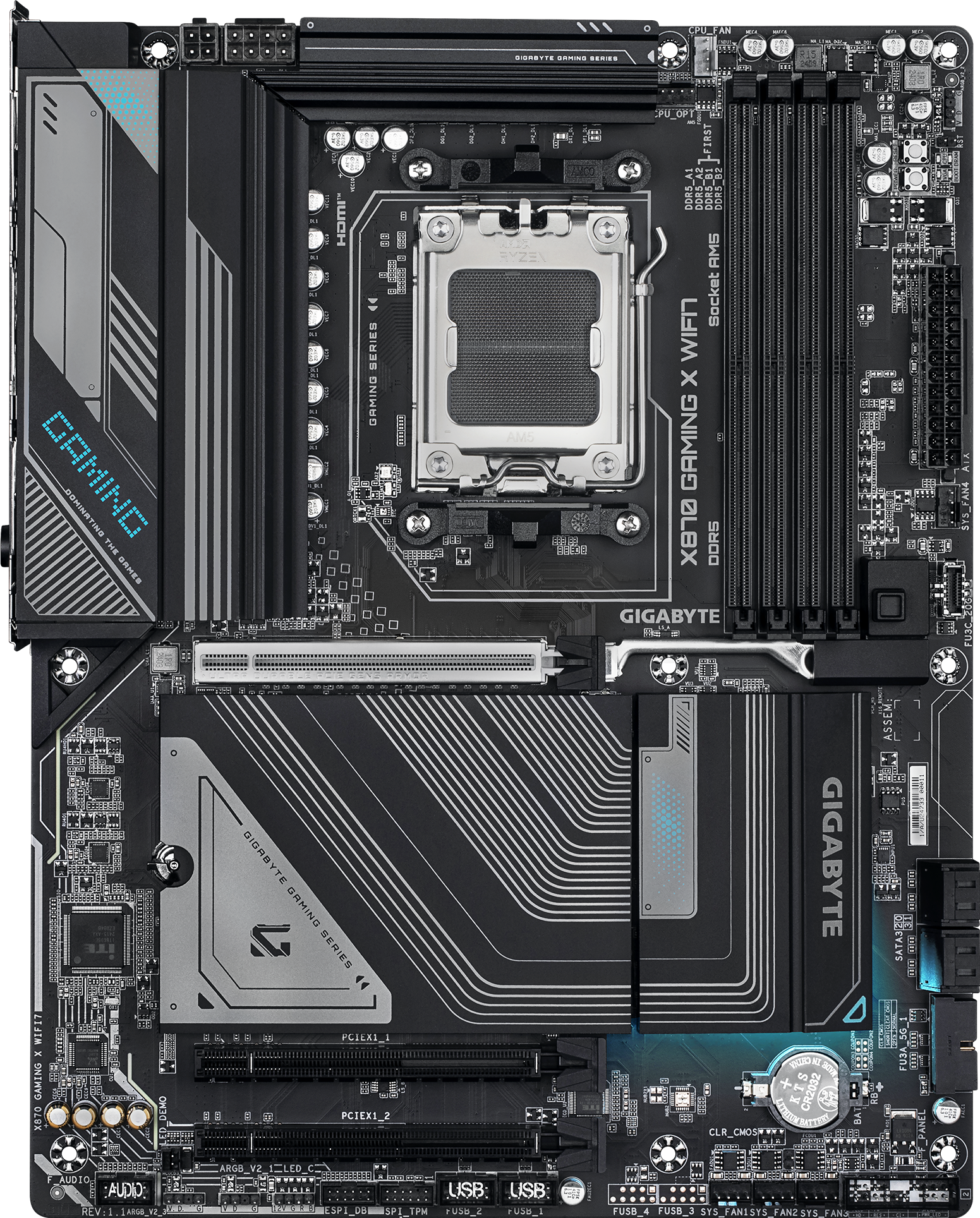

The GIGABYTE X870 GAMING X WIFI7 is an ATX motherboard for Socket AM5 on the AMD X870 chipset, supporting AMD Ryzen 9000, 8000 and 7000 series desktop processors.
Key features

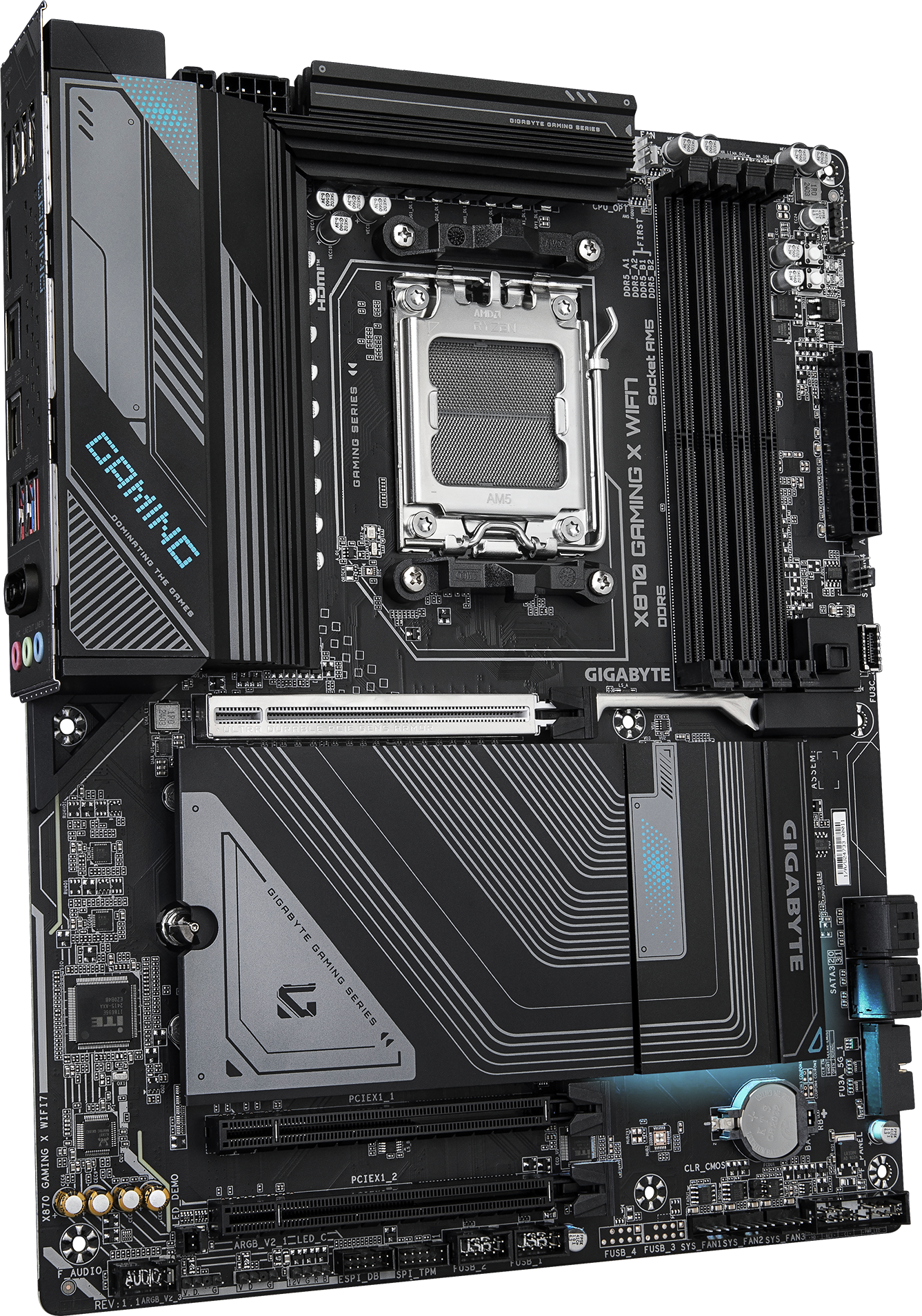

Four DDR5 DIMM slots support up to 256GB in dual-channel mode, with speeds up to DDR5-8200 (OC).
Storage is handled by three M.2 slots: the CPU-connected slot supports PCIe 5.0 x4 SSDs with Ryzen 9000/7000 processors, and two chipset slots run at PCIe 4.0 (they share bandwidth with each other).
Networking includes a Realtek 2.5GbE LAN chip and Wi-Fi 7 with Bluetooth 5.4 on the 2.4, 5 and 6GHz bands.
Technical specifications
- Model: X870 GAMING X WIFI7 (Rev. 1.x)
- Socket: AM5
- Chipset: X870
- Form Factor: ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 7
- Max Memory: 256 GB
- M.2 Slots: 3
- Ethernet: Realtek 2.5GbE
- Max Memory Speed: 8200 MT/s
- Primary PCIe Slot: PCIe 5.0
- SATA Ports: 4
- Bluetooth: Bluetooth 5.4

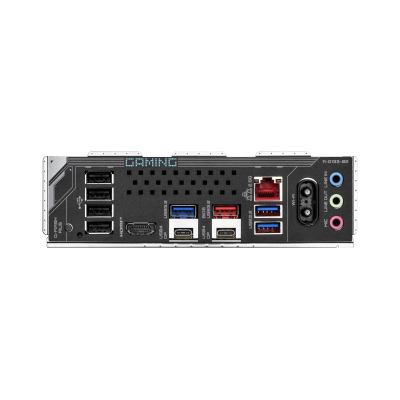

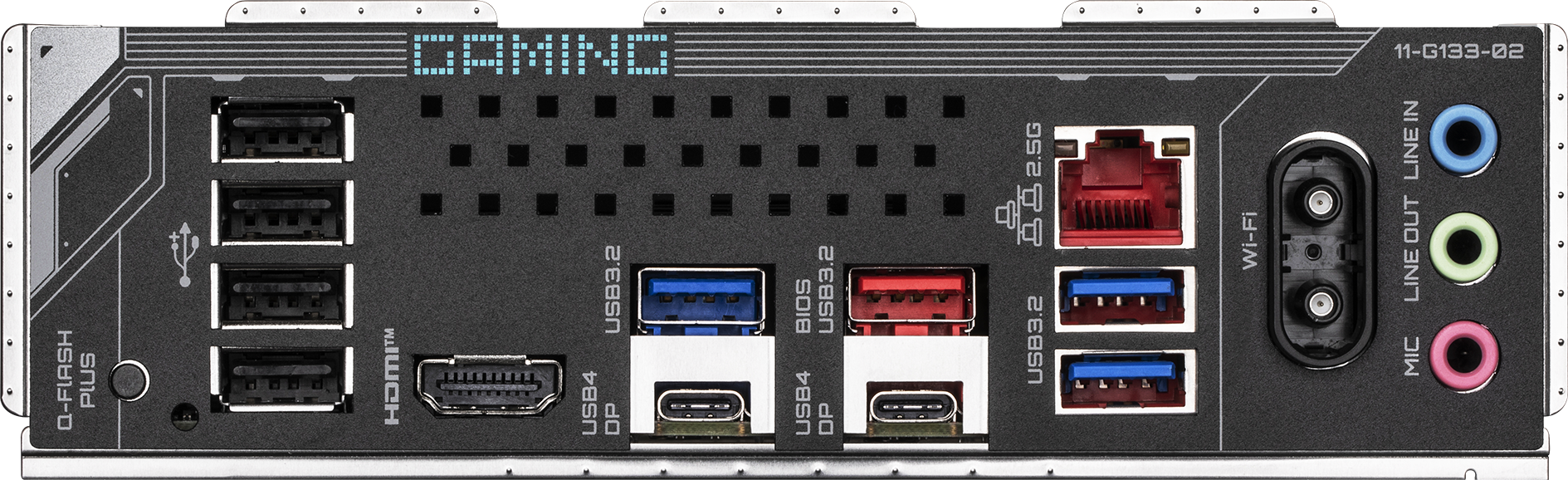

- Video Outputs: 1 × HDMI, 2 × USB4 Type-C (DisplayPort)
Platform
| Model | X870 GAMING X WIFI7 (Rev. 1.x) |
|---|---|
| Socket | AM5 |
| Chipset | X870 |
| Form Factor | ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 4 |
| Max Memory | 256 GB |
| Max Memory Speed | 8200 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 5.0 |
|---|---|
| M.2 Slots | 3 |
| SATA Ports | 4 |
Connectivity
| Ethernet | Realtek 2.5GbE |
|---|---|
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| Video Outputs | 1 × HDMI, 2 × USB4 Type-C (DisplayPort) |
