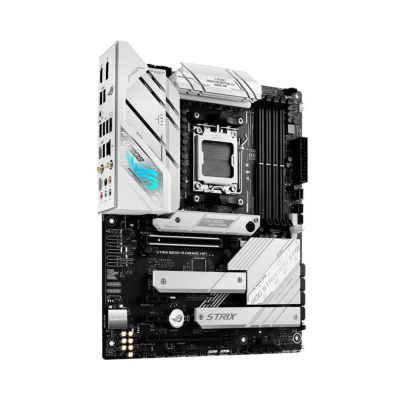

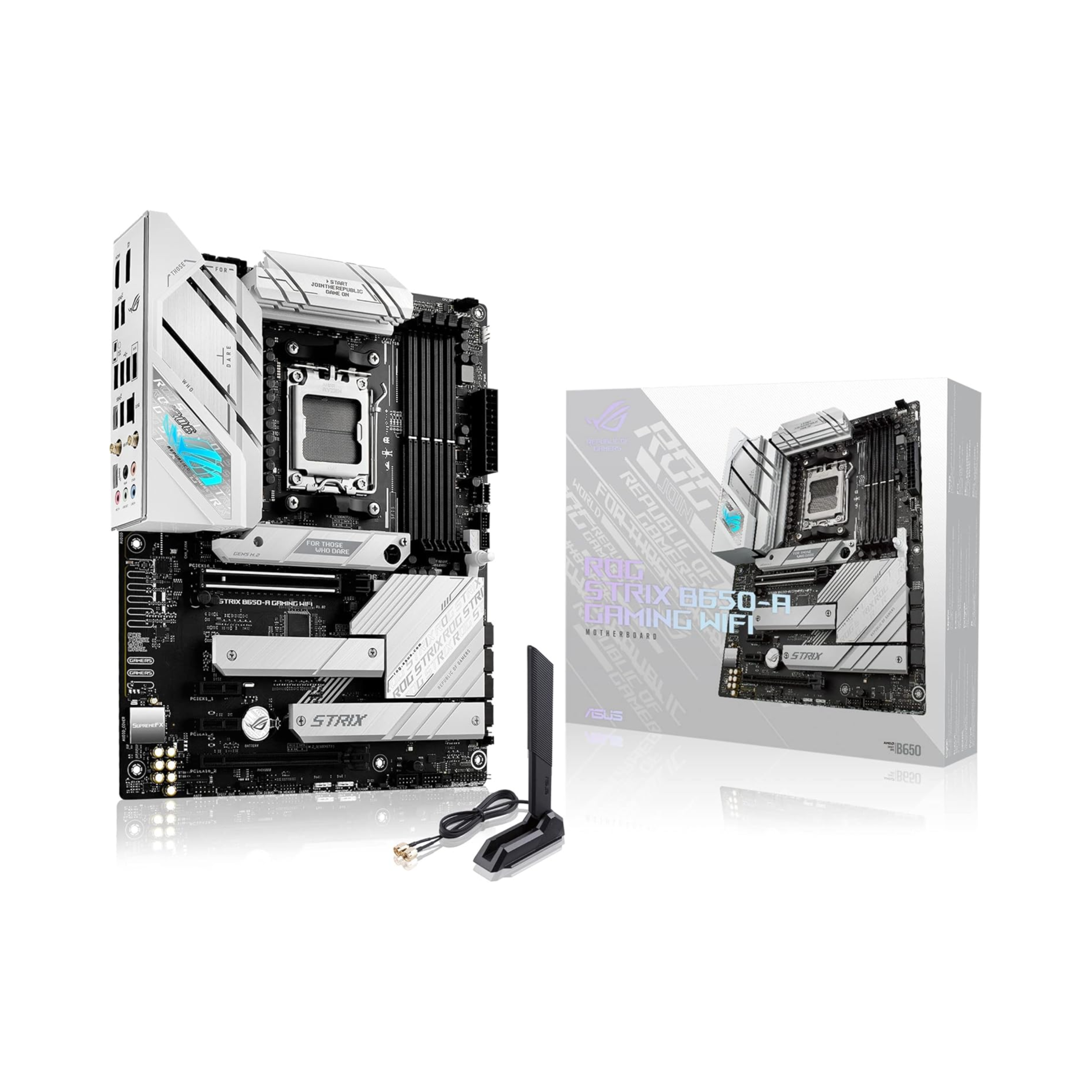

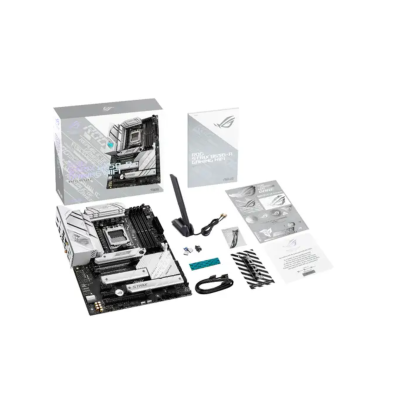

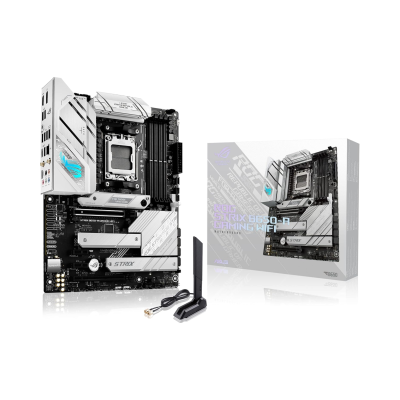

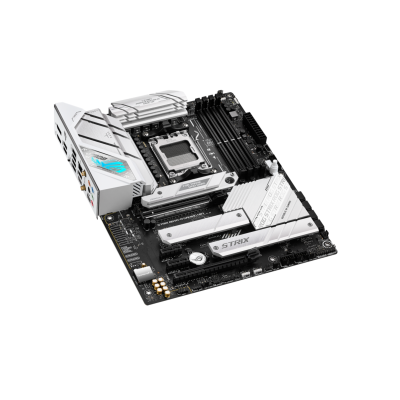

ASUS ROG STRIX B650-A GAMING WIFI AM5 ATX Motherboard
WHITE ANGEL COMPUTER no longer sells this product. Its specifications and photos stay here for reference.
Specifications
| Model | ROG STRIX B650-A GAMING WIFI |
|---|---|
| Socket | AM5 |
| Chipset | B650 |
| Form Factor | ATX |
| RAM Type | DDR5 |
| RAM Slots | 4 |
| Max Memory | 192 GB |
| Max Memory Speed | 7600 MT/s |
| Primary PCIe Slot | PCIe 4.0 |
| M.2 Slots | 3 |
| SATA Ports | 4 |
| Ethernet | Intel 2.5Gb Ethernet, ASUS LANGuard |
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.2 |
| Rear USB | 1 x USB 3.2 Gen 2×2 (20Gbps) Type-C, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Video Outputs | 1 x DisplayPort 1.4 + 1 x HDMI 2.1 Port (4K @ 60Hz) |
Original listing description
The text below is the description from when this product was on sale; prices, stock and delivery details in it no longer apply.
Product overview
The ASUS ROG STRIX B650-A GAMING WIFI is an ATX motherboard for Socket AM5 on the AMD B650 chipset, supporting AMD Ryzen 9000, 8000 and 7000 series desktop processors.
Key features
Four DDR5 DIMM slots support up to 192GB, with speeds up to DDR5-7600+ (OC), AMD EXPO and ASUS OptiMem II.
It has three M.2 slots: with Ryzen 9000/7000 processors the first runs at PCIe 5.0 x4 and the second at PCIe 4.0 x4, and the chipset slot supports PCIe 4.0 x4 (shared with the chipset x16 slot). There are also four SATA 6Gb/s ports, a PCIe 4.0 x16 slot, a second x16-size slot (x4 mode) and two PCIe 4.0 x1 slots.
Networking includes Intel 2.5Gb Ethernet with ASUS LANGuard and 2x2 Wi-Fi 6E with Bluetooth 5.2. DisplayPort 1.4 and HDMI 2.1 outputs are available for processors with integrated graphics.
Audio uses the ROG SupremeFX ALC4080 codec with a Savitech SV3H712 amplifier, rated for 120 dB SNR playback.
Technical specifications
- Model: ROG STRIX B650-A GAMING WIFI
- Socket: AM5
- Chipset: B650
- Form Factor: ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 6E
- Max Memory: 192 GB
- M.2 Slots: 3
- Ethernet: Intel 2.5Gb Ethernet, ASUS LANGuard
- Max Memory Speed: 7600 MT/s
- SATA Ports: 4
- Bluetooth: Bluetooth 5.2
