Product overview

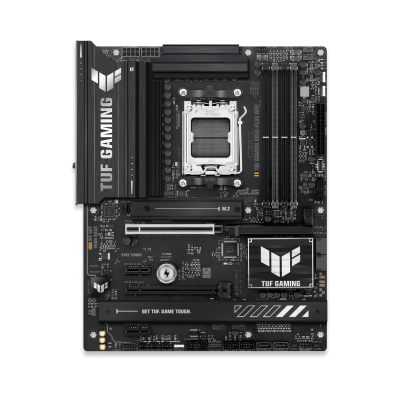

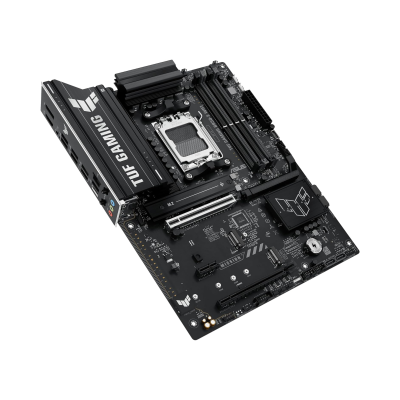

The ASUS TUF GAMING B850-E WIFI is an ATX motherboard for Socket AM5 on the AMD B850 chipset, supporting AMD Ryzen 9000, 8000 and 7000 series desktop processors.
Key features
Four DDR5 DIMM slots support up to 256GB, with speeds up to 8000+ MT/s (OC), AMD EXPO and ASUS Enhanced Memory Profile.
With Ryzen 9000 or 7000 processors, the main x16 slot runs at PCIe 5.0 and the first M.2 slot supports PCIe 5.0 x4. In total there are three M.2 slots (two CPU-connected, one from the chipset at PCIe 4.0 x4, which also accepts 22110 drives), four SATA 6Gb/s ports, plus an extra PCIe 4.0 x16 slot (x1 mode) and a PCIe 4.0 x1 slot.
Connectivity includes Realtek 2.5Gb Ethernet with TUF LANGuard, 2x2 Wi-Fi 6E with Bluetooth 5.3, and DisplayPort 1.4 and HDMI 2.1 outputs for processors with integrated graphics.
Audio uses a Realtek 7.1 surround codec with audio shielding and premium capacitors.
Technical specifications
- Model: TUF GAMING B850-E WIFI
- Socket: AM5
- Chipset: B850
- Form Factor: ATX
- RAM Type: DDR5
- RAM Slots: 4
- Wi-Fi: Wi-Fi 6E
- Max Memory: 256 GB
- M.2 Slots: 3
- Ethernet: Realtek 2.5Gb Ethernet, TUF LANGuard
- Max Memory Speed: 8000 MT/s
- Primary PCIe Slot: PCIe 5.0
- SATA Ports: 4
- Bluetooth: Bluetooth 5.3
- Video Outputs: 1 × HDMI, 1 × DisplayPort
Platform
| Model | TUF GAMING B850-E WIFI |
|---|---|
| Socket | AM5 |
| Chipset | B850 |
| Form Factor | ATX |
Memory
| RAM Type | DDR5 |
|---|---|
| RAM Slots | 4 |
| Max Memory | 256 GB |
| Max Memory Speed | 8000 MT/s |
Expansion & storage
| Primary PCIe Slot | PCIe 5.0 |
|---|---|
| M.2 Slots | 3 |
| SATA Ports | 4 |
Connectivity
| Ethernet | Realtek 2.5Gb Ethernet, TUF LANGuard |
|---|---|
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |

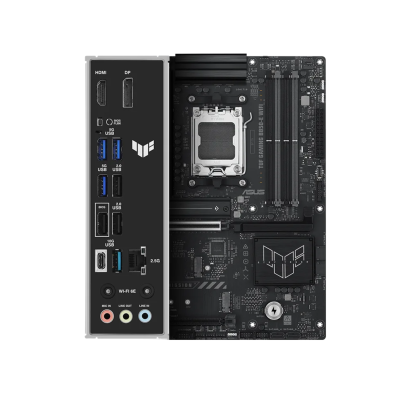

| Rear USB | 2 x USB 10Gbps (1 x Type-A + 1 x Type-C), 3 x USB 5Gbps Type-A, 3 x USB 2.0 |
| Video Outputs | 1 × HDMI, 1 × DisplayPort |
